Active Control Engine Mount System: Wiring Diagram

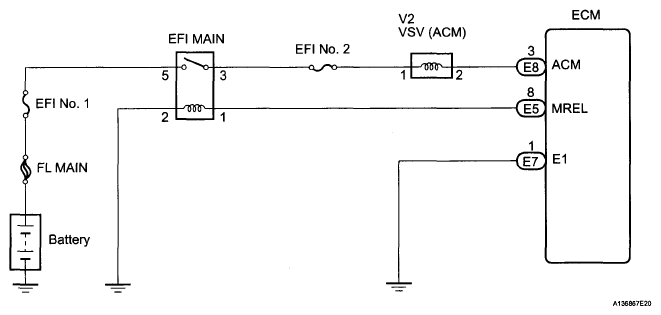

Fig 1: Active Control Engine Mount System - Wiring Diagram
G05840284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
