Fuel Pump: Components

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 3)
G05271543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Pump Replacement Components (2 Of 3)
G05271544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

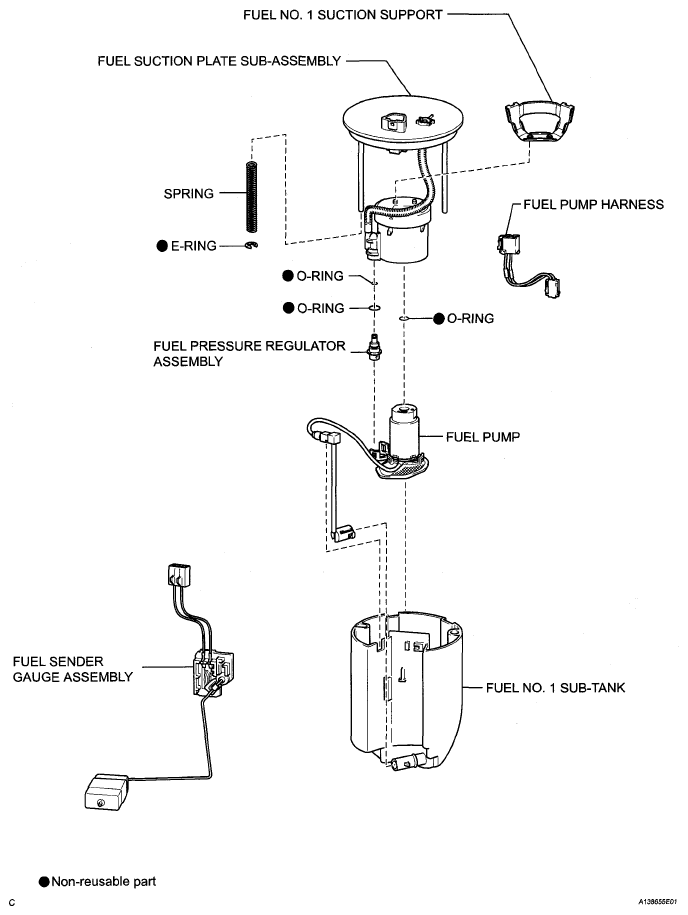

Fig 3: Identifying Fuel Pump Replacement Components (3 Of 3)
G05271545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
