Power Seat Control Module

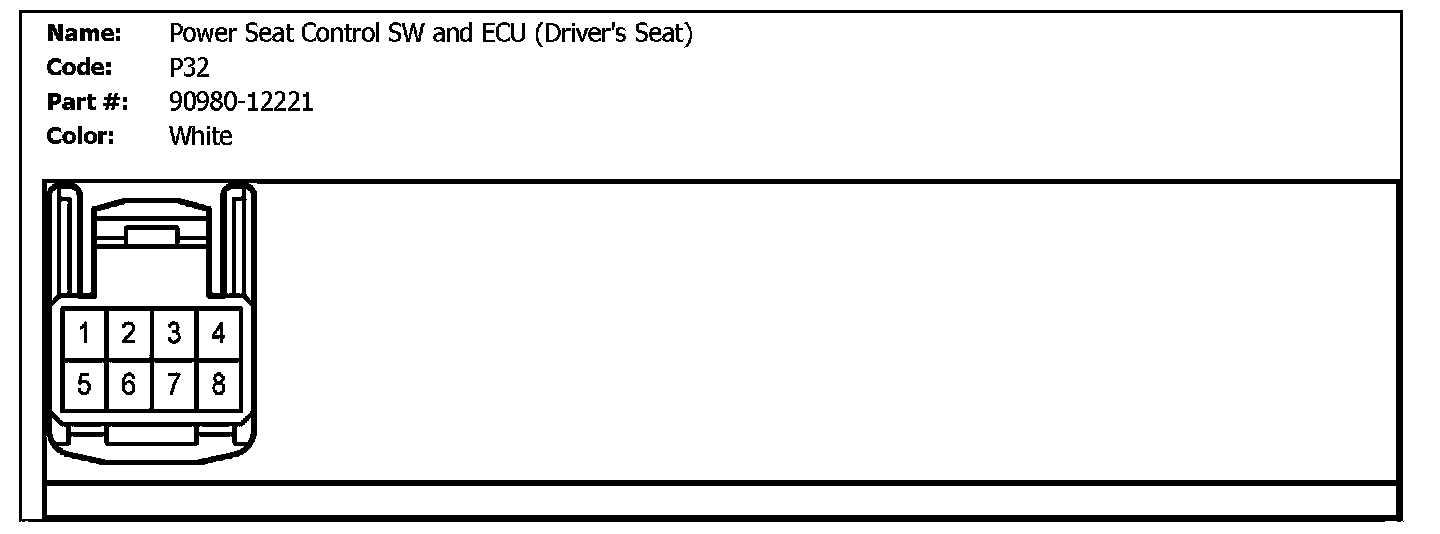

P32 (Power Seat Control SW And ECU (Driver's Seat)):

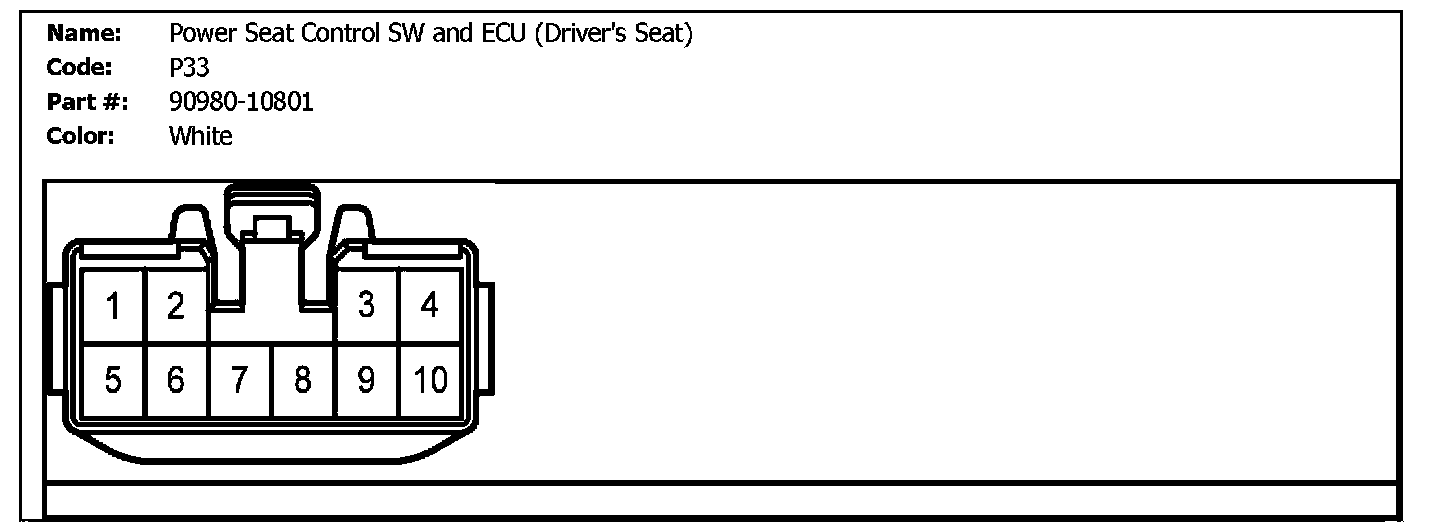

P33 (Power Seat Control SW And ECU (Driver's Seat)):
