Mirror Heater without Memory: Notes

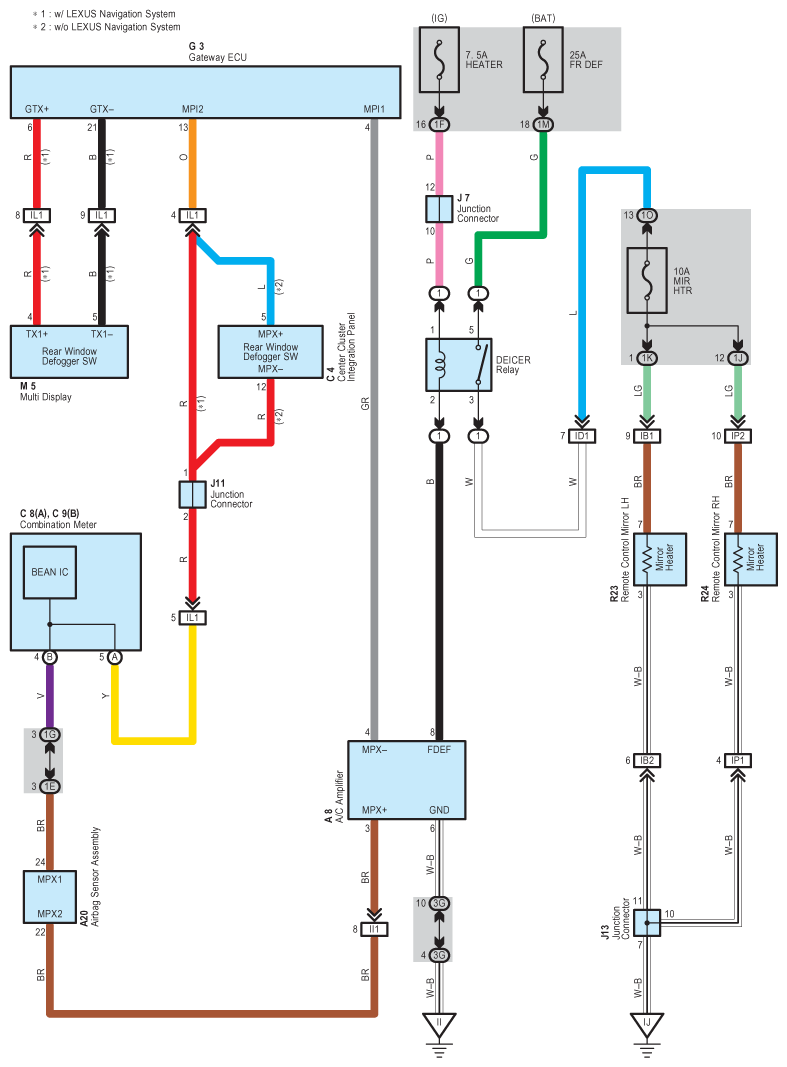

Fig 1: Mirror Heater Without Memory - Circuit Diagram
G07609987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
