Rear Seat Inner Belt Assembly: Components

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05279753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

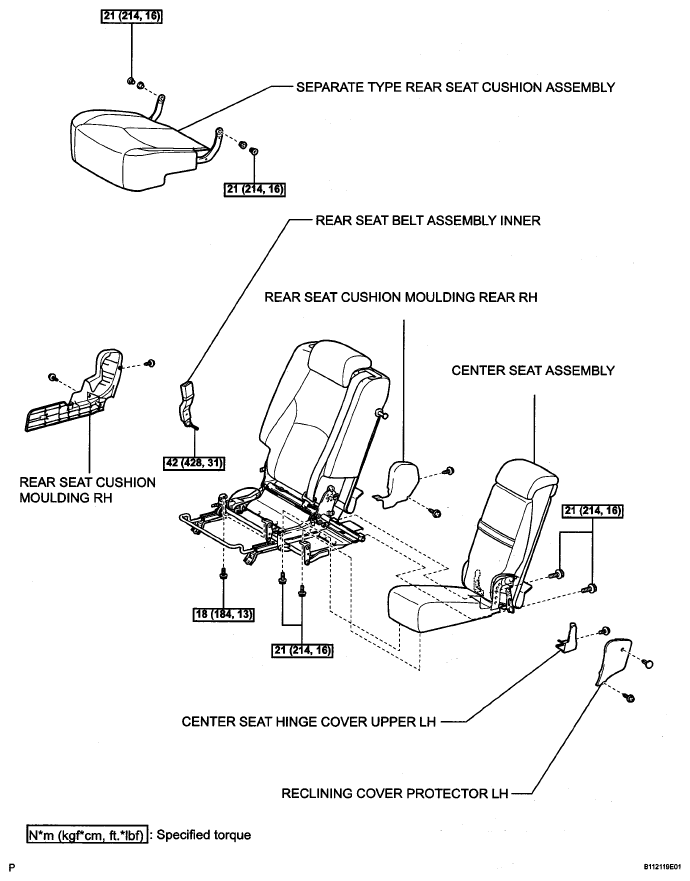

Fig 2: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 3)
G05279754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

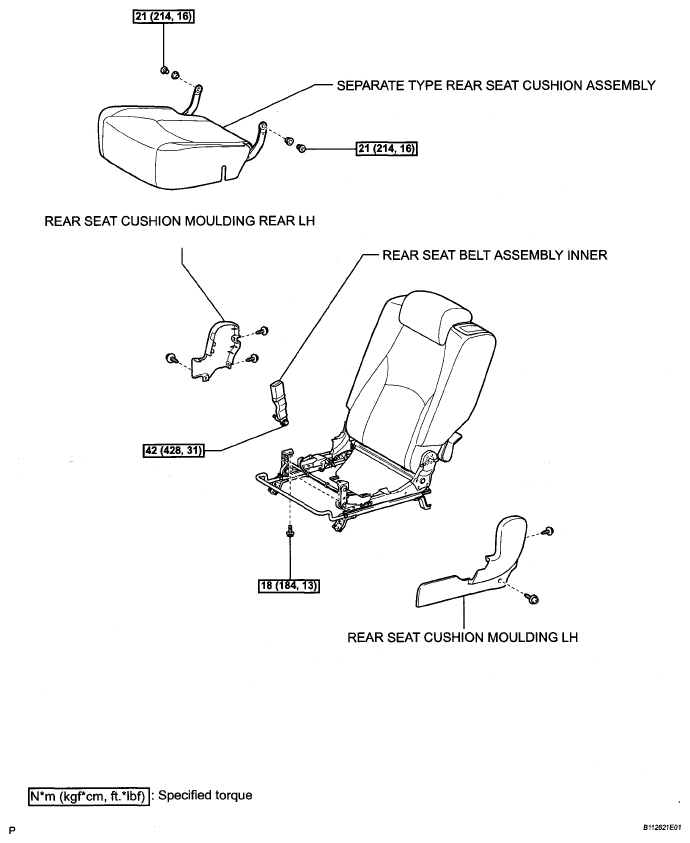

Fig 3: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (3 Of 3)
G05279755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
