Key Reminder: Notes

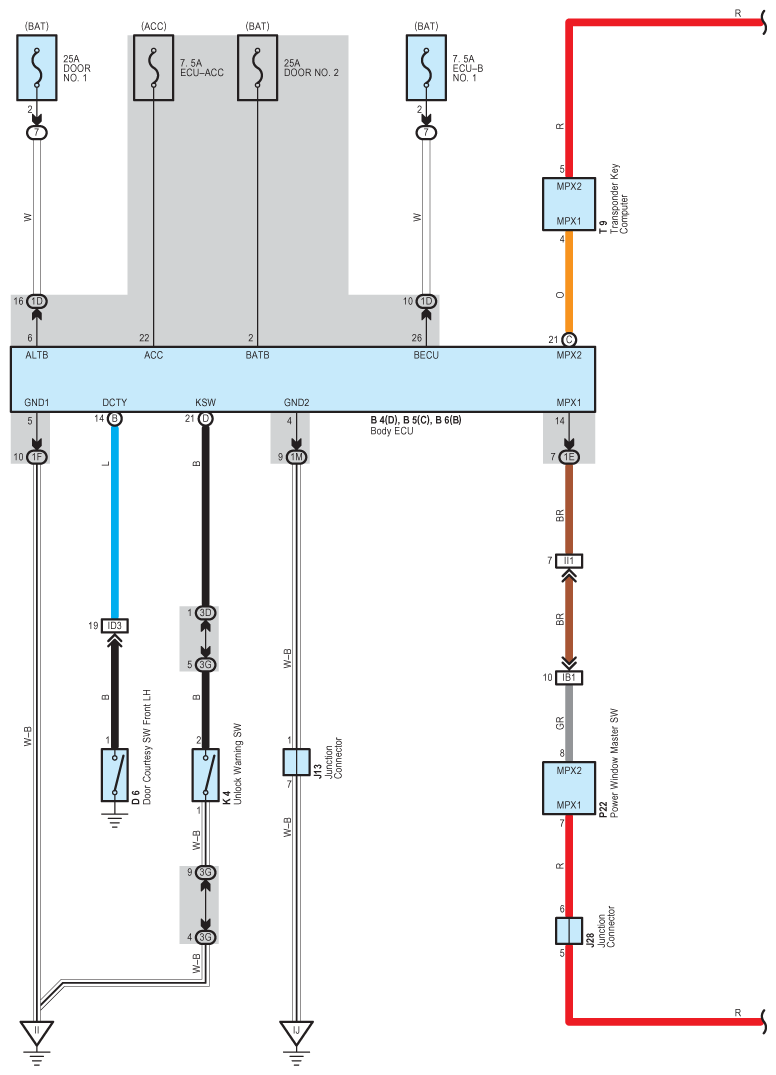

Fig 1: Key Reminder - Circuit Diagram (1 Of 2)
G07609914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

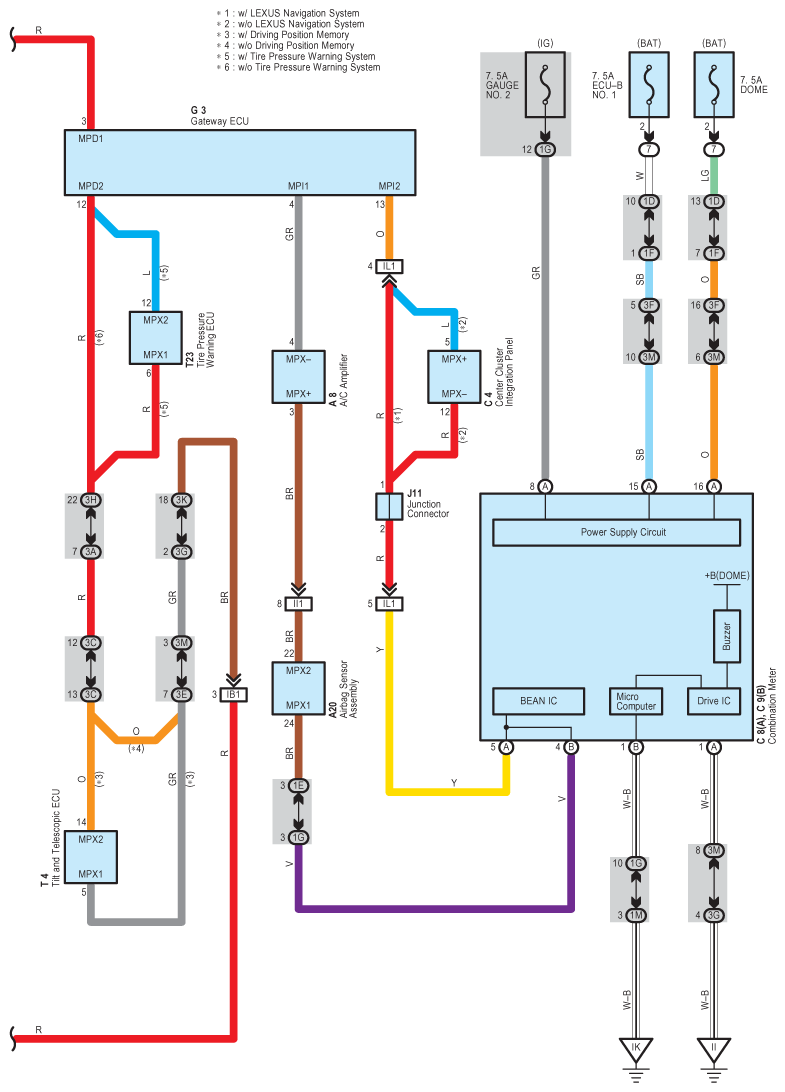

Fig 2: Key Reminder - Circuit Diagram (2 Of 2)
G07609915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
