Convertible Top Control Module

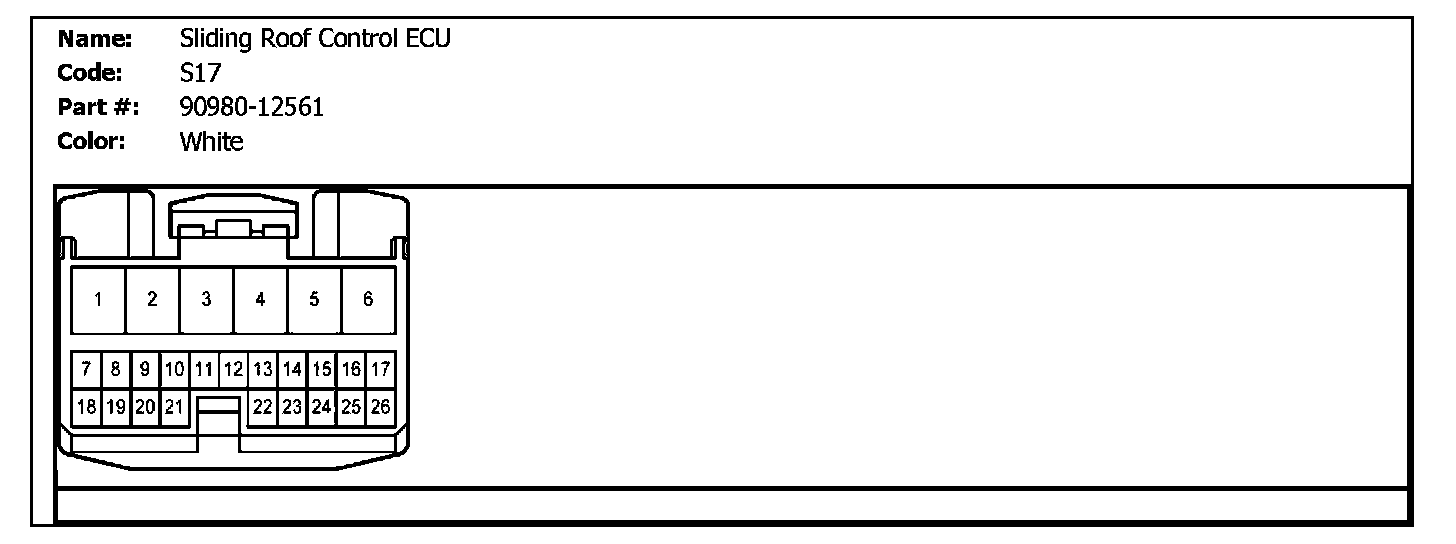

S17 (Sliding Roof Control ECU):

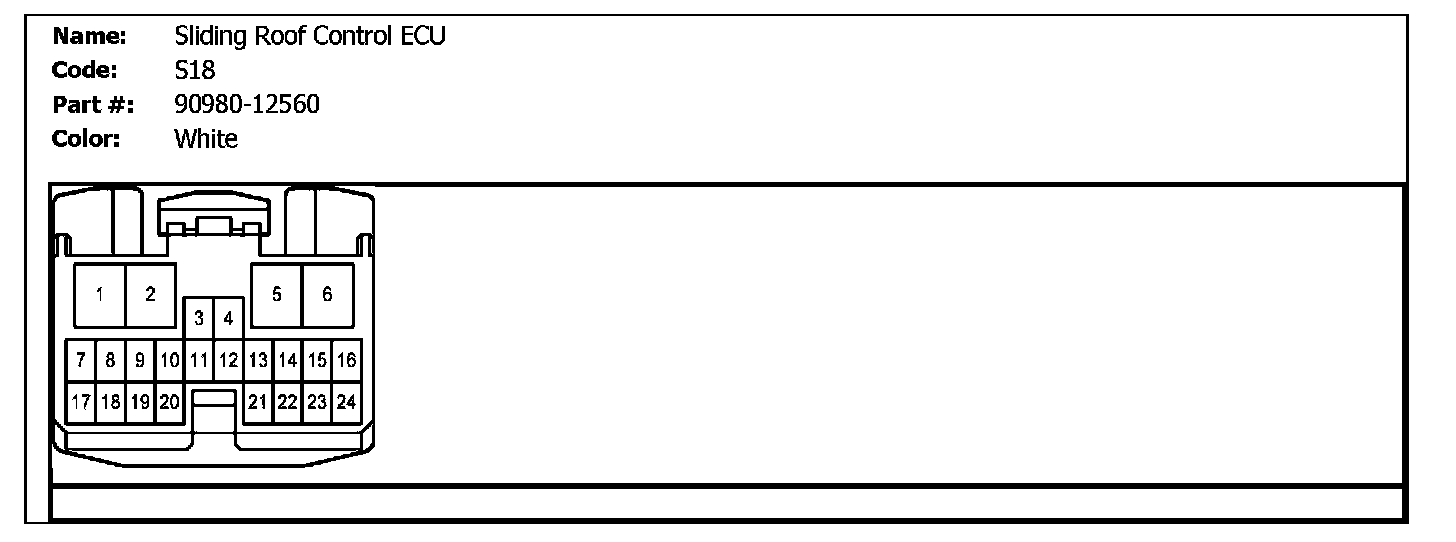

S18 (Sliding Roof Control ECU):

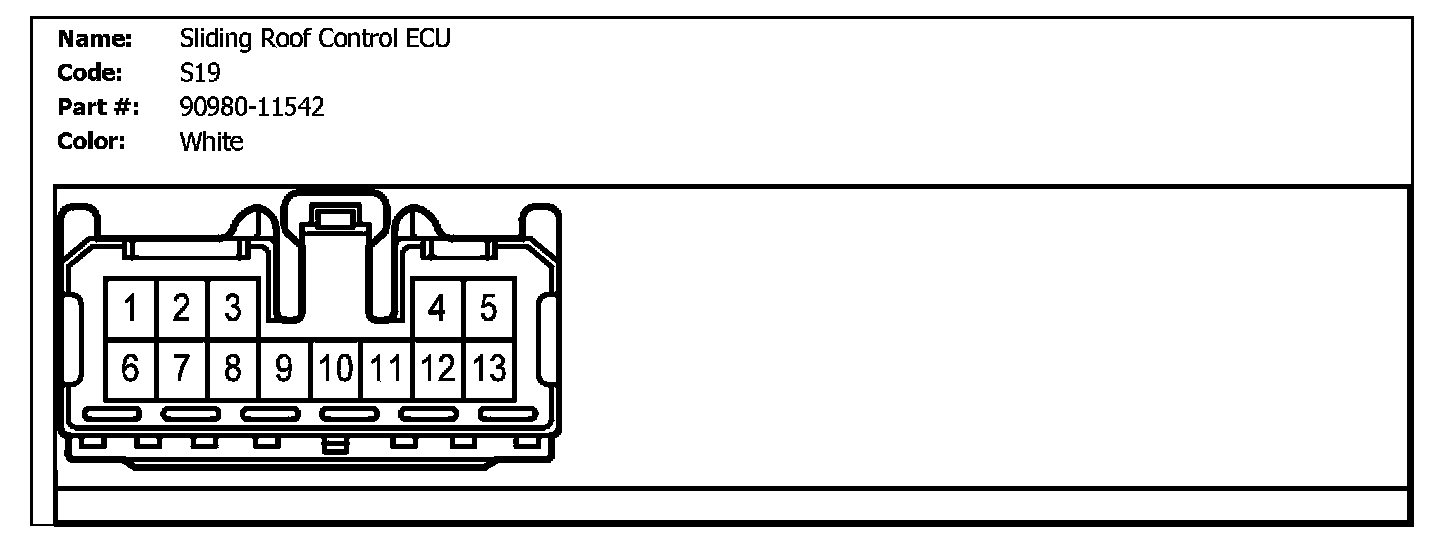

S19 (Sliding Roof Control ECU):

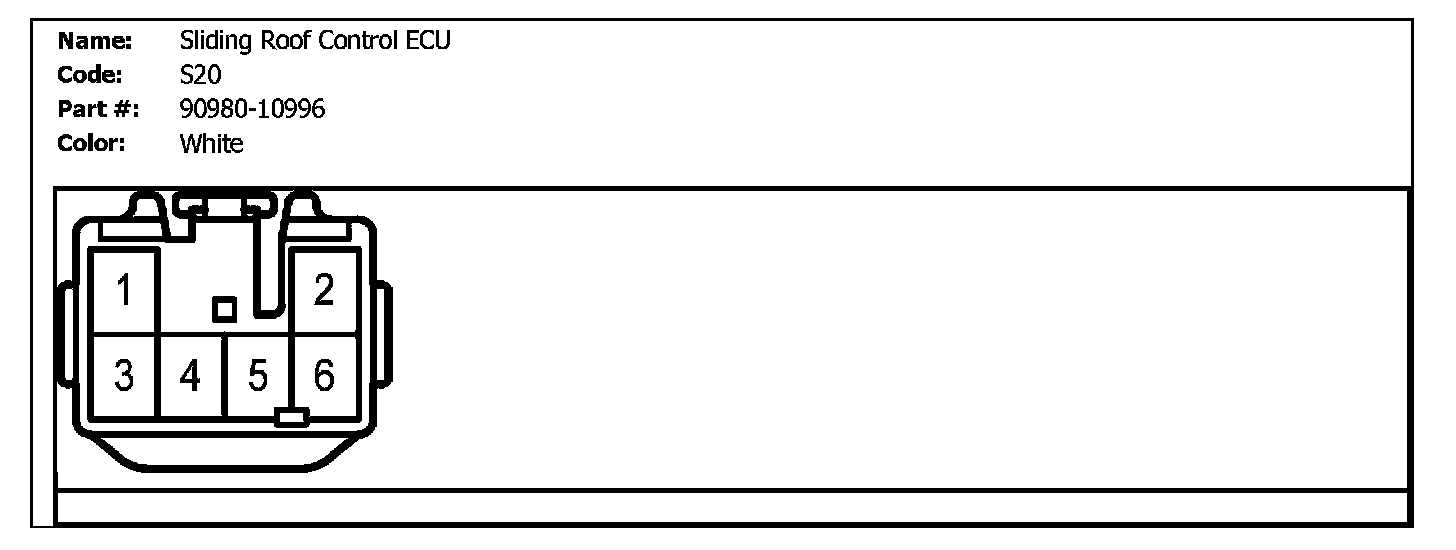

S20 (Sliding Roof Control ECU):

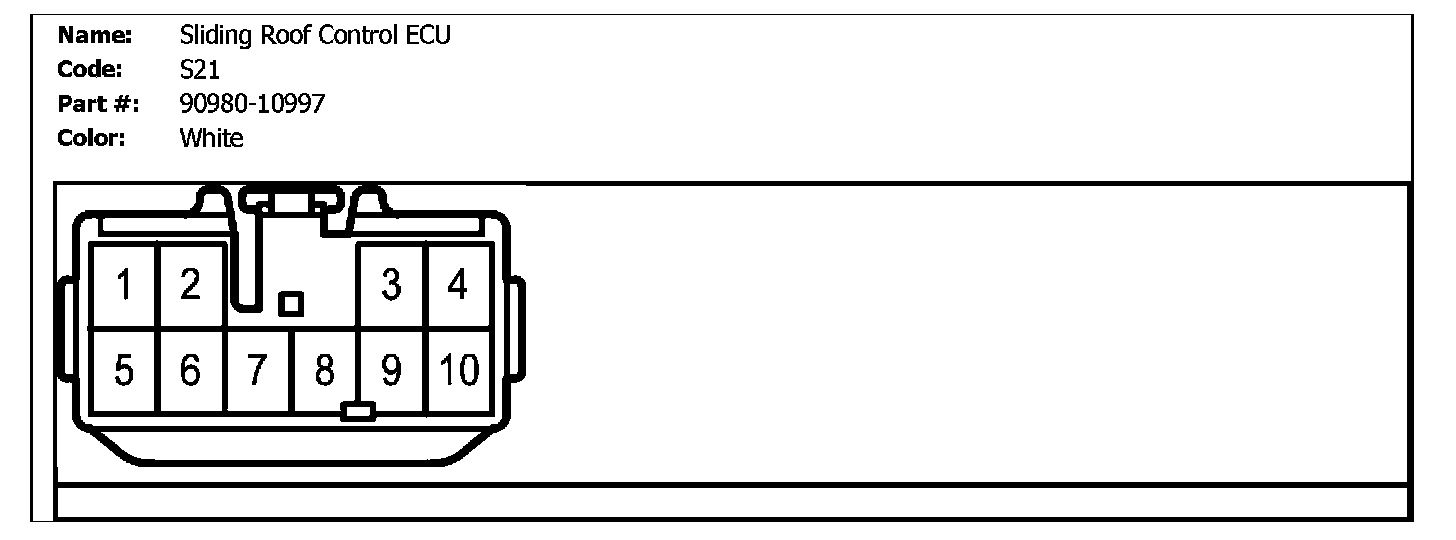

S21 (Sliding Roof Control ECU):
