Fuse Block

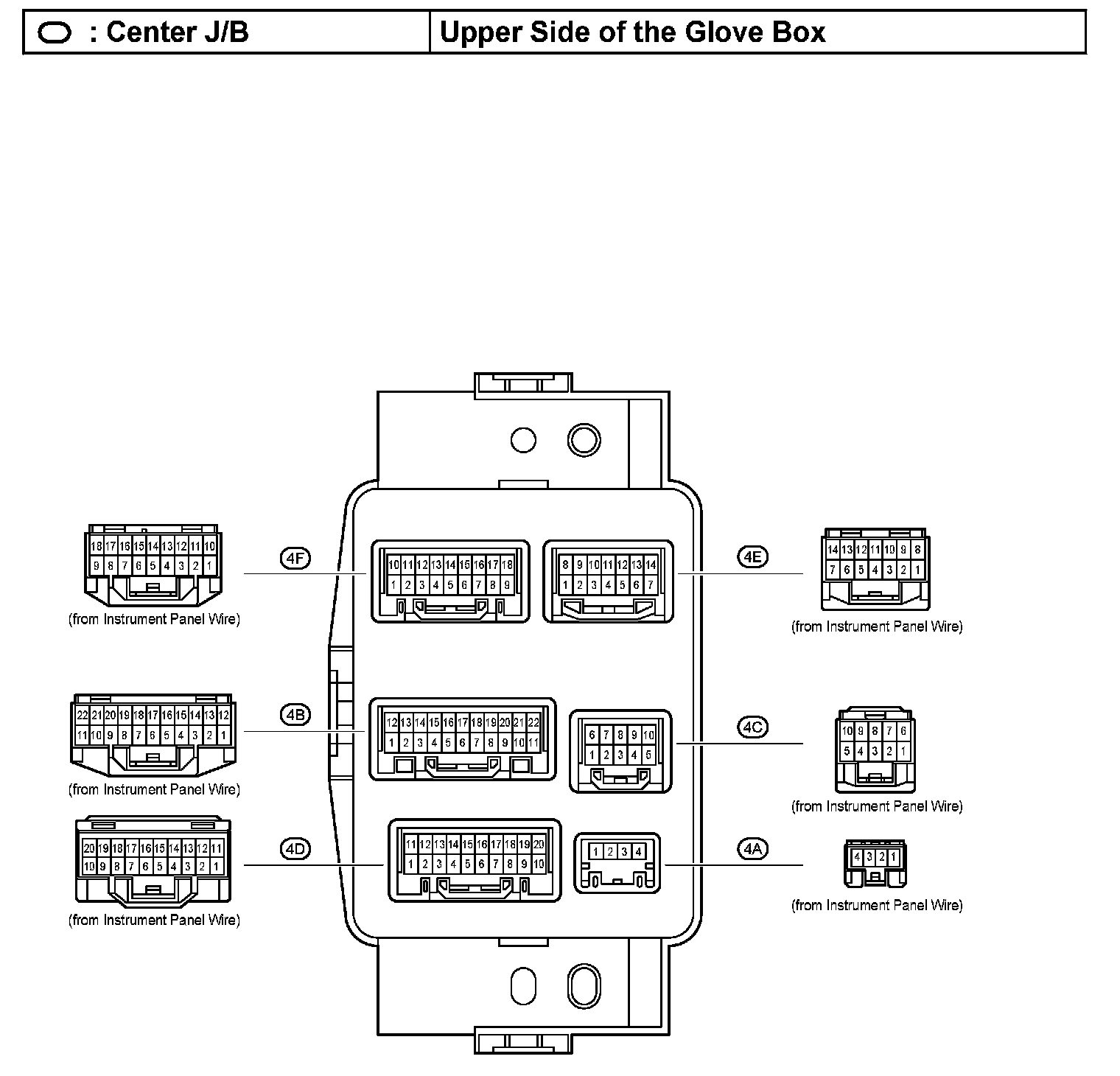

Center J/B - Upper Side Of The Glove Box:

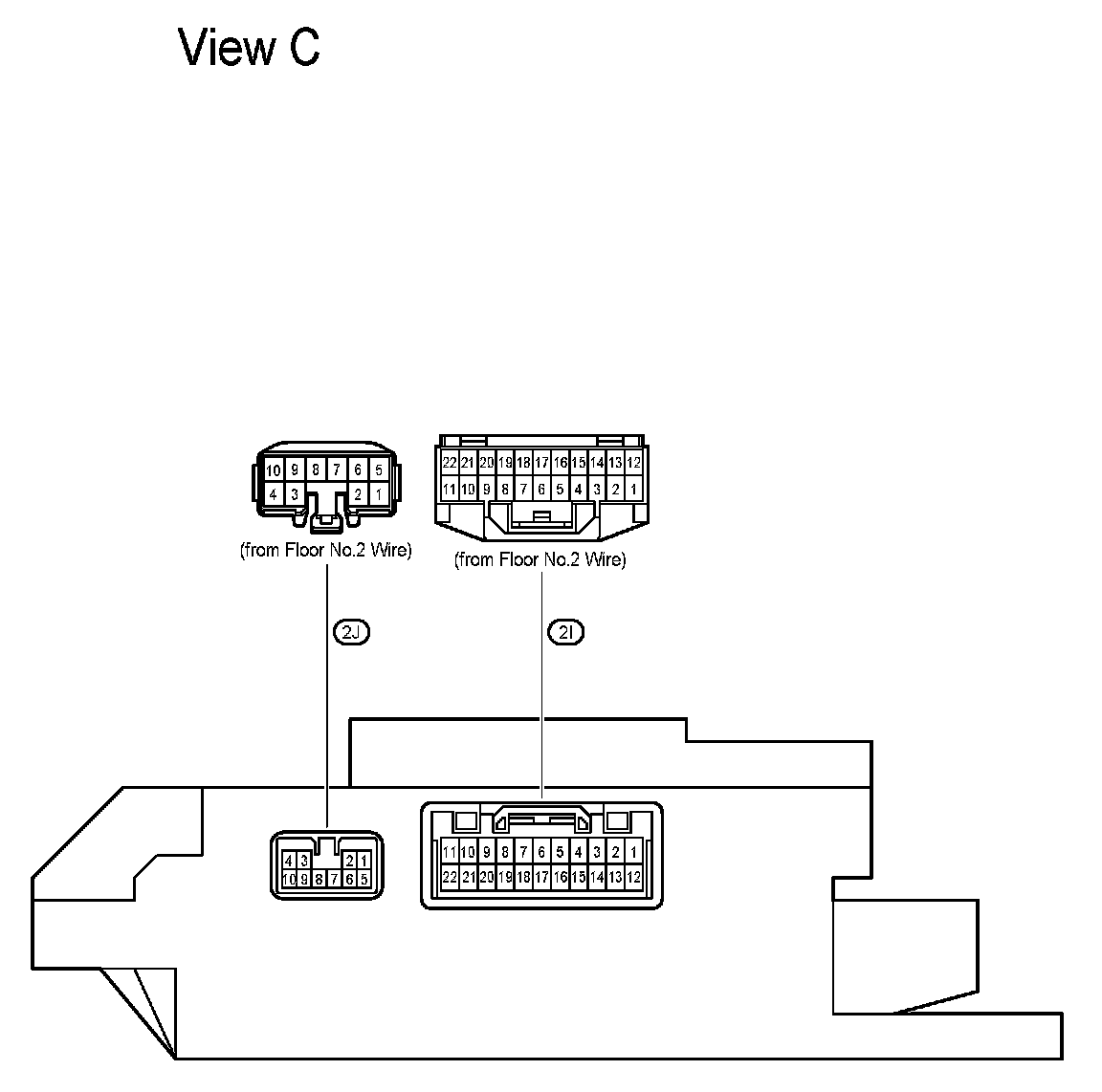

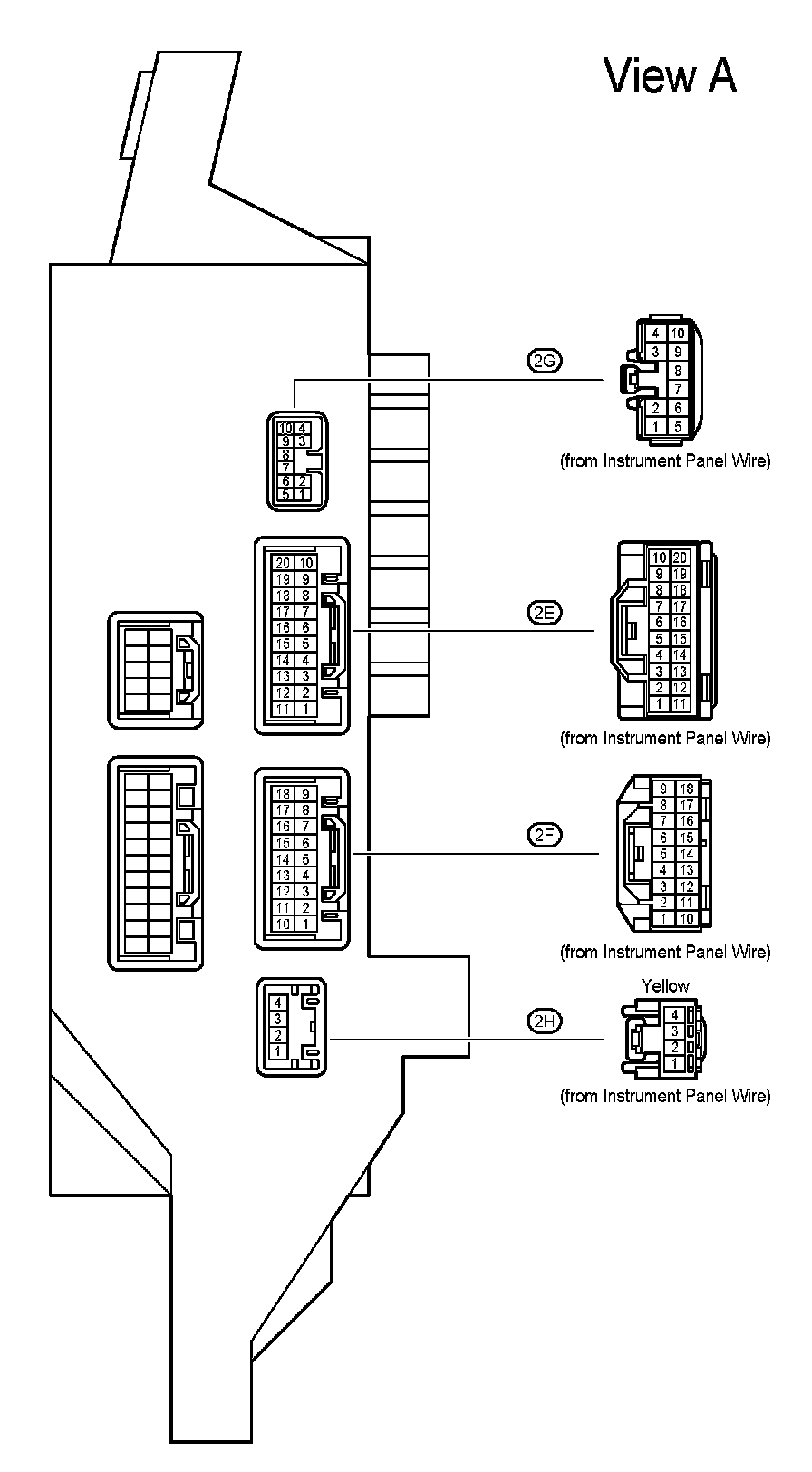

Driver Side J/B - Left Kick Panel:

Driver Side J/B - Left Kick Panel:

Driver Side J/B - Left Kick Panel:

Engine Room No.1 R/B, J/B - Engine Compartment Right:

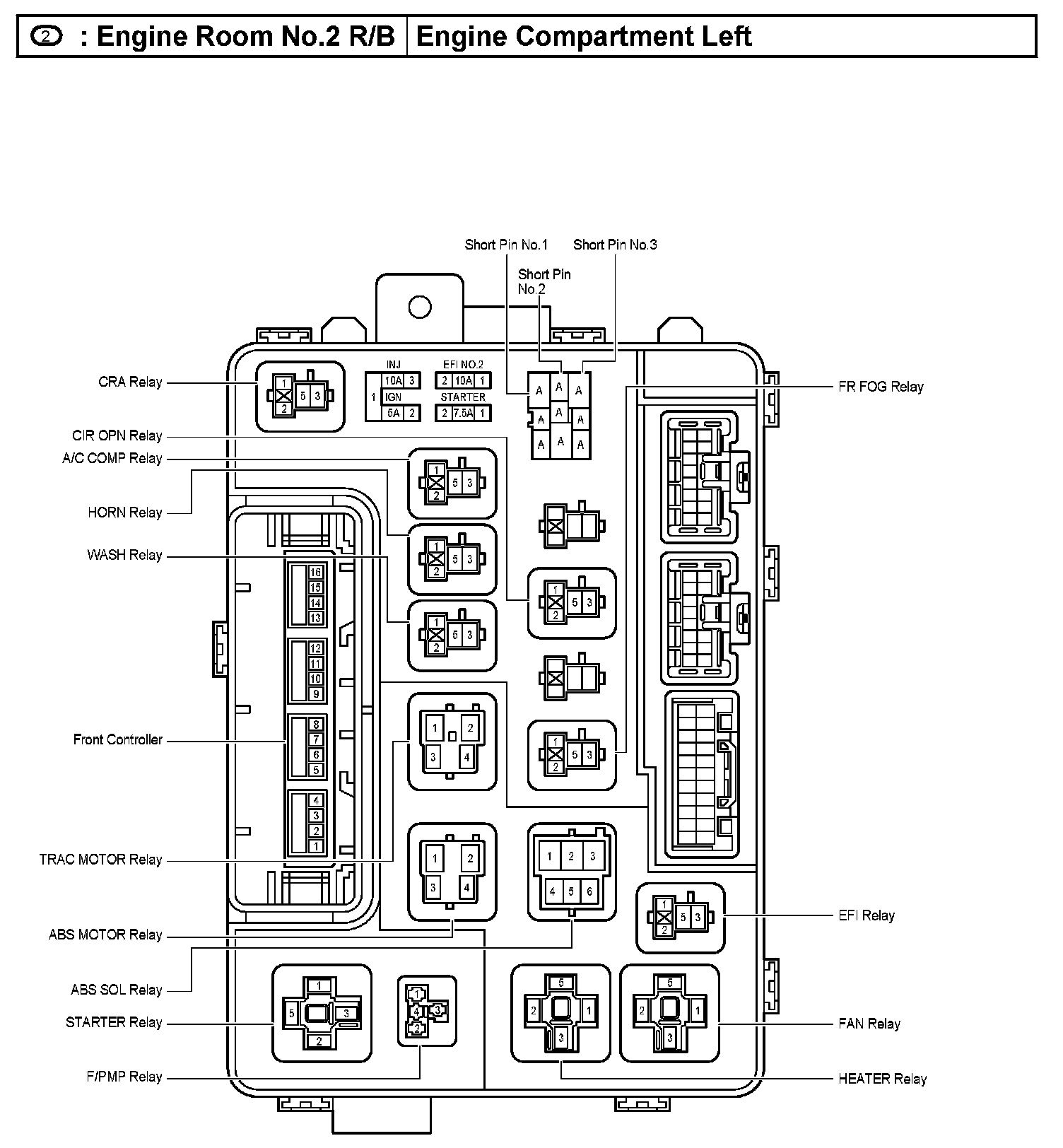

Engine Room No.2 R/B - Engine Compartment Left:

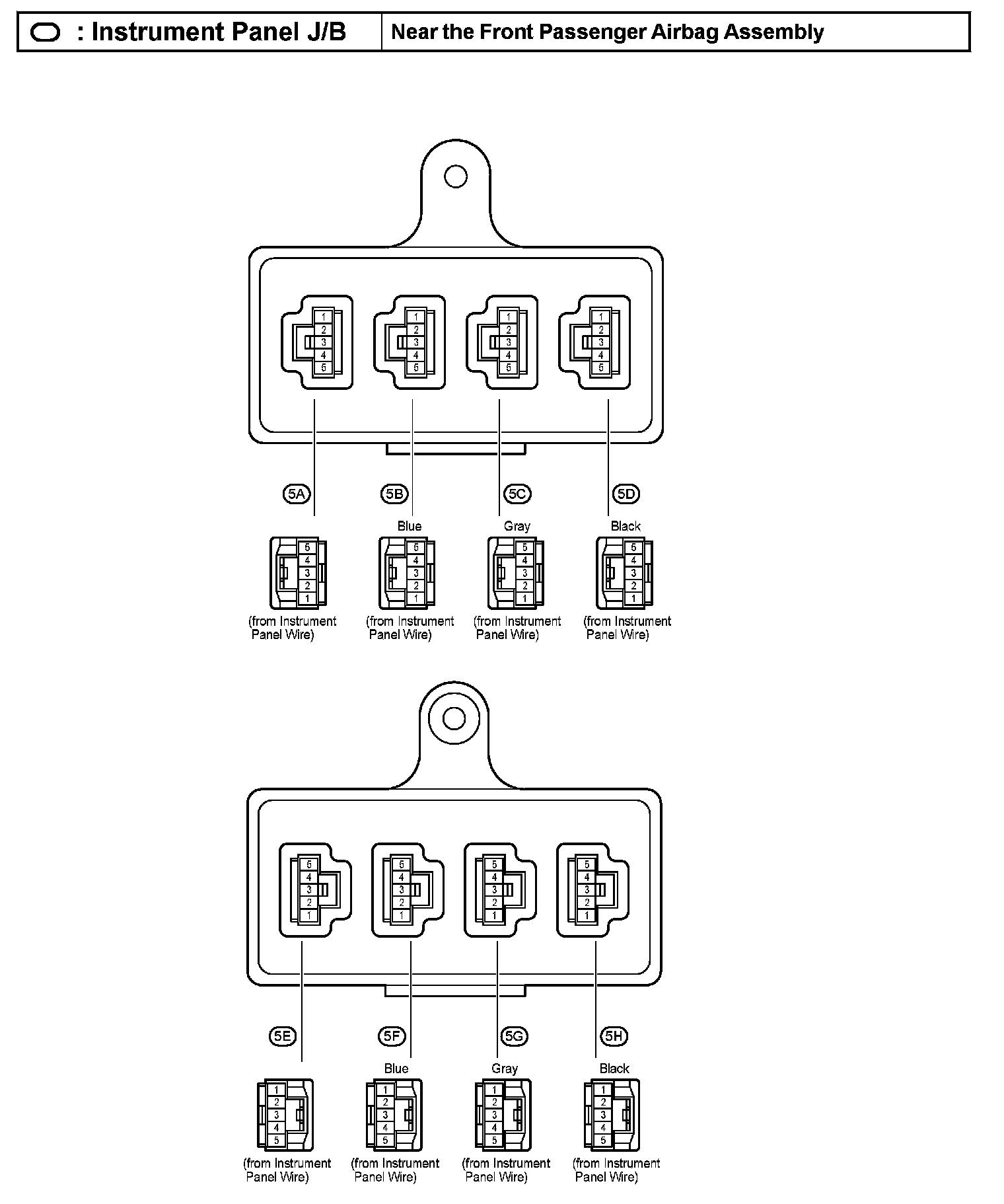

Instrument Panel J/B - Near The Front Passenger Airbag Assembly:

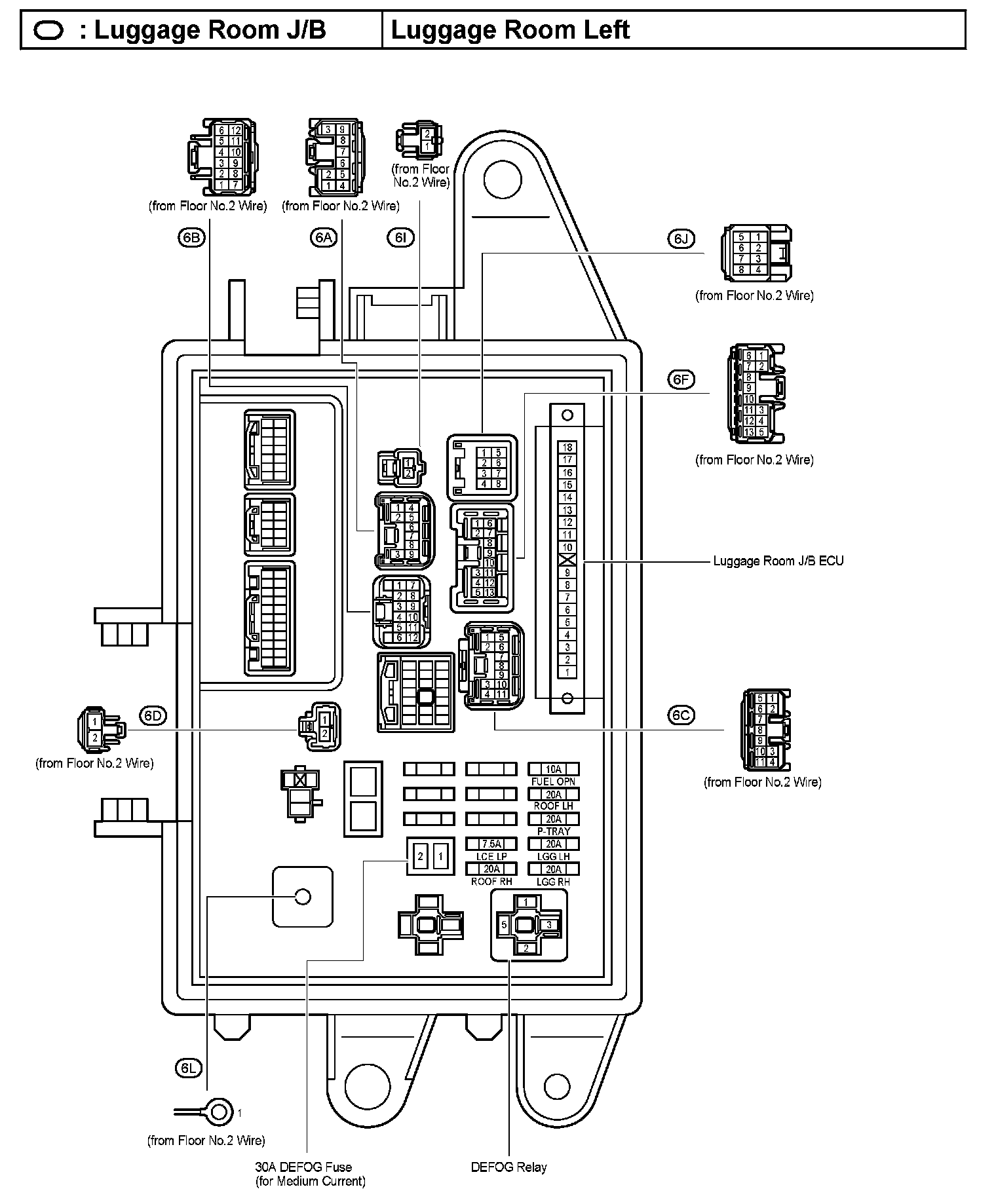

Luggage Room J/B - Luggage Room Left:

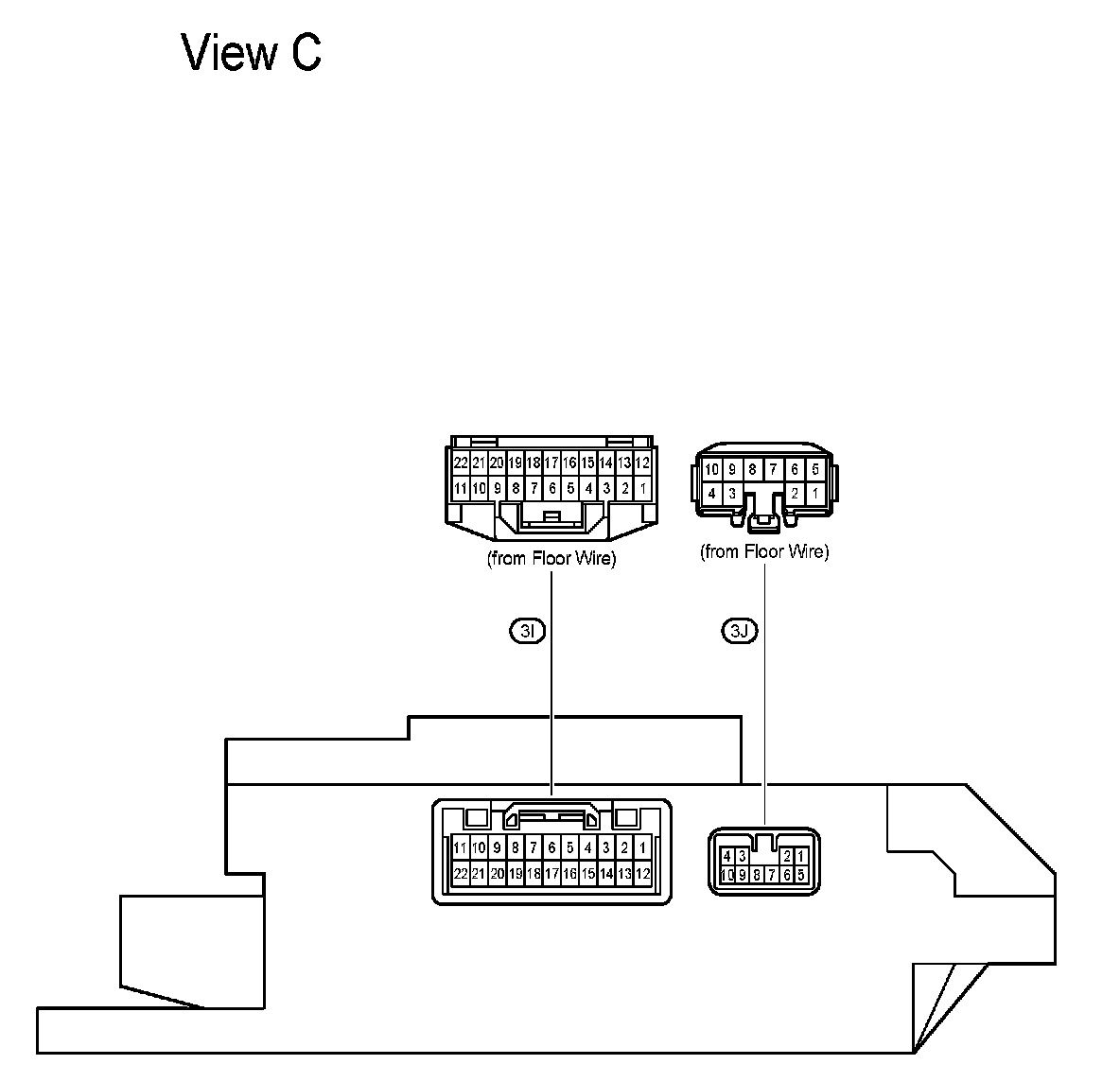

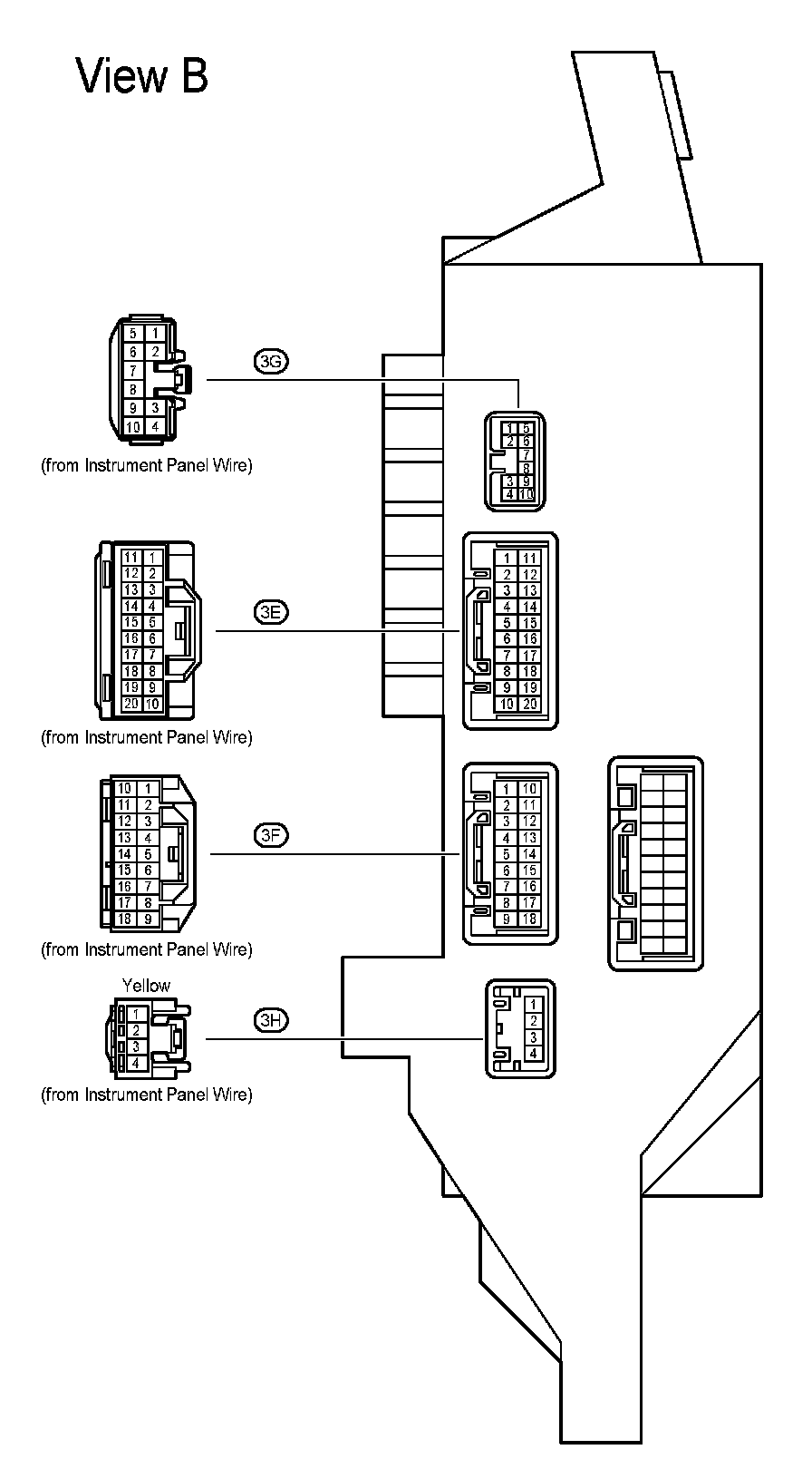

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:
