Passenger Side J/B ECU

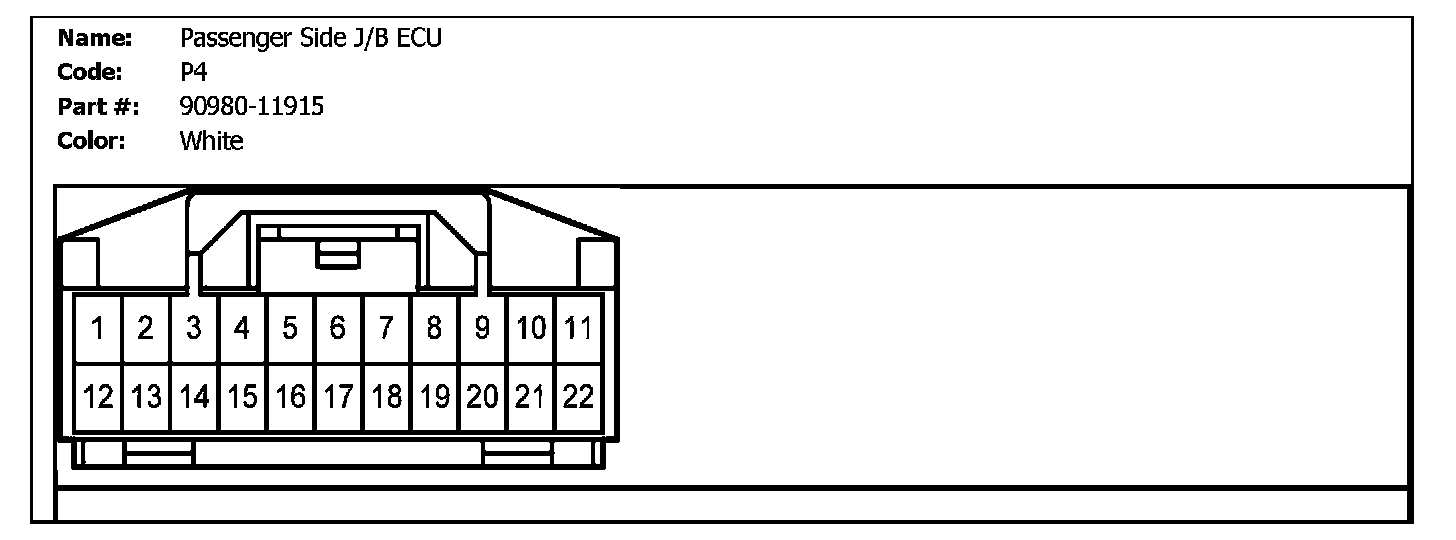

P4 (Passenger Side J/B ECU):

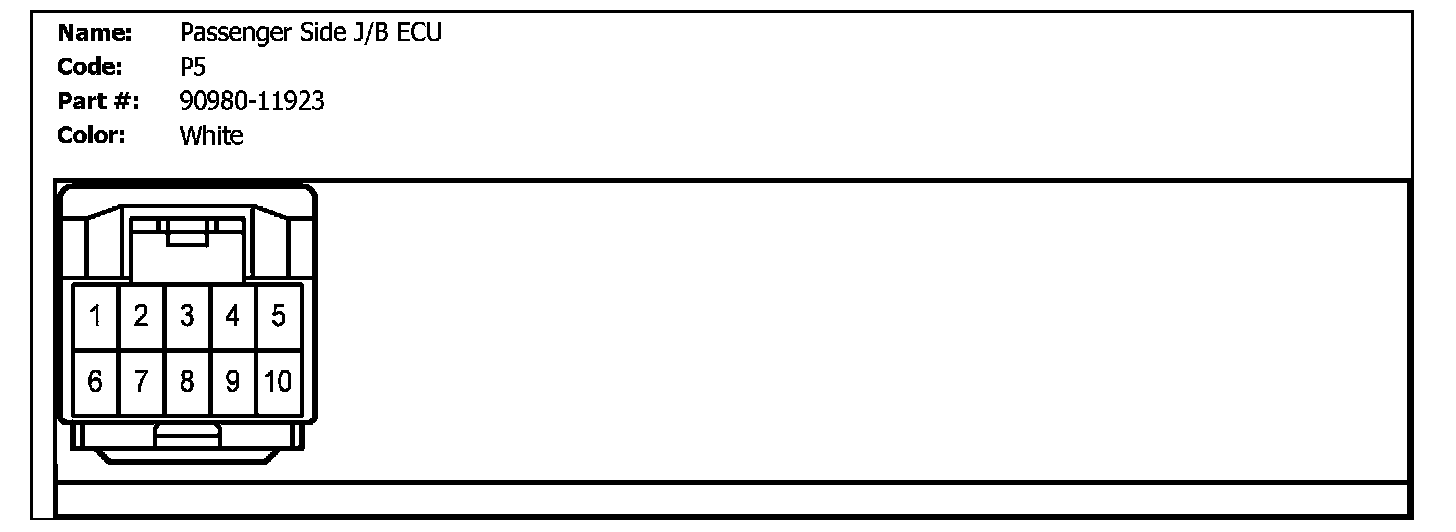

P5 (Passenger Side J/B ECU):

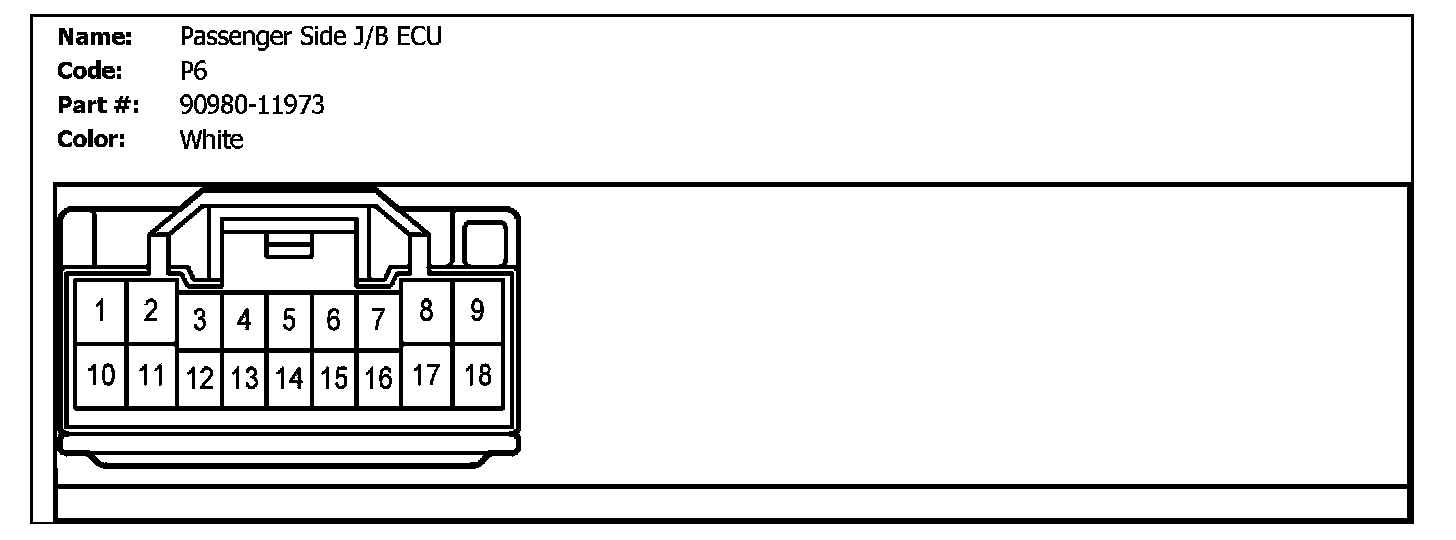

P6 (Passenger Side J/B ECU):
