Power Seat Control Module

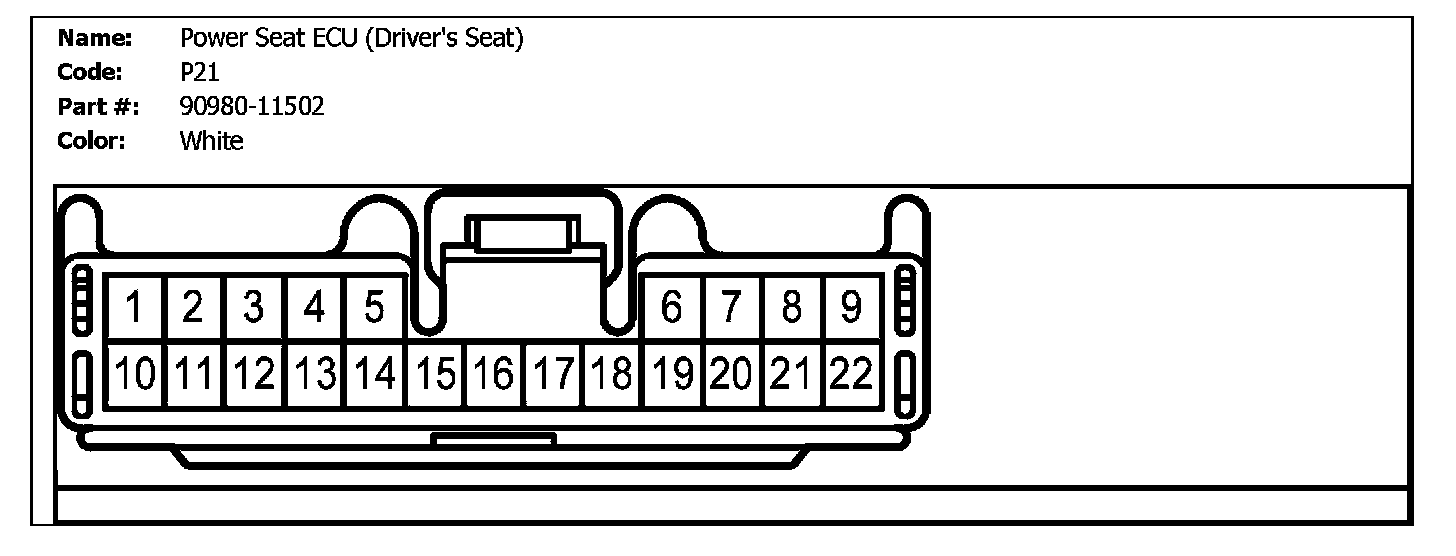

P21 (Power Seat ECU (Driver's Seat)):

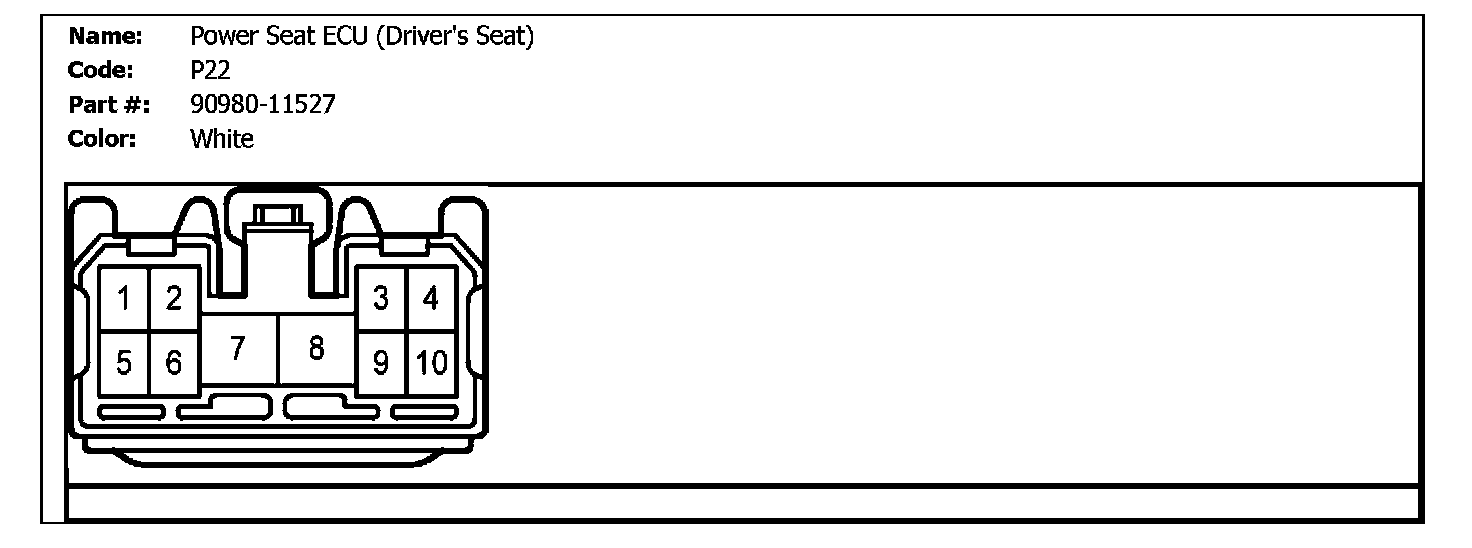

P22 (Power Seat ECU (Driver's Seat)):

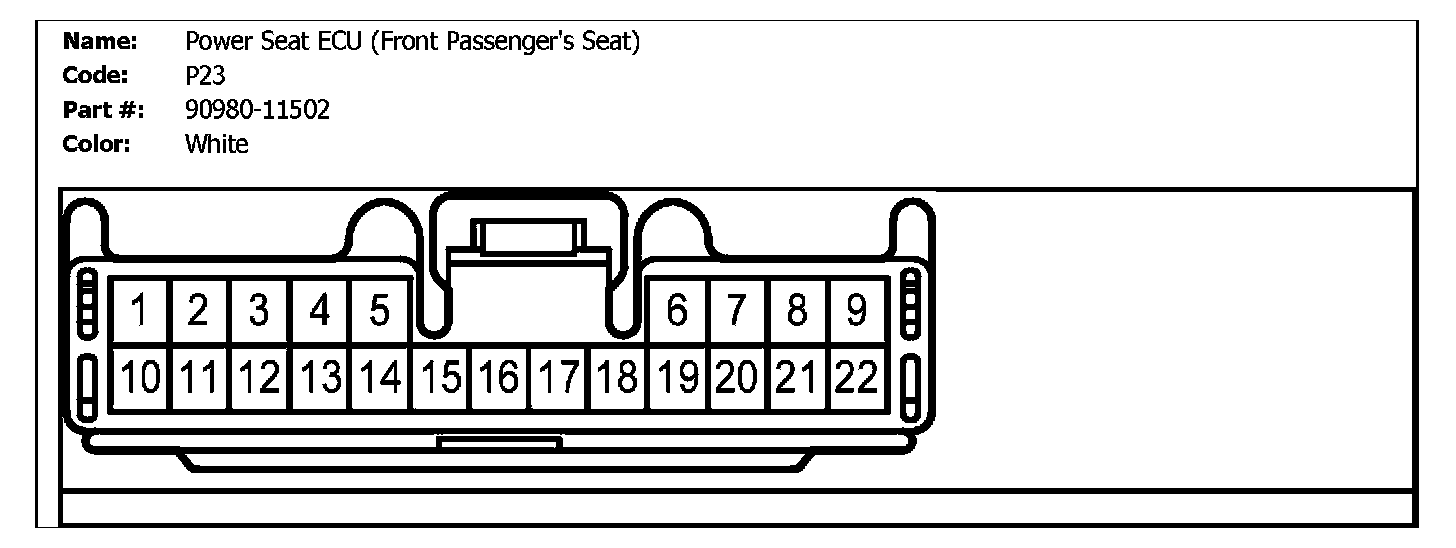

P23 (Power Seat ECU (Front Passenger's Seat)):

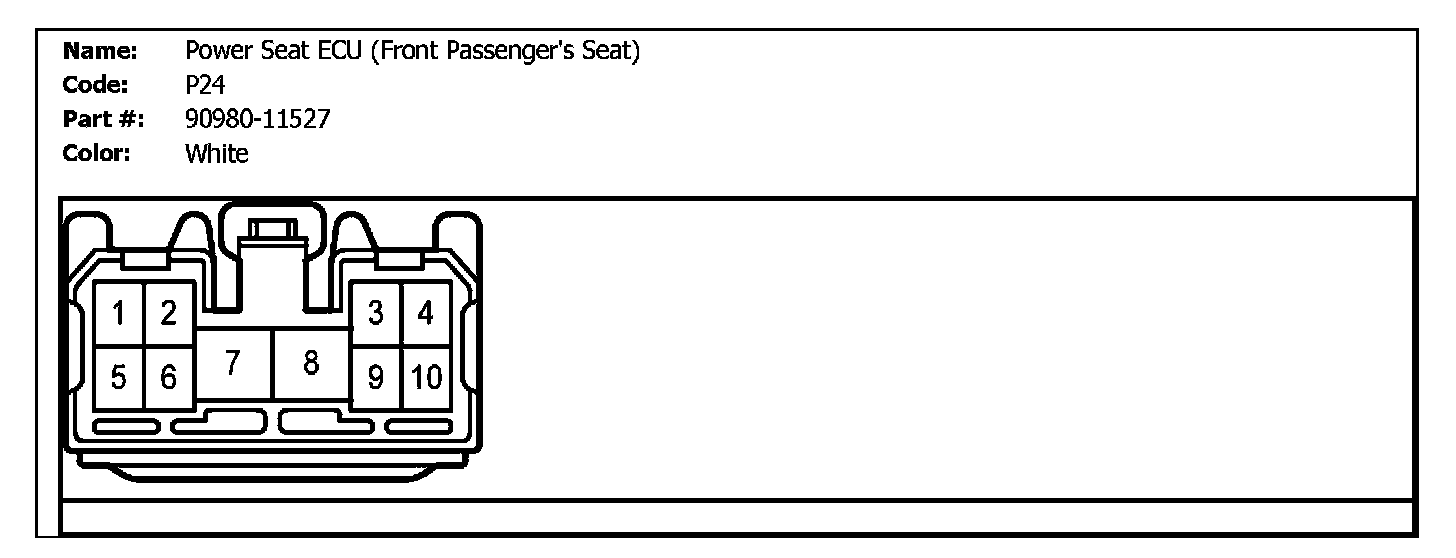

P24 (Power Seat ECU (Front Passenger's Seat)):
