Main Relay (Computer/Fuel System): Locations

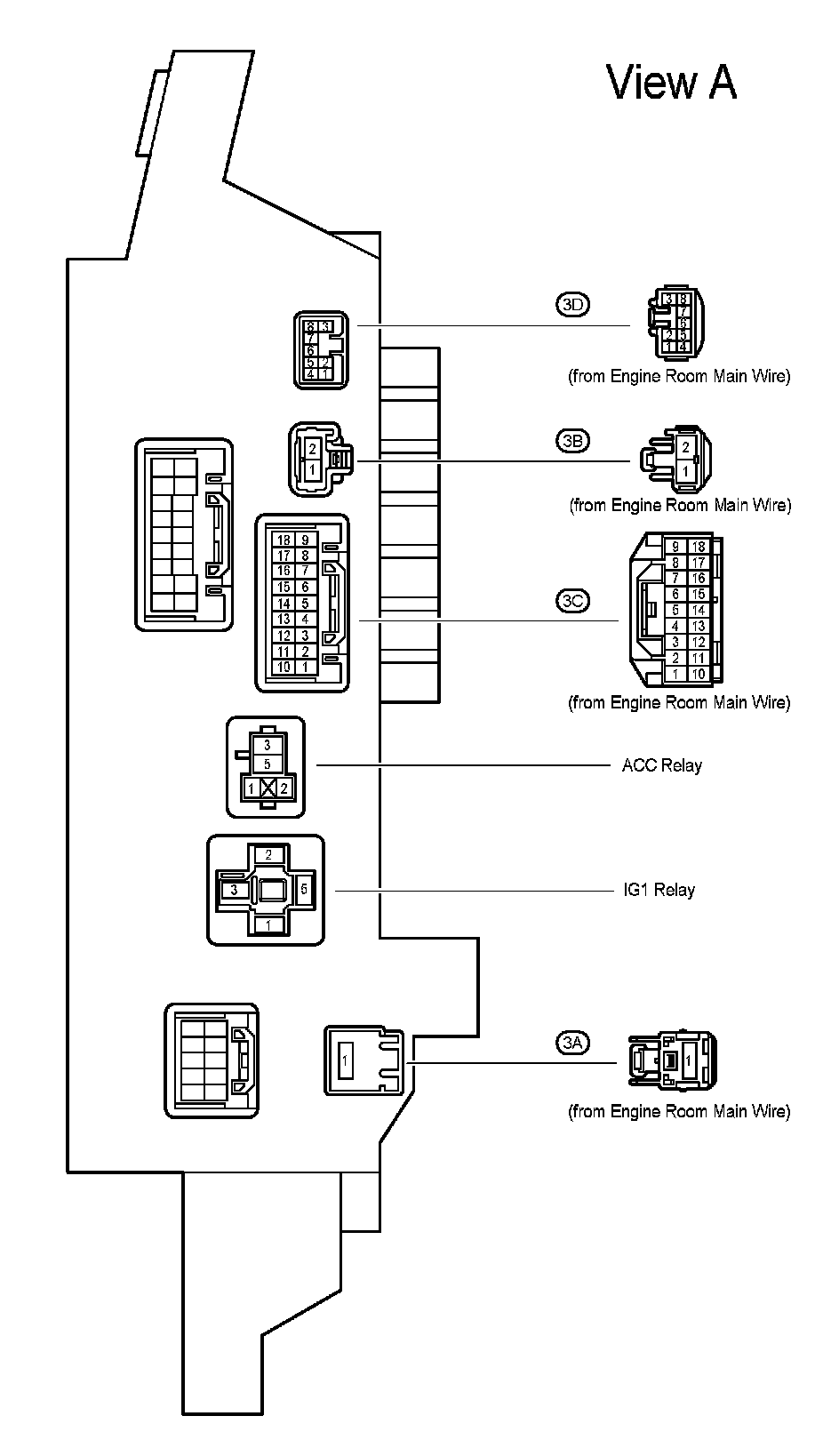

Driver Side J/B - Left Kick Panel:

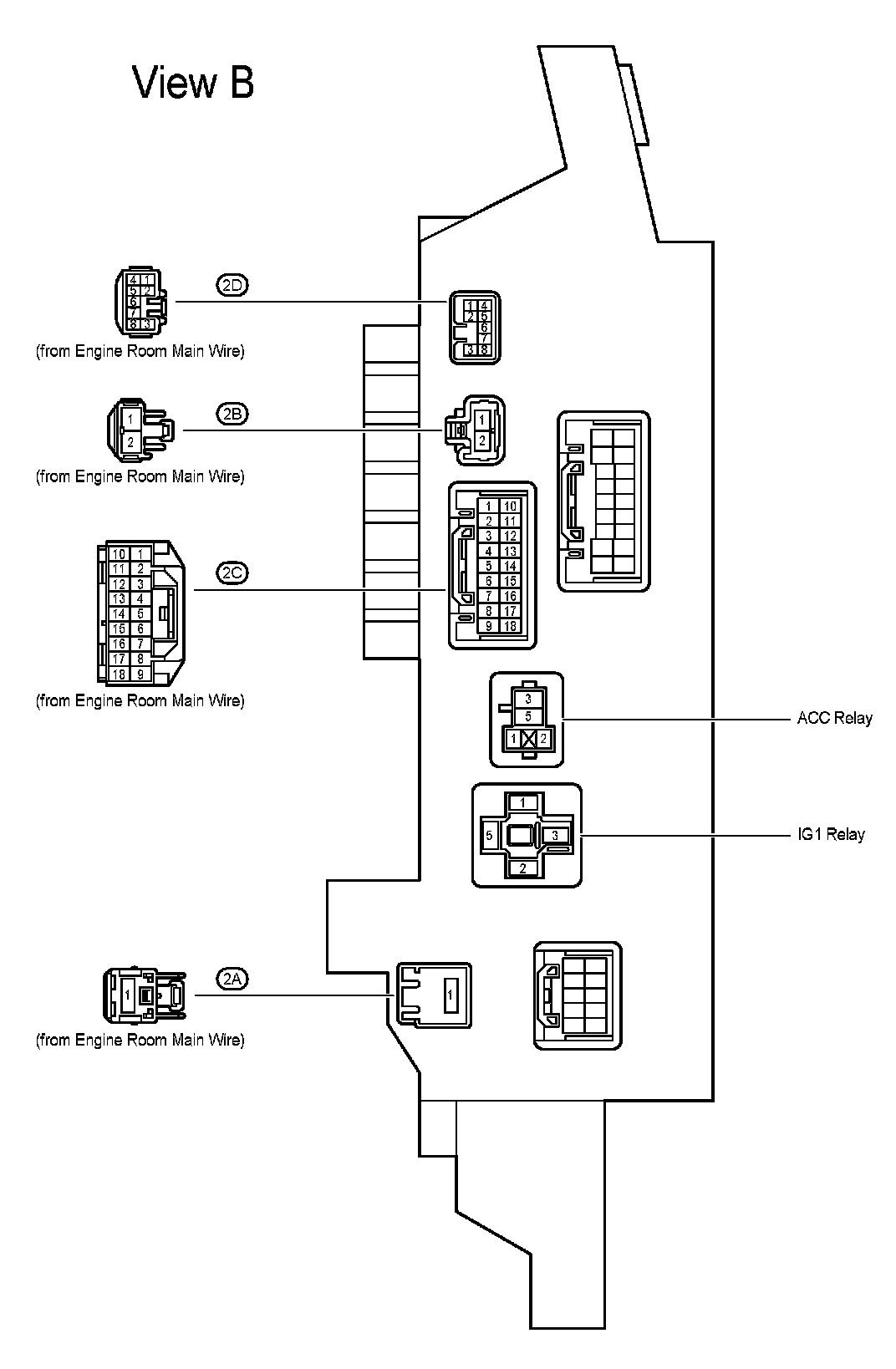

Passenger Side J/B - Right Kick Panel:

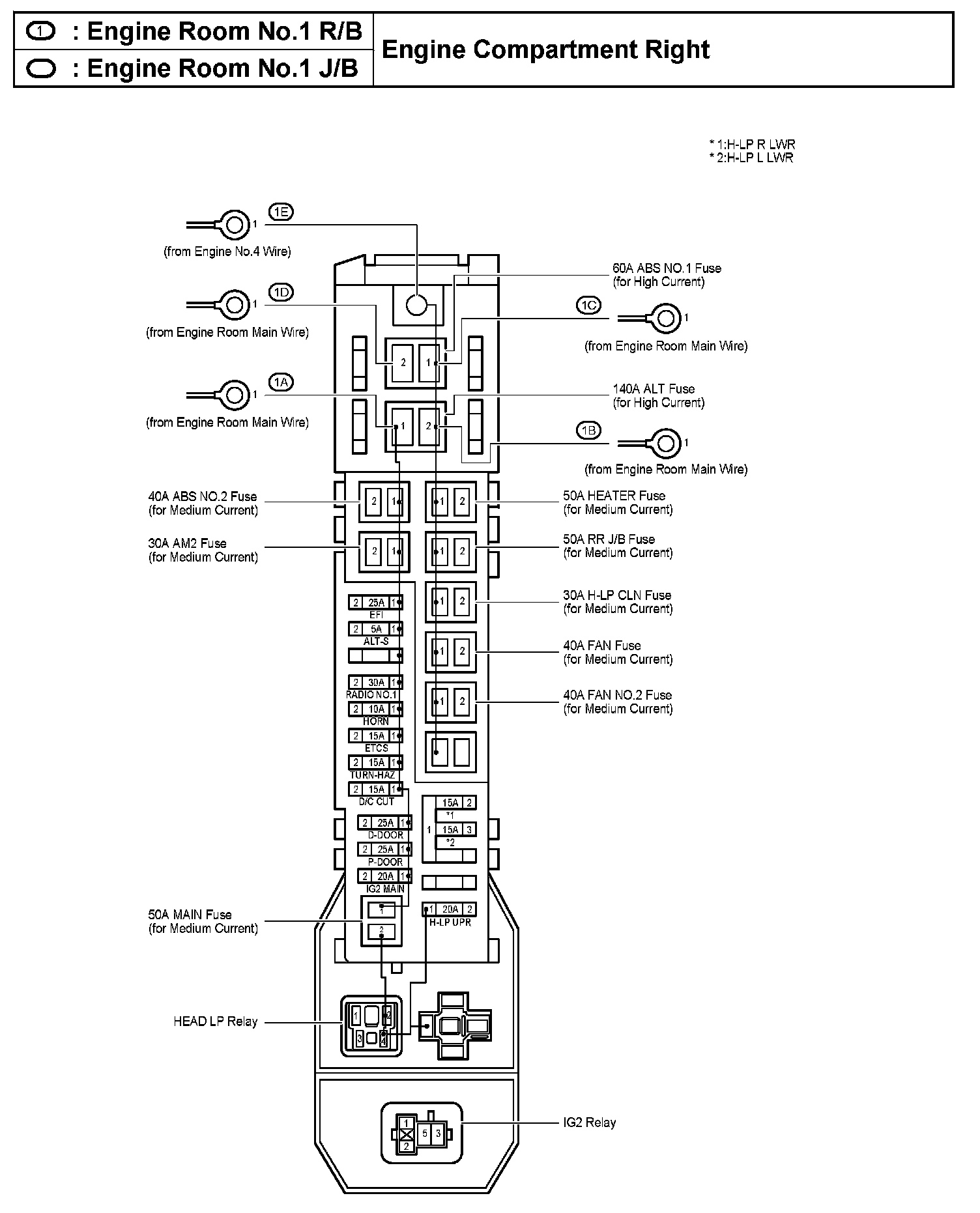

Engine Room No.1 R/B, J/B - Engine Compartment Right:
