Intake Manifold

INTAKE MANIFOLD SUB-ASSEMBLY UPPER
Maximum warpage: 0.10 mm (0.0039 in.)

INTAKE MANIFOLD SUB-ASSEMBLY LOWER
Maximum warpage: 0.15 mm (0.0059 in.)


INTAKE MANIFOLD

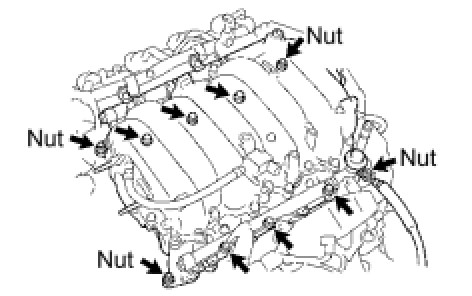

Install the intake manifold with the 6 bolts and 4 nuts.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)

THROTTLE BODY

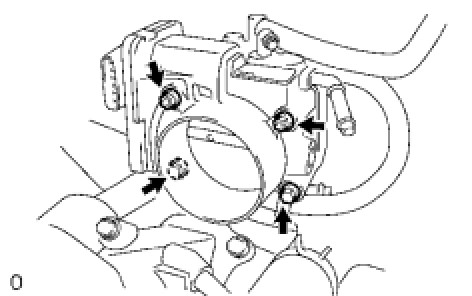

Install a new gasket and the throttle body with the 2 bolts and 2 nuts.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)
