Inspection Procedure

1. Check the DATA LIST for proper functioning of the cruise control main switch.

   ECM (cruise control)

   ITEM MEASUREMENT NORMAL CONDITION CHART



   Tester Display	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   MAIN SW M-CPU	Cruise main switch signal (Main CPU) / ON or OFF	ON: Cruise control main switch is ON (Main CPU) OFF: Cruise control main switch is OFF (Main CPU)	-
   CANCEL Switch	CANCEL switch signal / ON or OFF	ON: CANCEL switch ON OFF: CANCEL switch OFF	-
   SET/COAST Switch	-/SET switch signal ON or OFF	ON: -/SET switch ON OFF: -/SET switch OFF	-
   RES/ACC Switch	+/RES switch signal / ON or OFF	ON: -/RES switch ON OFF: -/RES switch OFF	-

   OK:

   When cruise control main switch operation is performed, the results will be same as above.

OK: REPLACE ECM

NG: Go to next step

1. Measure the resistance of the switch.

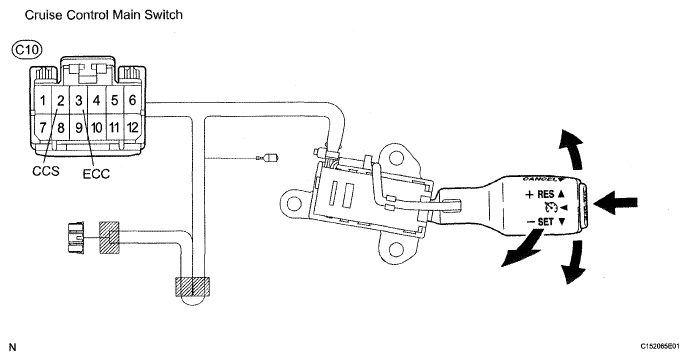

   Fig 1: Inspecting Cruise Control Main Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   3 (ECC) - 2 (CCS)	+/RES	216 to 264 Ω
   3 (ECC) - 2 (CCS)	-/SET	567 to 693 Ω
   3 (ECC) - 2 (CCS)	CANCEL	1386 to 1694 Ω
   3 (ECC) - 2 (CCS)	Main switch OFF	10 kΩ or higher
   3 (ECC) - 2 (CCS)	Main switch ON	Below 1 Ω

NG: REPLACE CRUISE CONTROL MAIN SWITCH

OK: Go to next step

1. Measure the resistance of the spiral cable.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   C10-2 (CCS) - A-2 (CCS)	Below 1 Ω
   C10-3 (ECC) - A-3 (ECC)	Below 1 Ω

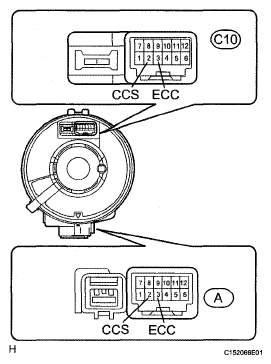

   Fig 2: Identifying C10 Spiral Cable Sub-Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

OK: Go to next step

1. Disconnect the E5 ECM connector.
2. Disconnect the C10 spiral cable connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   E5-31 (CCS) - C10-2 (CCS)	Below 1Ω
   E5-31 (CCS) - Body ground	10 kΩ or higher
   C10-2 (CCS) - Body ground	10 kΩ or higher
   C10-3 (ECC) - Body ground	Below 1Ω

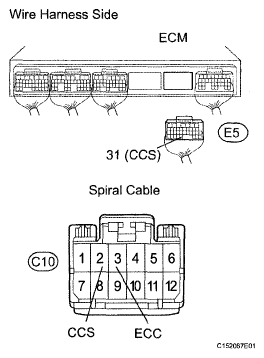

   Fig 3: Checking Wire Harness (Spiral Cable - ECM And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
