Transponder Key Amplifier: Installation

INSTALL TRANSPONDER KEY AMPLIFIER
1. Install the transponder key amplifier with the screw.
2. Connect the connector.

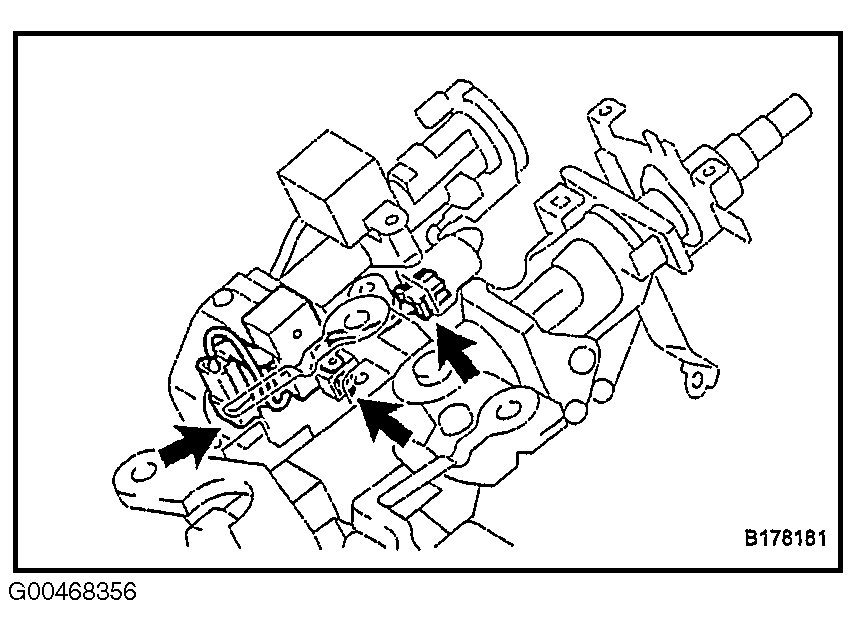

  Fig 1: Identifying Transponder Key Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSPONDER KEY COIL
1. Install the key cylinder and transponder key coil with the screw.

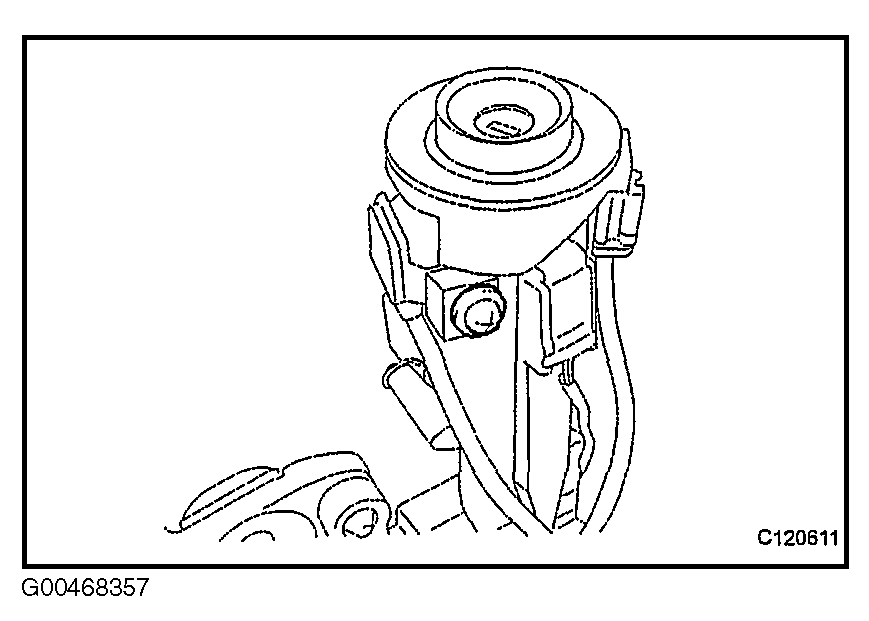

  Fig 2: Identifying Transponder Key Coil Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ignition protector with the 2 screws.

  Fig 3: Identifying Ignition Protector Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL STEERING COLUMN ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform Initialization (See INITIALIZATION ).
  NOTE: When disconnecting the calbe, some systems need to be initialized after the cable in reconnected.
CHECK SRS WARNING LIGHT
1. Check SRS warning light (See DIAGNOSIS SYSTEM ).
