Quarter Window Glass: Adjustment

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the RH side.

1. INSPECT QUARTER WINDOW ASSEMBLY RH
   1. Check that the clearance is within the standard value.

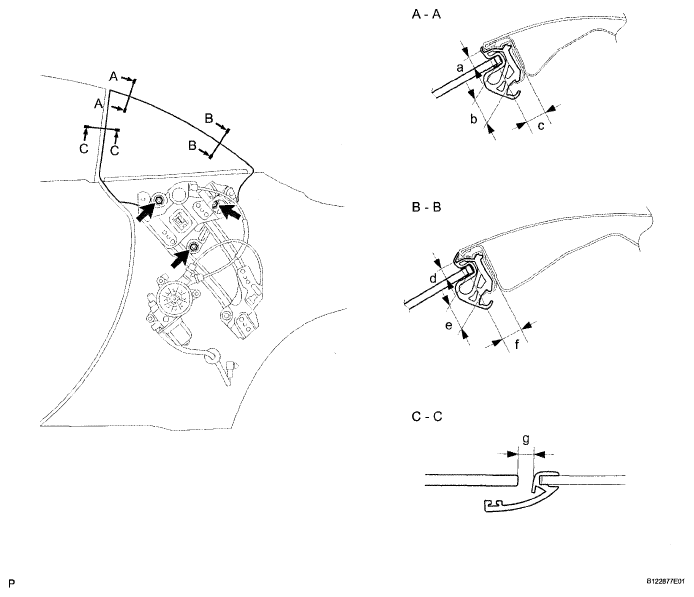

      Fig 1: Identifying Quarter Window Assembly RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard measurement

      STANDARD MEASUREMENT



      Area	Specified Condition
      a	8.5 mm (0.335 in.)
      b	19.2 +-3.0 mm (0.756 +-0.118 in.)
      c	13.5 +-3.0 mm (0.531 in.)
      d	7.5 mm (0.295 in.)
      e	20.5 +-3.0 mm (0.807 +-0.118 in.)
      f	13.7 +-3.0 mm (0.539 +-0.118 in.)
      g	8.0 +-2.0 mm (0.315 +-0.079 in.)
