Front Axle Hub: Components

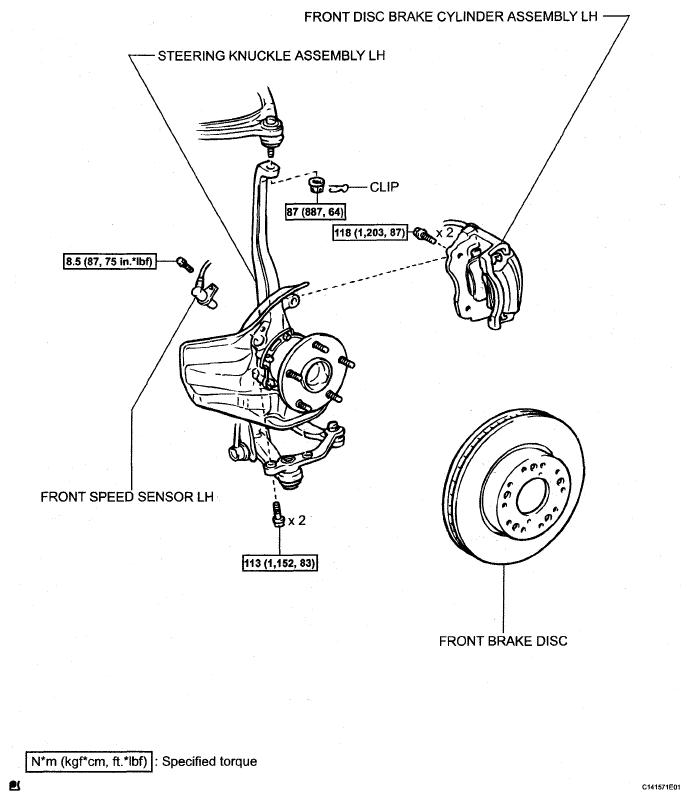

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (1 Of 2)
G05290355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

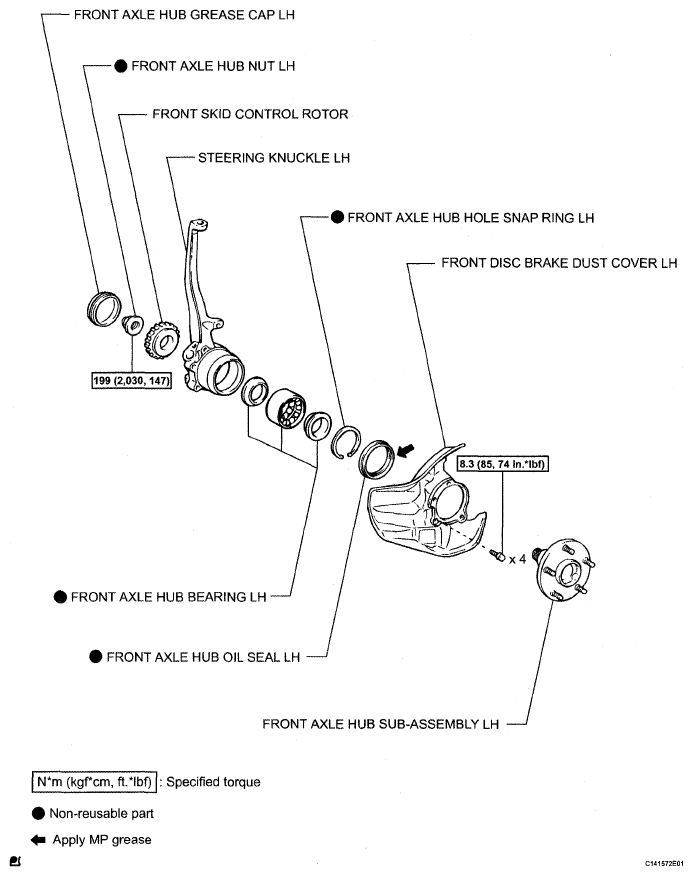

Fig 2: Front Axle Hub Replacement Components With Torque Specifications (2 Of 2)
G05290356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
