Key Reminder and Seat Belt Warning: Notes

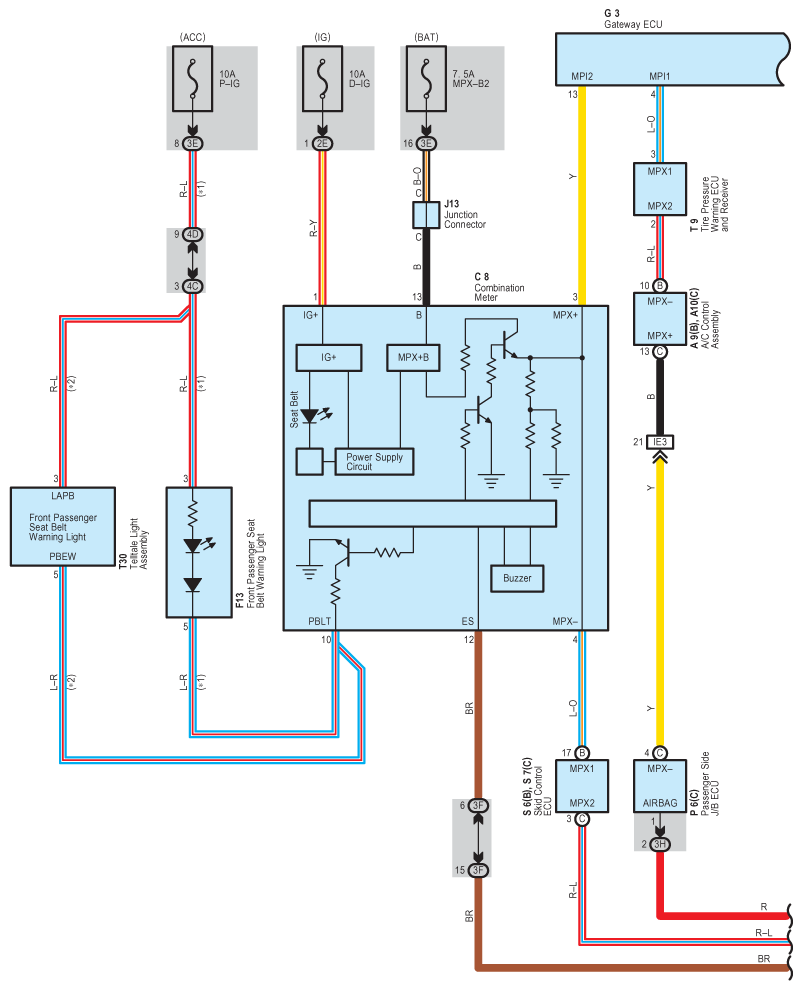

Fig 1: Key Reminder And Seat Belt Warning - Circuit Diagram (1 Of 3)
G07612022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

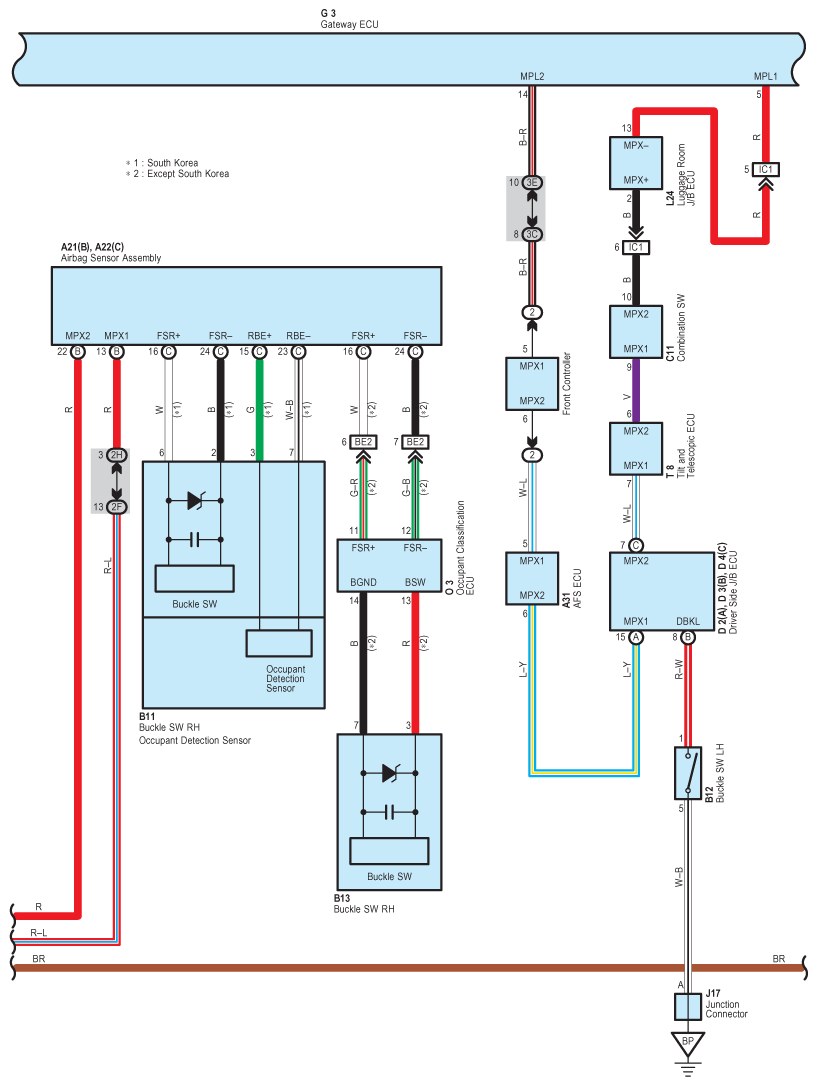

Fig 2: Key Reminder And Seat Belt Warning - Circuit Diagram (2 Of 3)
G07612023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

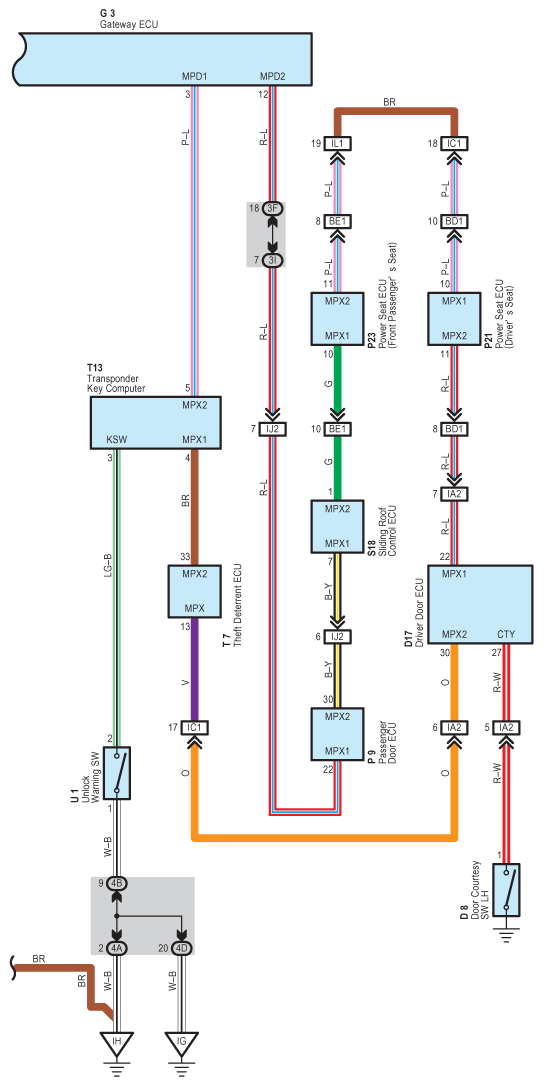

Fig 3: Key Reminder And Seat Belt Warning - Circuit Diagram (3 Of 3)
G07612024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
