Home >> Lexus >> 2008 >> SC 430 >> Repair and Diagnosis >> Electrical >> Horns >> Horn >> High Pitched Horn >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

High Pitched Horn: Components

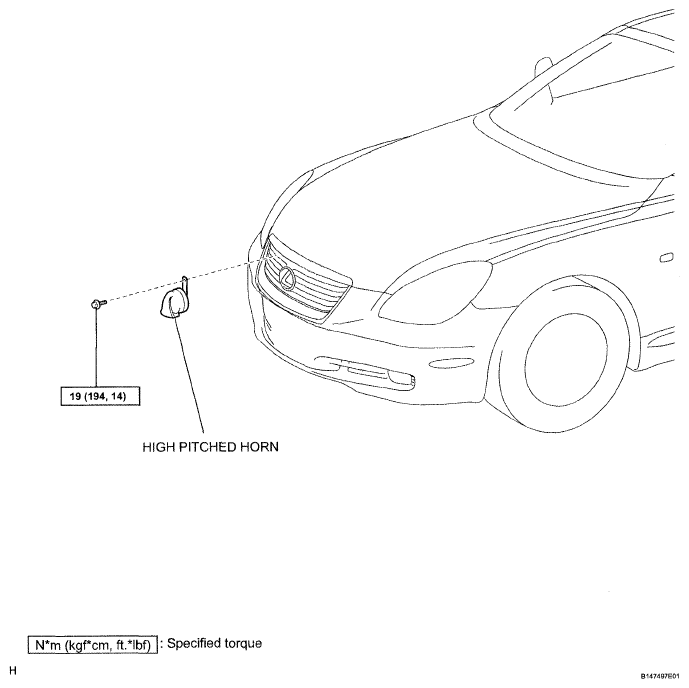

Fig 1: High Pitched Horn Replacement Components With Torque Specifications
G05293389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
