Purge Valve: Components

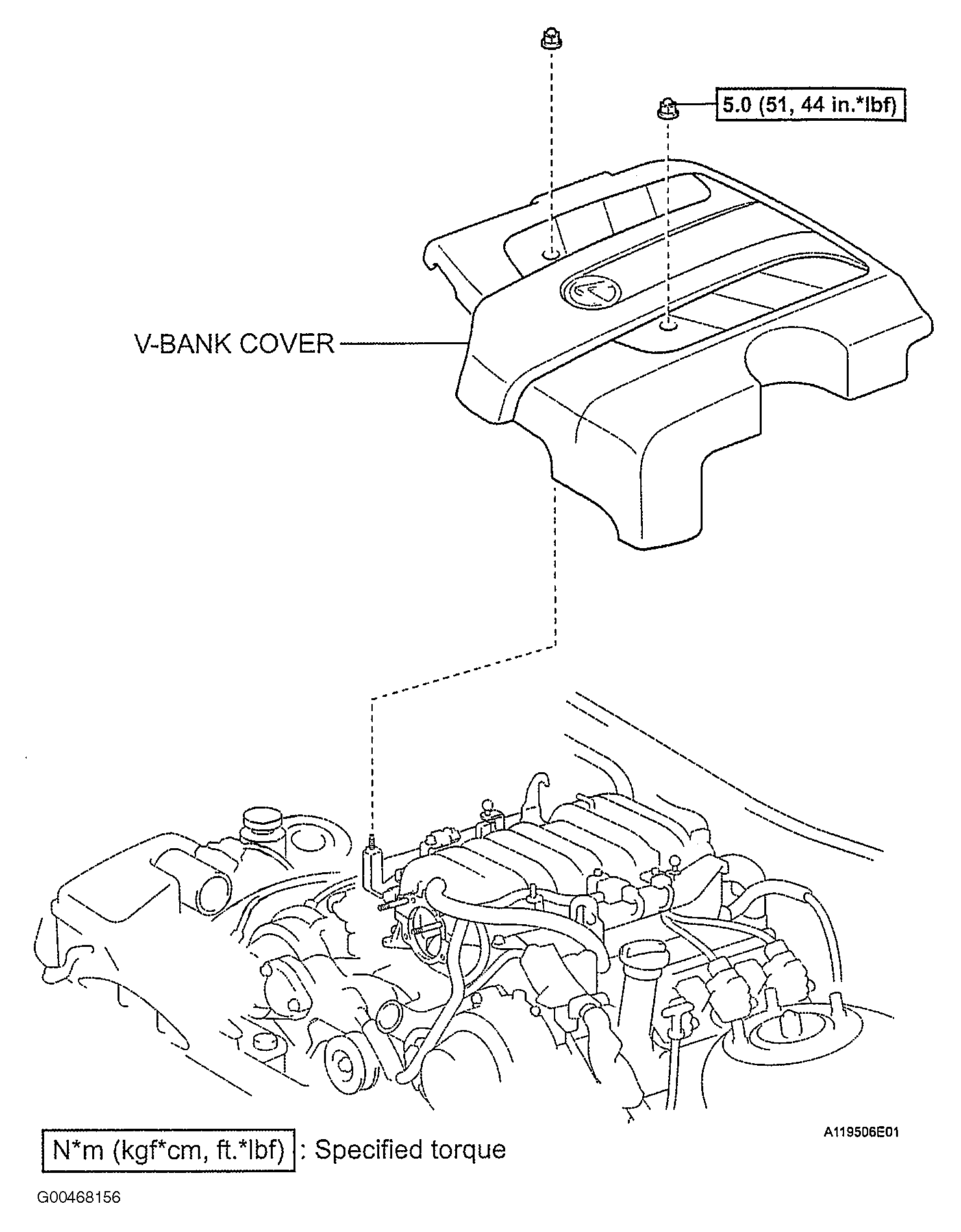

Fig 1: Purge Valve Replacement Components With Torque Specifications (1 Of 2)
G00468156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

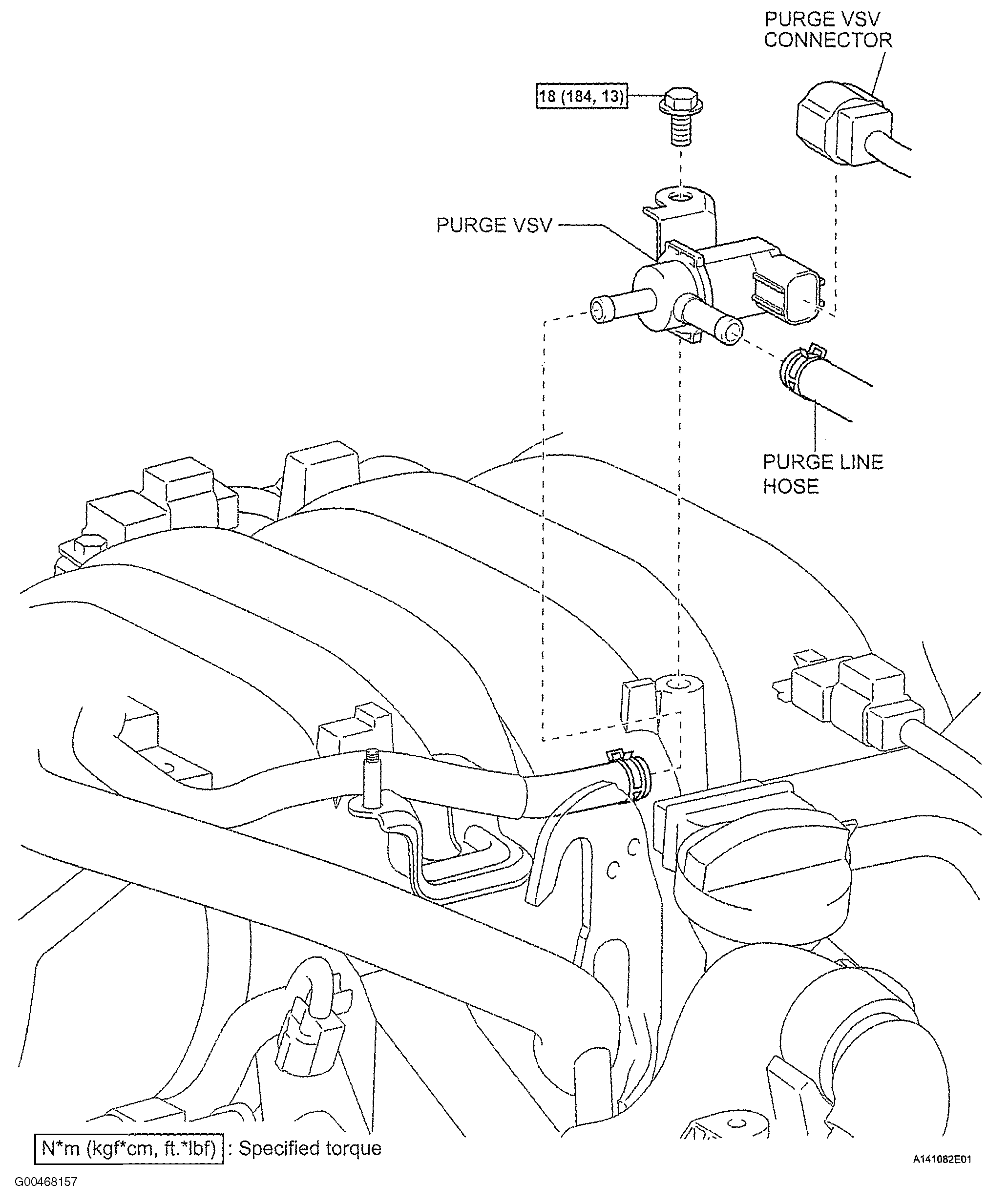

Fig 2: Purge Valve Replacement Components With Torque Specifications (2 Of 2)
G00468157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
