DTC P0101: Mass Air Flow Circuit Range / Performance Problem: Wiring Diagram

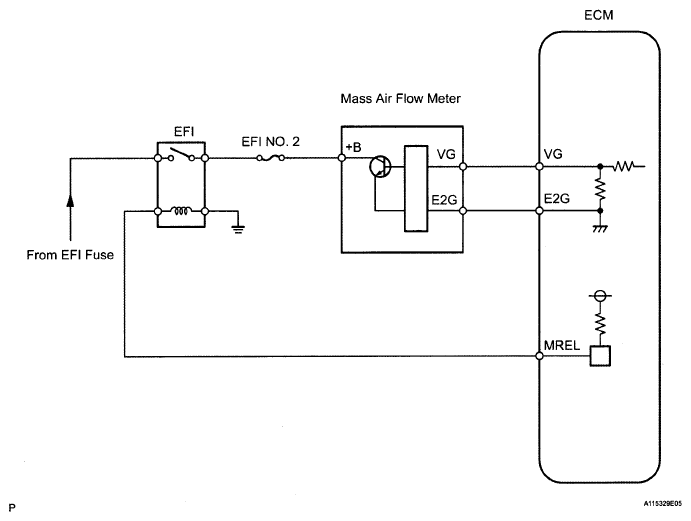

Fig 1: Mass Air Flow Circuit Range / Performance Problem - Wiring Diagram
G05838642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
