Rear Speed Sensor: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT REAR SPEED SENSOR
- Disconnect the rear speed sensor connector.

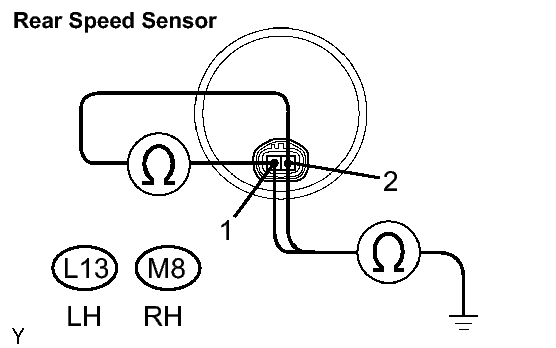

- Measure the resistance according to the value(s) in the table below.
Resistance
LH
RH
Tester Connection Specified Condition K13-1 (RL+) - K13-2 (RL-) Below 2.2 kΩ K13-1 (RL+) - Body ground 10 kΩ or higher K13-2 (RL-) - Body ground 10 kΩ or higher Tester Connection Specified Condition M8-1 (RR+) - M8-2 (RR-) Below 2.2 kΩ M8-1 (RR+) - Body ground 10 kΩ or higher M8-2 (RR-) - Body ground 10 kΩ or higher
