Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (STEREO COMPONENT AMPLIFIER - COMBINATION METER)

Disconnect the S23 amplifier connector.
Disconnect the C8 meter connector.

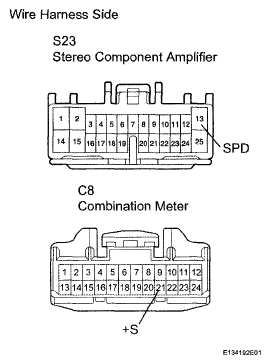

Fig 1: Identifying C8 Meter Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance of the wire harness side connectors.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
S23-13 (SPD) - C8-21 (+S)	Below 1 Ω
S23-13 (SPD) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

CHECK COMBINATION METER ASSEMBLY (+S VOLTAGE)

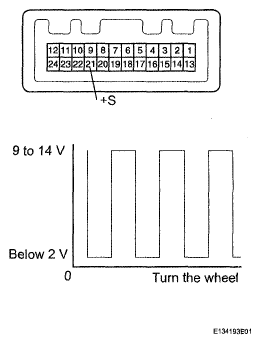

Fig 2: Identifying Combination Meter Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Jack up either of the rear wheels.
Move the shift lever to N.

Measure the voltage of the meter connectors.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
C8-21 (+S) - Body ground	Ignition switch ON and turn rear wheel	Voltage is pulsed

NG: GO TO METER / GAUGE SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
