Radio Antenna Cord: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

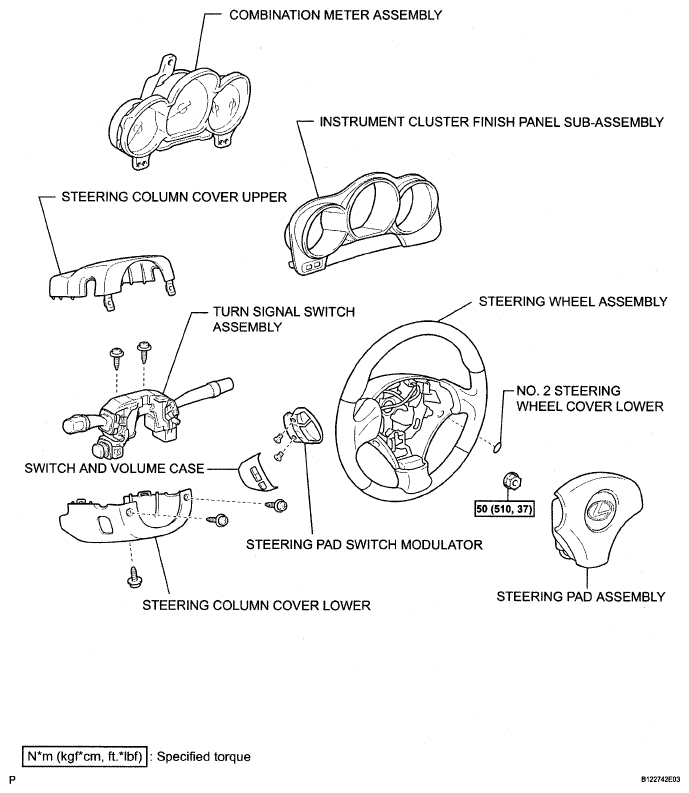

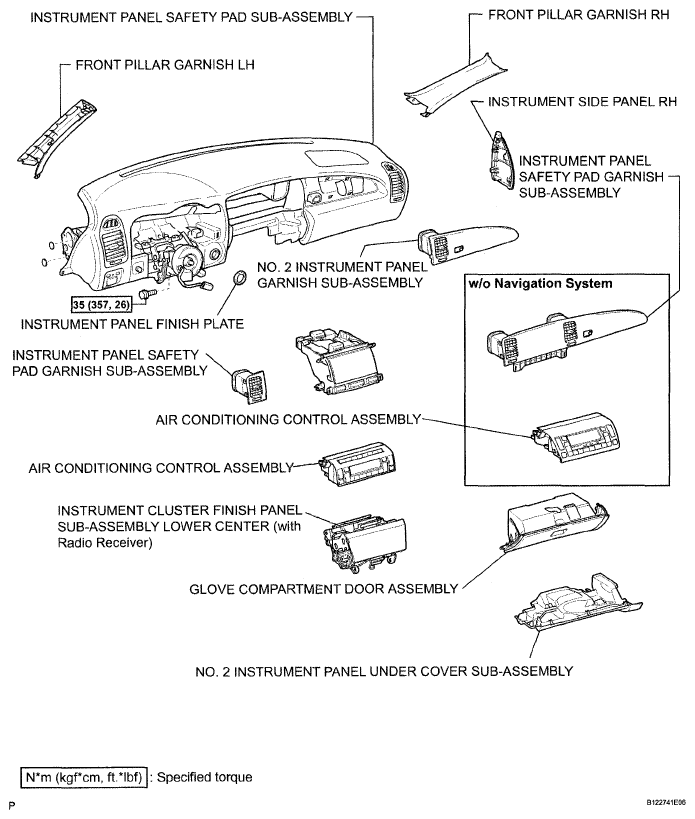

Fig 1: Radio Antenna Cord Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

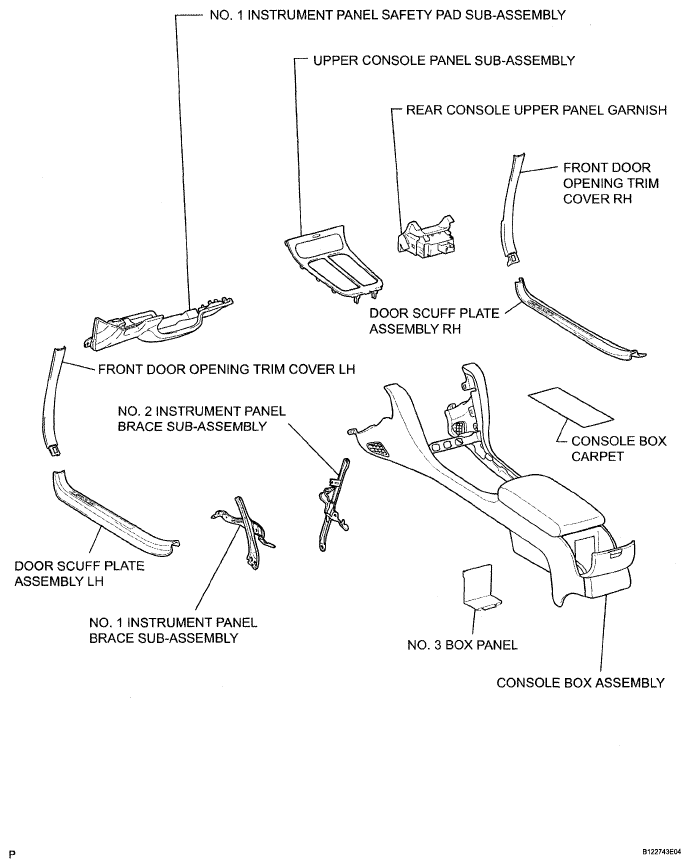

Fig 2: Radio Antenna Cord Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Radio Antenna Cord Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Radio Antenna Cord Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Radio Antenna Cord Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Radio Antenna Cord Components (6 Of 8)

Fig 7: Identifying Radio Antenna Cord Components (7 Of 8)

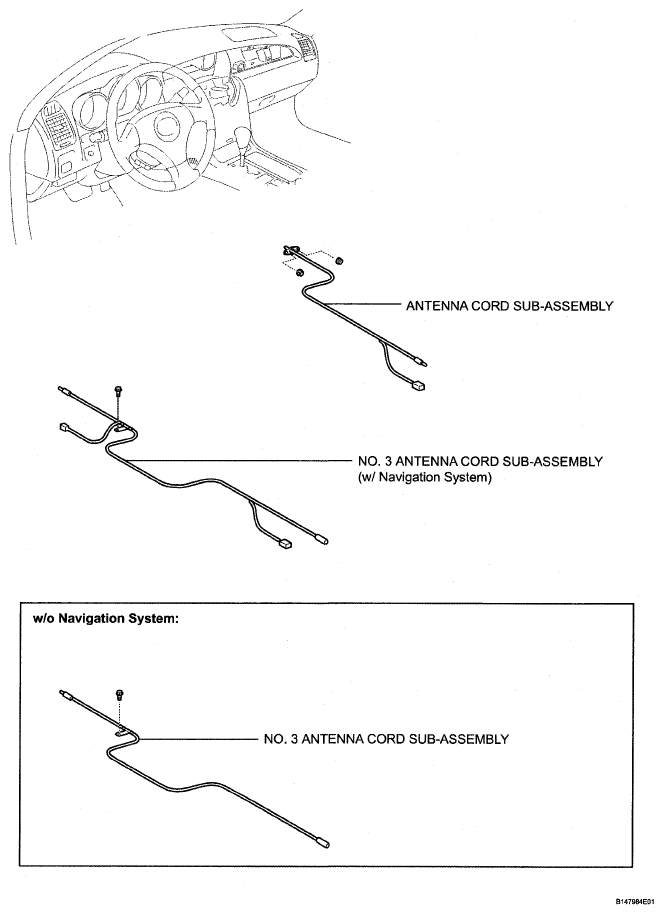

Fig 8: Identifying Radio Antenna Cord Components (8 Of 8)
