Radio Receiver: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIO RECEIVER ASSEMBLY
1. Install the No. 1 bracket with the 2 screws.
2. Install the No. 2 bracket with the 2 screws.

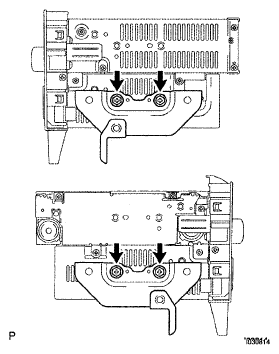

  Fig 1: Locating No. 1, 2 Bracket And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws to install the panel.
4. Install the 4 bolts.
5. Install the 3 panel retainers with the 4 screws.

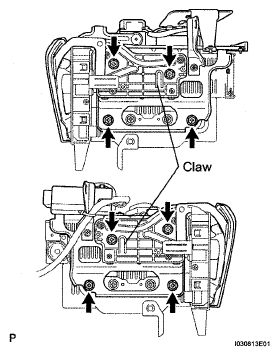

  Fig 2: Identifying Panel Retainers And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
1. Connect the connector.
2. Install the panel with the 4 bolts.
  NOTE:
  - If the connector is connected with the battery connected, the system will start initialization.
  - Vibration during initialization may cause problems in the radio receiver.

    Fig 3: Locating Bolts And Panel
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL REAR CONSOLE UPPER PANEL GARNISH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT (See INSTALLATION )
