Stereo Component Amplifier: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 AMPLIFIER BRACKET
1. Install the bracket with the 2 screws.

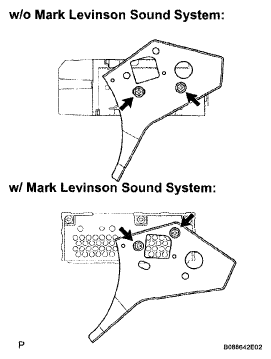

  Fig 1: Locating No. 2 Amplifier Bracket And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AMPLIFIER BRACKET
1. Install the bracket with the 2 screws.

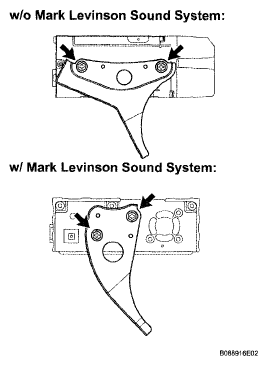

  Fig 2: Locating No. 1 Amplifier Bracket And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
1. w/ Mark Levinson Sound System:
  1. Connect the 2 connectors.
  2. Install the amplifier with the 2 bolts and nut.

    Fig 3: Locating Stereo Component Amplifier Bolts And Nut
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Mark Levinson Sound System:
  1. Connect the 2 connectors.
  2. Install the amplifier with the 2 bolts and nut.

    Fig 4: Locating Stereo Component Amplifier Bolts And Nut
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT TRAY BRACKET FRONT (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See INSTALLATION )
INSTALL TONNEAU COVER ASSEMBLY (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR (See INSTALLATION )
INSTALL TOOL BOX COVER (See INSTALLATION )
INSTALL SPARE WHEEL COVER ASSEMBLY
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT TRIM COVER RH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
INSTALL REAR FLOOR FINISH PLATE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
