Package Tray Trim: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

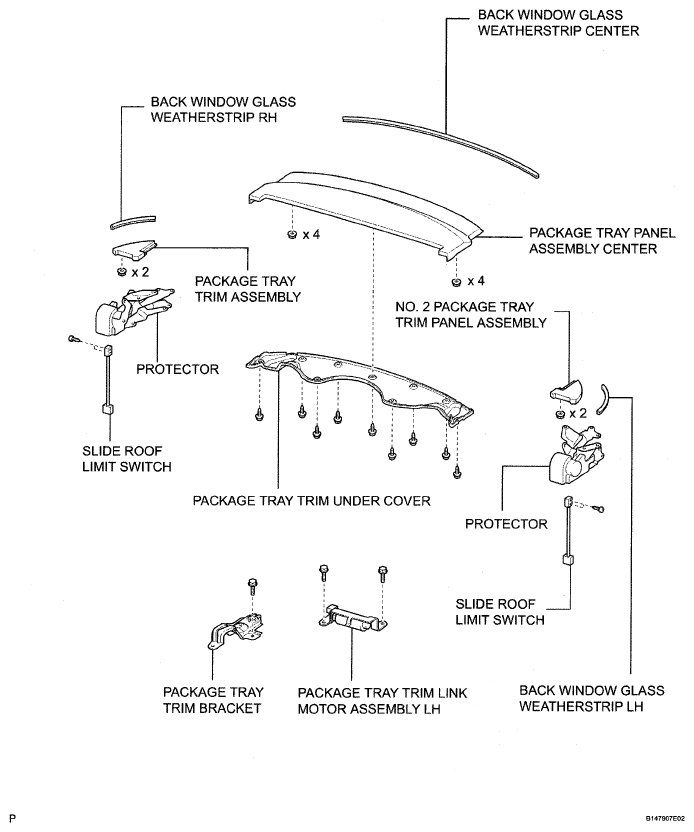

Fig 1: Identifying Package Tray Trim Components (1 Of 2)
G05294306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Package Tray Trim Replacement Components With Torque Specifications (2 Of 2)
G05294307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
