Roof Panel Link: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

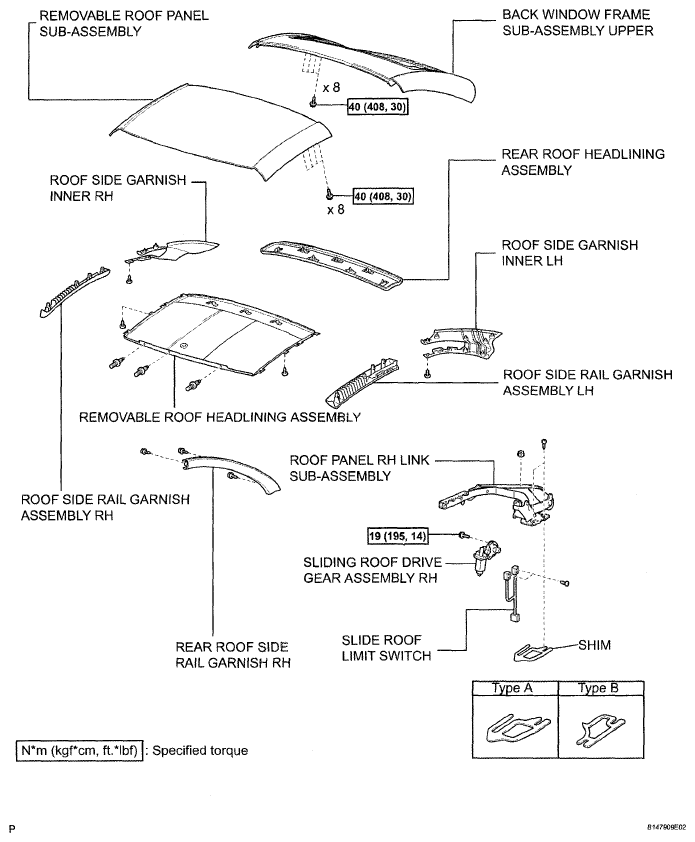

Fig 1: Roof Panel Link Replacement Components With Torque Specifications (1 Of 4)
G05294255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

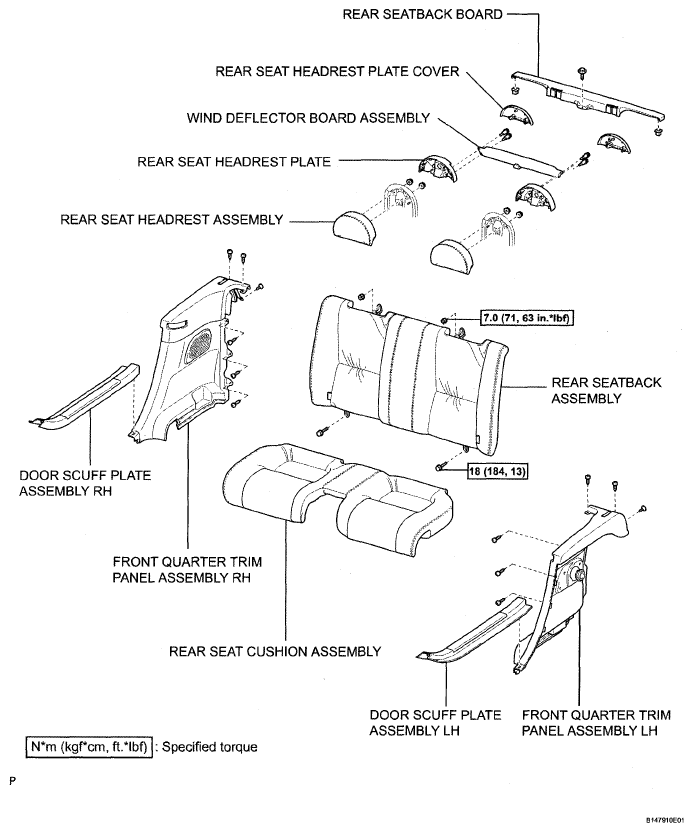

Fig 2: Roof Panel Link Replacement Components With Torque Specifications (2 Of 4)
G05294256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

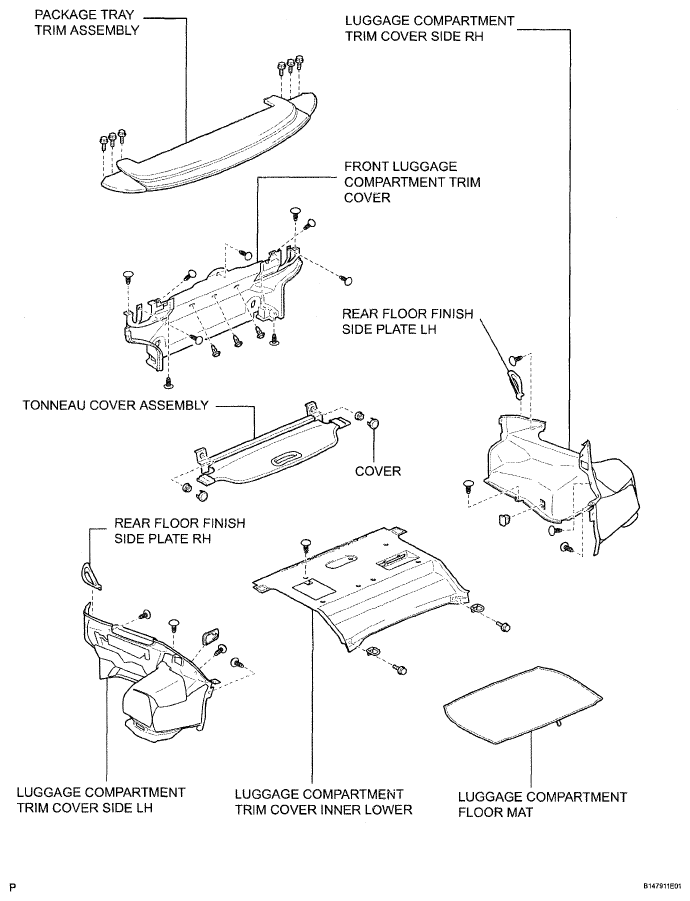

Fig 3: Identifying Roof Panel Link Components (3 Of 4)
G05294257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

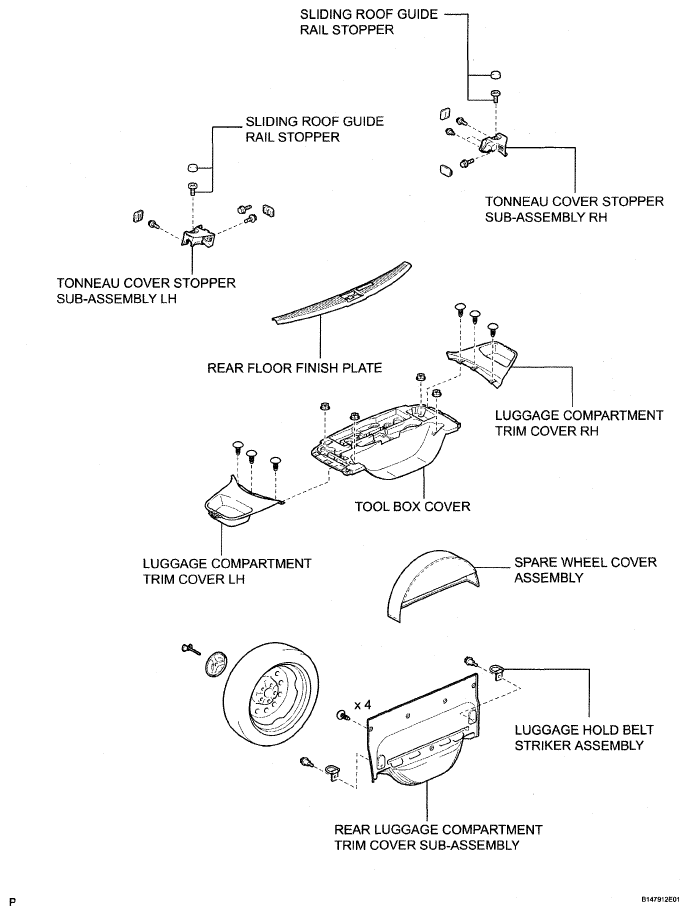

Fig 4: Identifying Roof Panel Link Components (4 Of 4)
G05294258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
