Navigation Ecu: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

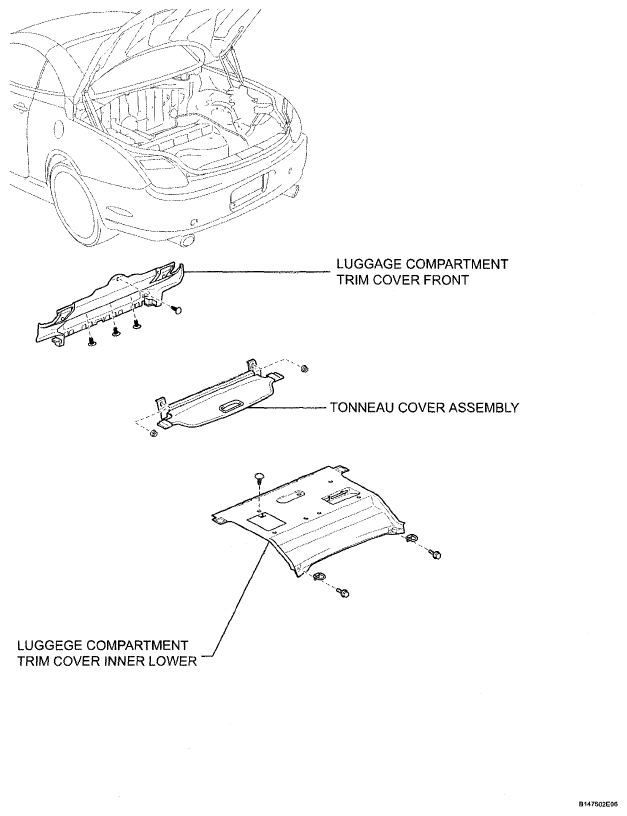

Fig 1: Identifying Navigation ECU Components (1 Of 3)
G05293365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

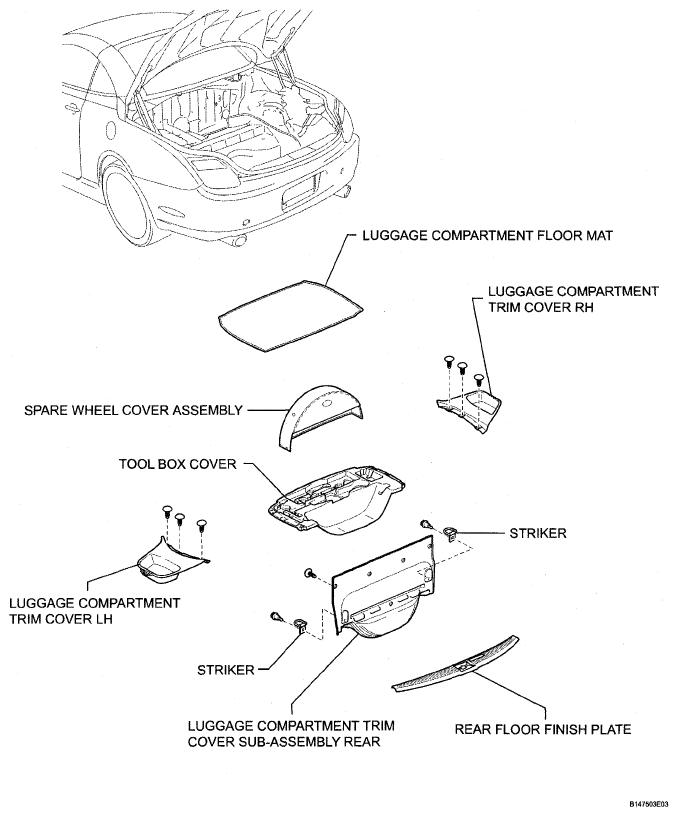

Fig 2: Identifying Navigation ECU Components (2 Of 3)
G05293366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

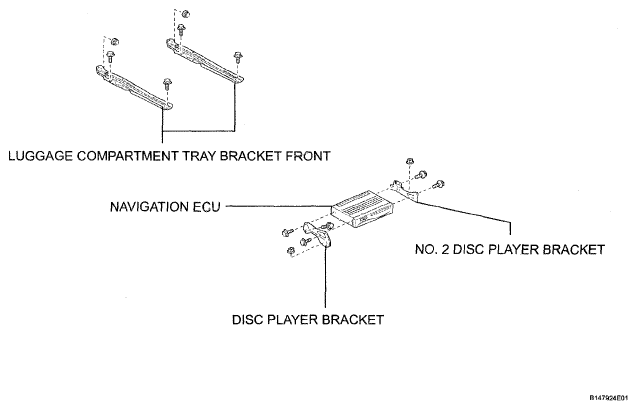

Fig 3: Identifying Navigation ECU Components (3 Of 3)
G05293367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
