Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUSE (RADIO NO. 2, P-IG, AM1, TV)
1. Remove the RADIO NO. 2 and P-IG fuses from the passenger side junction block.
2. Remove the AM1 fuse from the driver side junction block.
3. Measure the resistance of the fuses.
  Standard resistance:

  Below 1 Ω
NG: REPLACE FUSE

OK: Go to next step

INSPECT RELAY (Marking: ACC, IG1)

Remove the ACC and IG1 relay from the passenger side junction block.

Fig 1: Identifying ACC And IG1 Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance of the relays.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
3 - 5	Below 1 Ω
3 - 5	10 kΩ or higher (when battery voltage is applied to terminals 1 and 2)

NG: REPLACE RELAY

OK: Go to next step

CHECK WIRE HARNESS (INSTRUMENT CLUSTER FINISH PANEL CENTER - BATTERY AND BODY GROUND)

Disconnect the M5 panel connector.

Fig 2: Identifying M5 Panel Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance and voltage of the wire harness side connector.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connector	Specified Condition
M5-11 (GND) - Body ground	Below 1 Ω

Standard voltage

TESTER CONNECTOR SPECIFIED CONDITION CHART

Tester Connector	Condition	Specified Condition
M5-10 (+B1) - Body ground	Always	10 to 14 V
M5-20 (ACC) - Body ground	Ignition switch ACC	10 to 14 V
M5-19 (IG) - Body ground	Ignition switch ON	10 to 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

INSPECT INSTRUMENT CLUSTER FINISH PANEL CENTER

Remove the instrument cluster finish panel center.

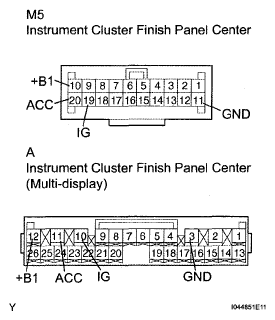

Fig 3: Identifying Instrument Cluster Finish Panel Center Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance of the panel.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
M5-10 (+B1) - A-12 (+B1)	Below 1 Ω
M5-20 (ACC) - A-11 (ACC)	Below 1 Ω
M5-19 (IG) - A-10 (IG)	Below 1 Ω
M5-11 (GND) - A-3 (GND1)	Below 1 Ω

NG: REPAIR OR REPLACE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
