Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK BRAKE WARNING LIGHT
    1. Check that the brake warning light comes on when the parking brake pedal is depressed, and goes off when the parking brake pedal is released.

    NG: Go to step  3

    OK: Go to next step

  2. INSPECT PARKING BRAKE SWITCH ASSEMBLY
    1. Disconnect the P3 switch connector.
      Fig 1: Identifying P3 Switch Connector Terminals
      G05293310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Condition Specified Condition
      Switch connector - Switch body Pushed Below 1 Ω
      Switch connector - Switch body Not pushed 10 kΩ or higher

    NG: REPLACE PARKING BRAKE SWITCH ASSEMBLY

    OK: Go to next step

  3. CHECK WIRE HARNESS (PARKING BRAKE SWITCH - INSTRUMENT CLUSTER FINISH PANEL)
    1. Disconnect the M5 panel connector.

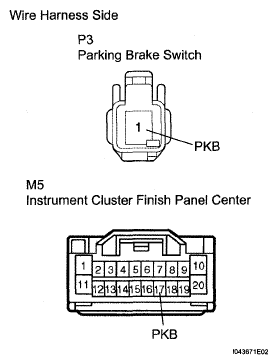

      Fig 2: Identifying M5 Panel Connector Terminals
      G05293311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the P3 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      M5-17 (PKB) - P3-1 Below 1 Ω
      M5-17 (PKB) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

  4. INSPECT INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    1. Remove the instrument cluster finish panel sub-assembly center.

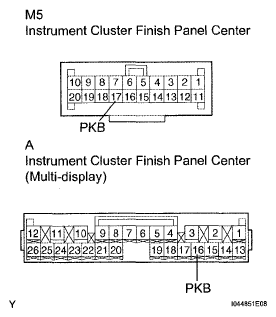

      Fig 3: Identifying Instrument Cluster Finish Panel Connector Terminals
      G05293312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the panel.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      M5-17 (PKB) - A-16 (PKB) Below 1 Ω

    NG: REPAIR OR REPLACE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
