Parts Location

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

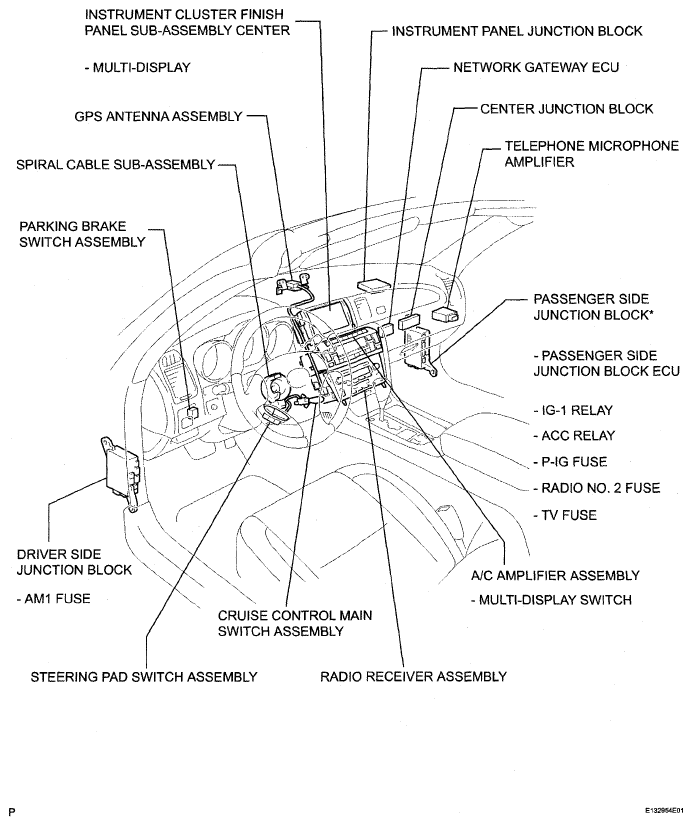

Fig 1: Identifying Navigation System Components Location (1 Of 2)
G05293185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

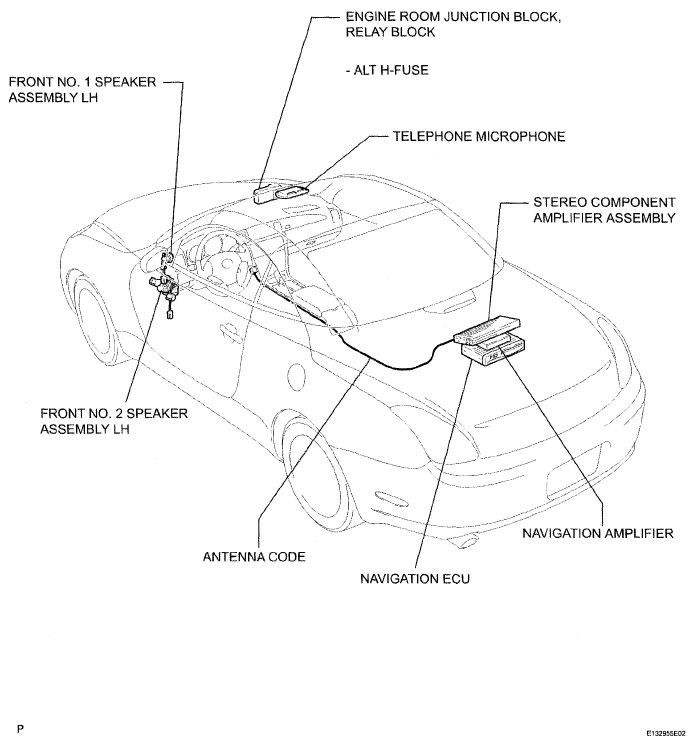

Fig 2: Identifying Navigation System Components Location (1 Of 2)
G05293186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
