Power Door Lock Control System

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM
HINT: The following items can be customized.
NOTICE:
- Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
- Be sure to record the current settings before customizing.
- When troubleshooting, make sure that the item in question has not been disabled using the customizing function.

(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester on.
(d) Enter the following menus: Customize Setting / Door Lock.

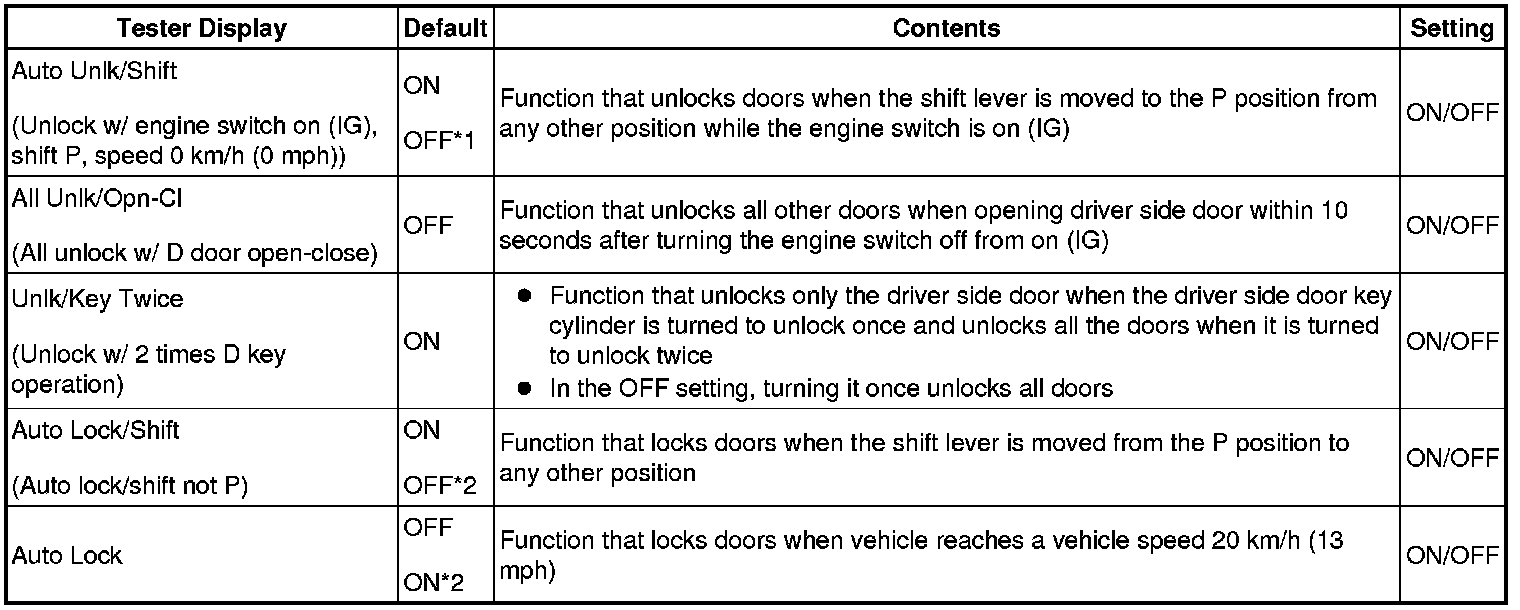

(e) Select the setting by referring to the table below.

Door Lock:





*1: for Brazil
*2: for Korean and Brazil

Wireless D Lock:
