MIRROR: OUTER MIRROR CONTROL ECU:

INSTALLATION

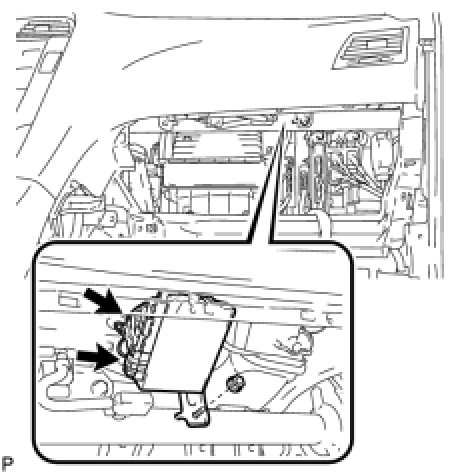

1. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY





(a) Install the outer mirror control ECU assembly with the nut.
(b) Connect the 2 connectors.
2. INSTALL LOWER INSTRUMENT PANEL RH Installation
3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
4. INSTALL SIDE INSTRUMENT PANEL RH Installation
5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
6. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
7. INSTALL FRONT DOOR SCUFF PLATE RH Installation
8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM INITIALIZATION
NOTE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

11. INSPECT SRS WARNING LIGHT Diagnosis System
