CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR:

INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

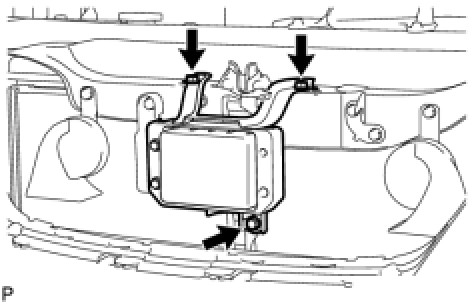

(a) Install the millimeter wave radar sensor assembly with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. ADJUST MILLIMETER WAVE RADAR SENSOR Adjustments
6. PERFORM INITIALIZATION
NOTE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

7. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments
8. PREPARATION FOR FOG LIGHT AIMING Adjustments
9. FOG LIGHT AIMING INSPECTION Adjustments
10. FOG LIGHT AIMING ADJUSTMENT Adjustments
