Home
>>
Lexus
>>
2009
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
ECM Connector Views
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

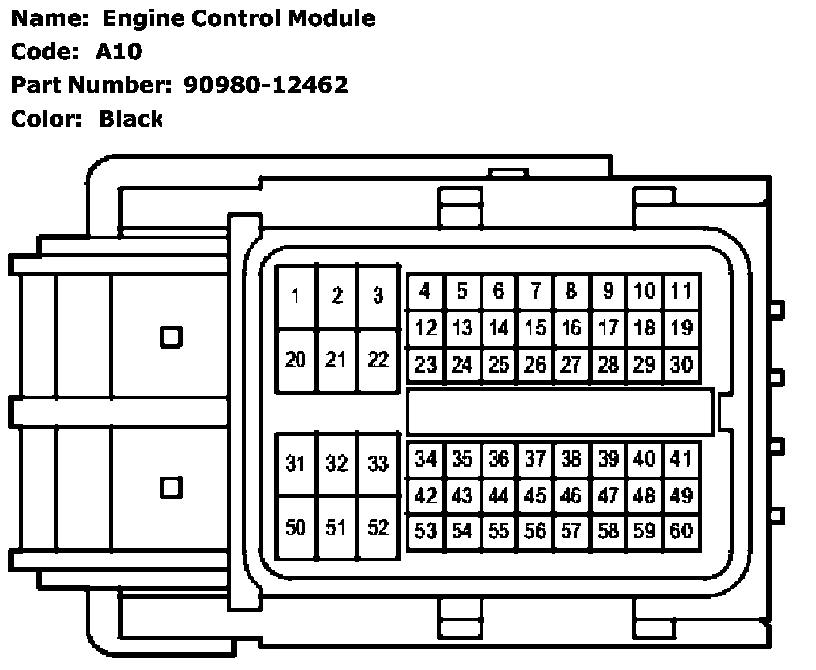

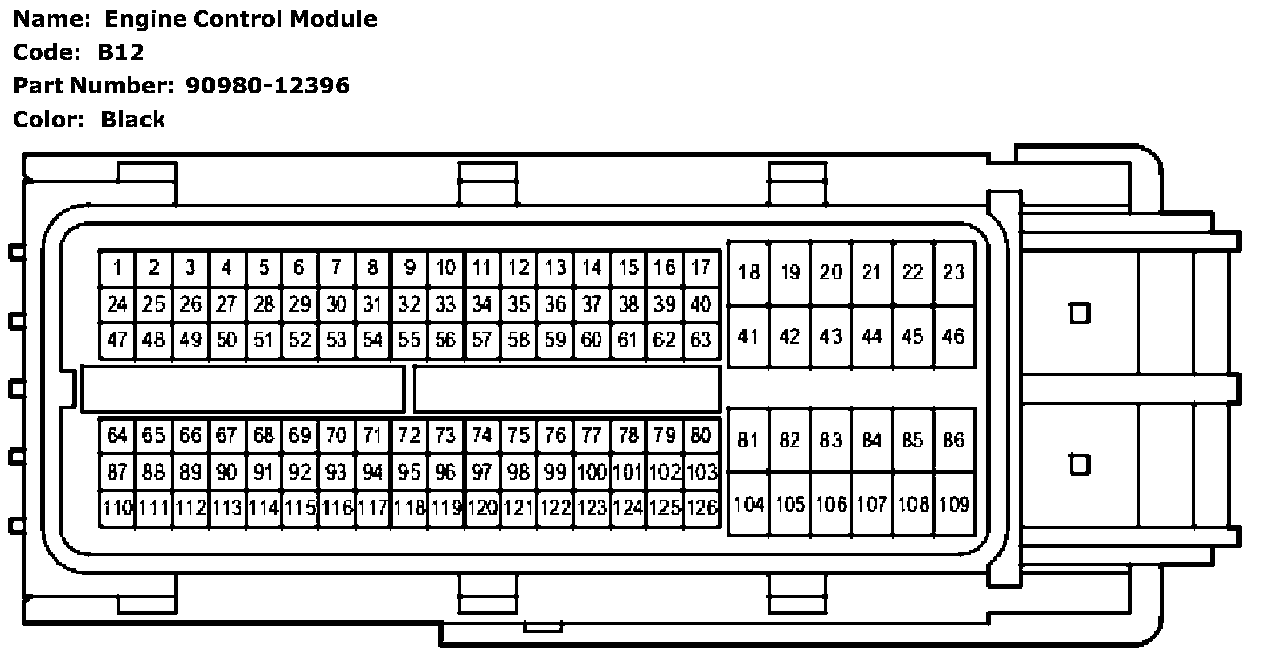

ECM Connector Views
