Knock Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSPECTION

INSPECTION

1. INSPECT KNOCK CONTROL SENSOR

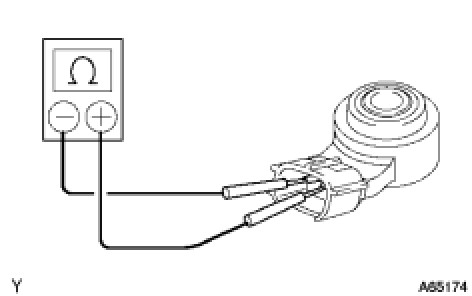

(a) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:
120 to 280 kOhms at 20°C (68°F)
If the result is not as specified, replace the sensor.
