EFI Relay








2GR-FE ENGINE CONTROL SYSTEM: EFI RELAY: INSPECTION

INSPECTION

1. INSPECT EFI RELAY

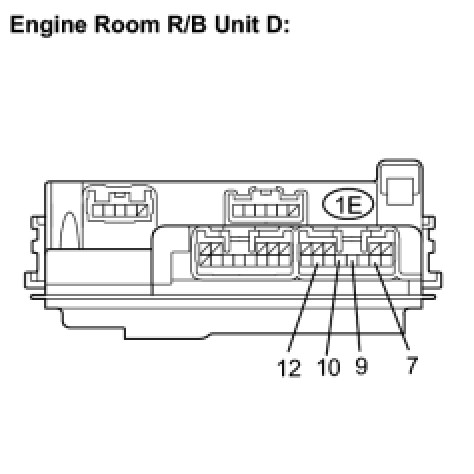

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.

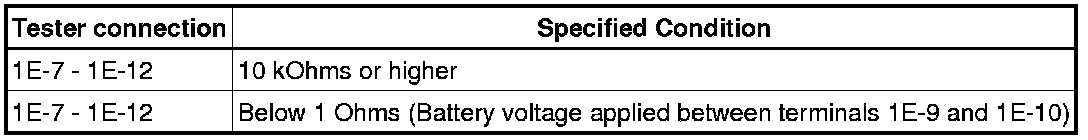

Standard resistance:
