Installation

U660E AUTOMATIC TRANSAXLE: TCM:

INSTALLATION

1. INSTALL TCM
(a) Install the TCM to the transaxle.

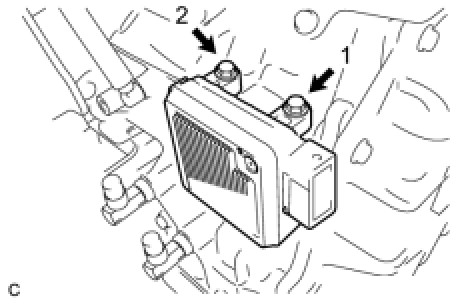

(b) Install and tighten the 2 bolts in the order shown in the illustration.
Torque: 11 Nm (115 kgf-cm, 8 ft-lbf)

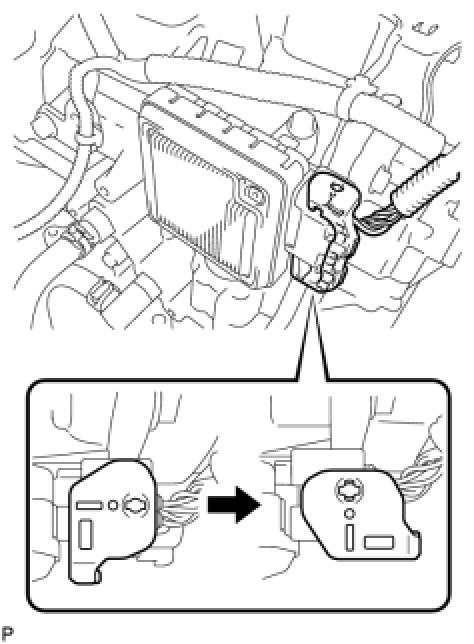

(c) Connect the connector to the TCM.
(d) Turn the lock lever and secure the connector with the lock lever.
2. INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY Installation
3. INSTALL NO. 1 AIR CLEANER INLET Installation
4. INSTALL AIR CLEANER INLET ASSEMBLY Installation
5. INSTALL BATTERY Installation
6. INSTALL COOL AIR INTAKE DUCT SEAL Installation
7. PERFORM TCM REGISTRATION
HINT: Registration

8. PERFORM INITIALIZATION
(a) Perform initialization procedure Repair Instruction - Initialization.
NOTE:
Some systems need initialization after reconnecting the cable to the negative battery terminal.
