Power Window Master Switch Power Source Circuit: Procedure

CHECK WIRE HARNESS

Disconnect the I5 connector.

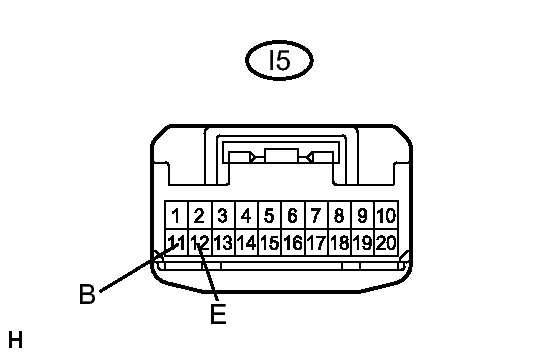

Fig 1: Identifying I5 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage and resistance according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
I5-11 (B) - Body ground	Engine switch on (IG)	10 to 14 V

Standard Resistance

Tester Connection	Condition	Specified Condition
I5-12 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE FUSE, HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
