System Diagram

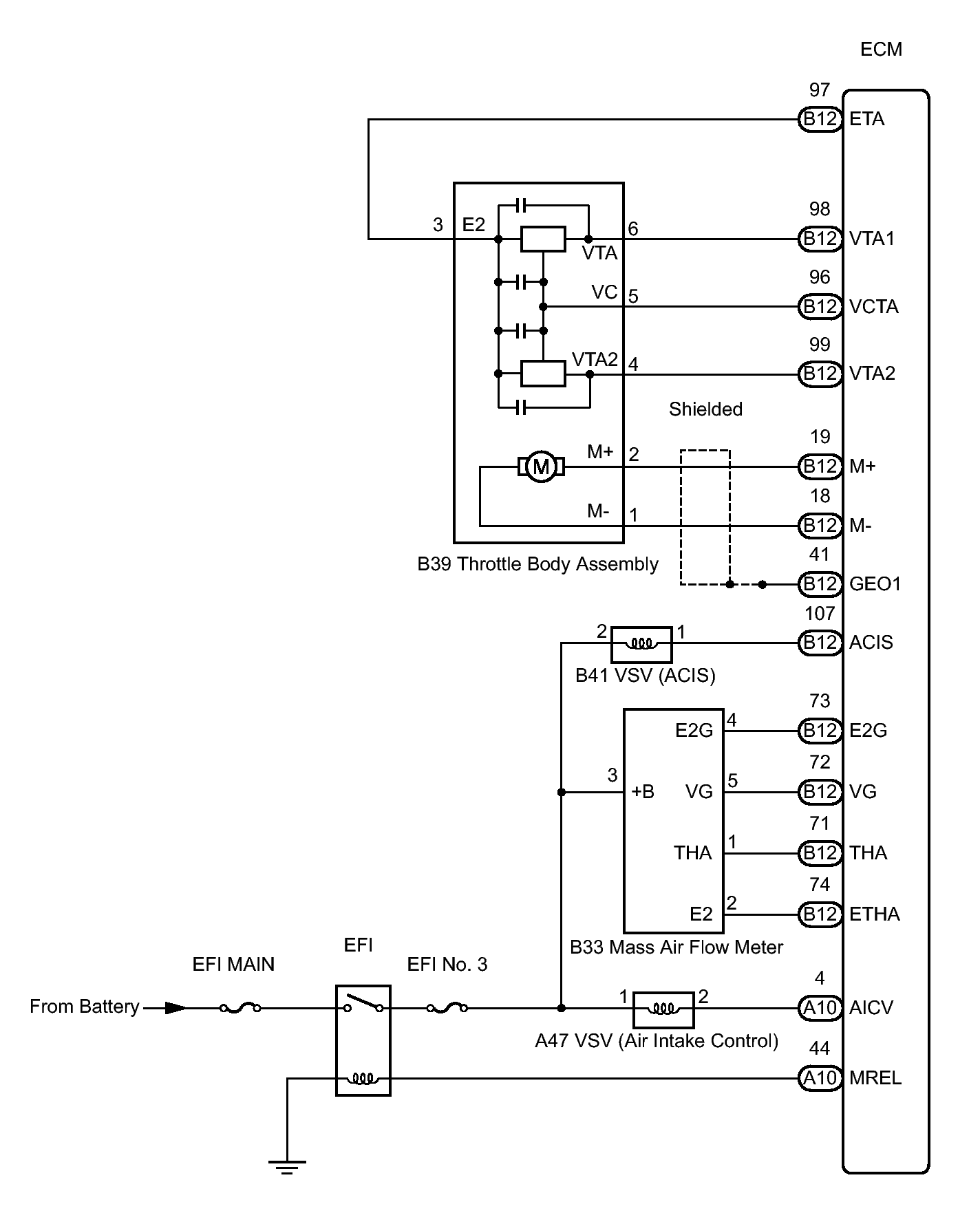

Fig 1: Identifying ECM, Intake Air Control, Mass Air Flow Meter And Throttle Body Assembly Schematic
GTY136102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
