Accelerator Pedal: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal connector.

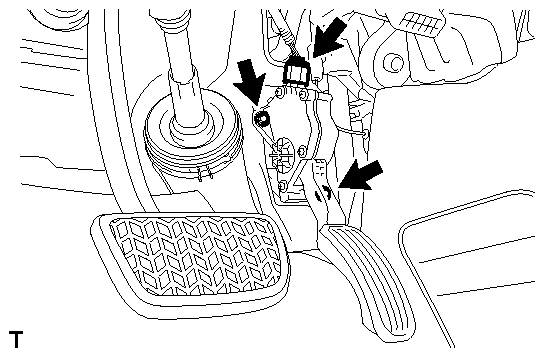

      Fig 1: Identifying Accelerator Pedal Rod, Connector And Bolts
      GTY138878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and the accelerator pedal assembly.
