Active Control Engine Mount Ecu: Installation: Installation

INSTALL ACTIVE CONTROL ENGINE MOUNT ECU
1. Install the active control engine mount ECU with the nut.

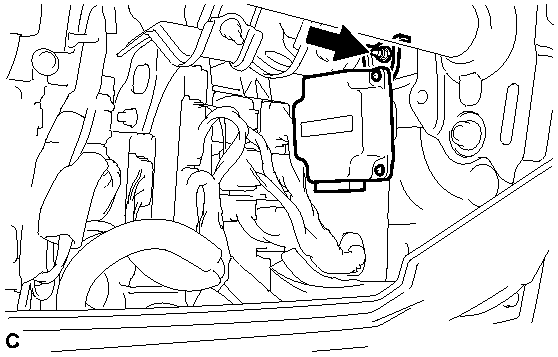

  Fig 1: Identifying Active Control Engine Mount ECU With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m ( 133 kgf*cm, 10 ft.*lbf)
2. Connect the connector.

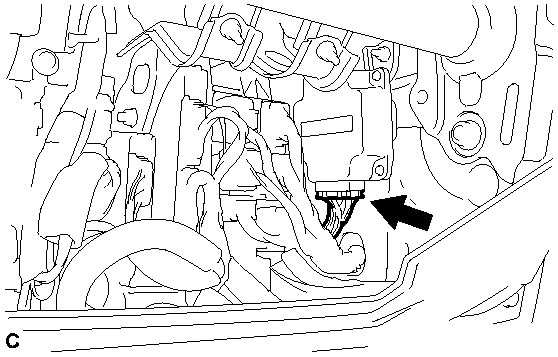

  Fig 2: Identifying Active Control Engine Mount ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL RH . Refer to INSTALLATION - Step 30
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL FRONT DOOR OPENING TRIM COVER RH . Refer to INSTALLATION - Step 49
INSTALL FRONT DOOR SCUFF PLATE RH . Refer to INSTALLATION - Step 50
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 45
INSTALL SIDE INSTRUMENT PANEL RH . Refer to INSTALLATION - Step 46
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected . Refer to INITIALIZATION .
INSPECT FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to ON-VEHICLE INSPECTION - Step 1
INSPECT SRS WARNING LIGHT . Refer to ON-VEHICLE INSPECTION - Step 1
