Camshaft Timing Oil Control Valve Assembly: Inspection: Inspection

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Resistance inspection.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Standard resistance

    6.9 to 7.9 Ω at 20°C (68°F)

    If necessary, replace the camshaft timing oil control valve assembly.
2. Movement inspection.

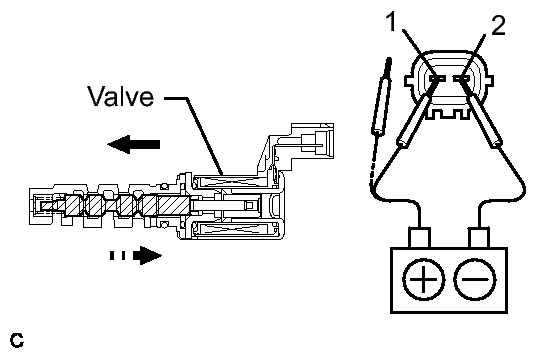

  Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check the movement of the valve.
    NOTE:
    Confirm that the valve moves freely and does not stick in any position.

    If necessary, replace the camshaft timing oil control valve assembly.

    HINT:

    Accumulation of foreign objects causes subtle pressure leaks. The subtle pressure leaks will cause the camshaft to advance, and this will cause a DTC to be set.
