Acceleration Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected . Refer to INITIALIZATION .

  2. REMOVE ENGINE UNDER COVER LH
  3. REMOVE ENGINE UNDER COVER RH
  4. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 11
  5. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 12
  6. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 14
  7. REMOVE AIR CLEANER INLET ASSEMBLY  . Refer to REMOVAL - Step 16
  8. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 19
  9. REMOVE ACCELERATION SENSOR
    1. Disconnect the acceleration sensor connector and clamp.

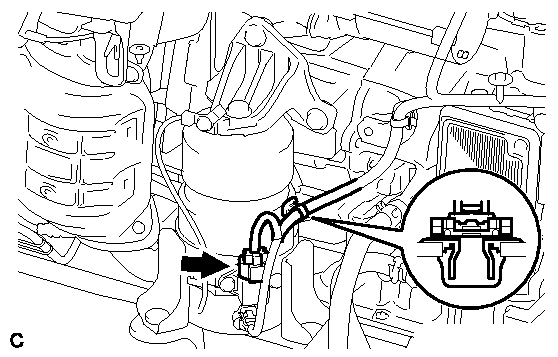

      Fig 1: Identifying Acceleration Sensor Connector And Clamp
      GTY146466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and acceleration sensor.

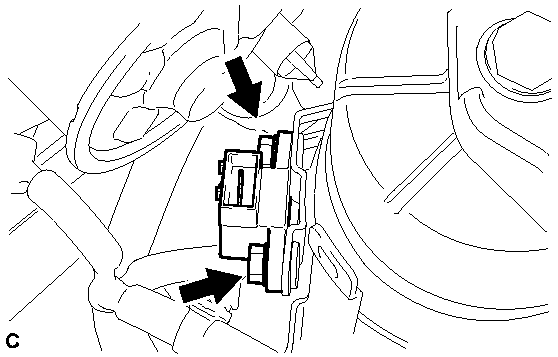

      Fig 2: Identifying Acceleration Sensor With Nuts
      GTY146465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
