ATF Temperature Sensor: Installation: Installation

INSTALL ATF TEMPERATURE SENSOR ASSEMBLY
1. Coat a new O-ring with ATF and install it to the ATF temperature sensor assembly.

  Fig 1: Identifying ATF Temperature Sensor O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the 4 bolts with ATF.
3. Install the ATF temperature sensor assembly and clamp to the valve body with the 4 bolts.

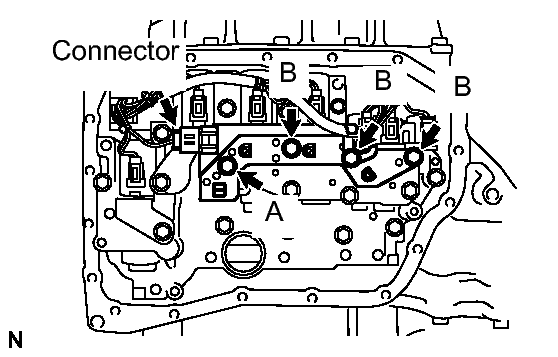

  Fig 2: Locating ATF Temperature Sensor Assembly, Bolts And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m ( 112 kgf*cm, 8 ft.*lbf)

  Bolt length

  Bolt A

  25 mm (0.98 in.)

  Bolt B

  85 mm (3.35 in.)
4. Connect the connector.
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step />
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step />
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

Refer to INSTALLATION
