Skid Control Sensor: Components: Illustration

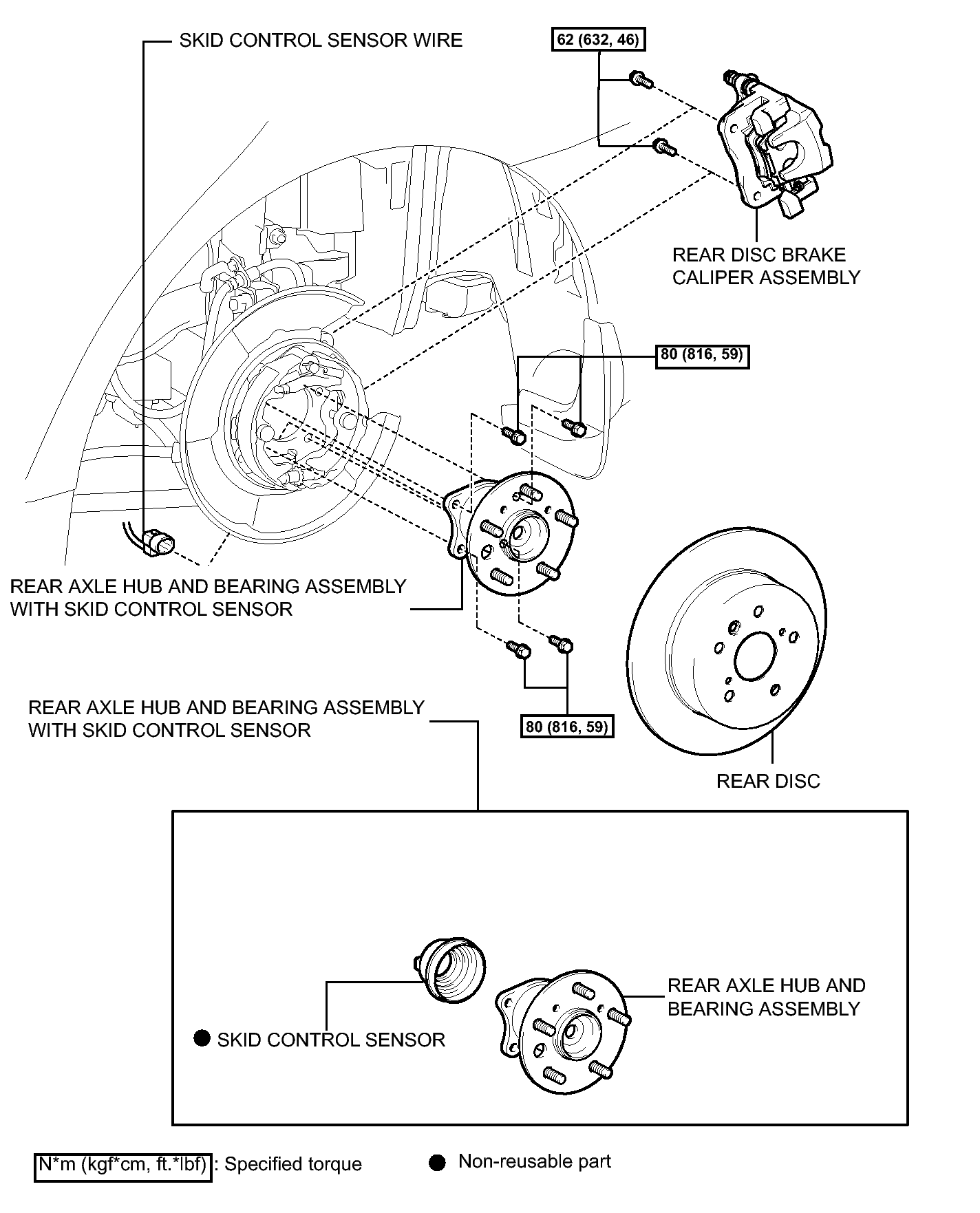

Fig 1: Identifying Skid Control Sensor Replacement Components With Torque Specifications
GTY111370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
