Headlight Beam Level Control (w/o Adaptive Front-Lighting System): Notes

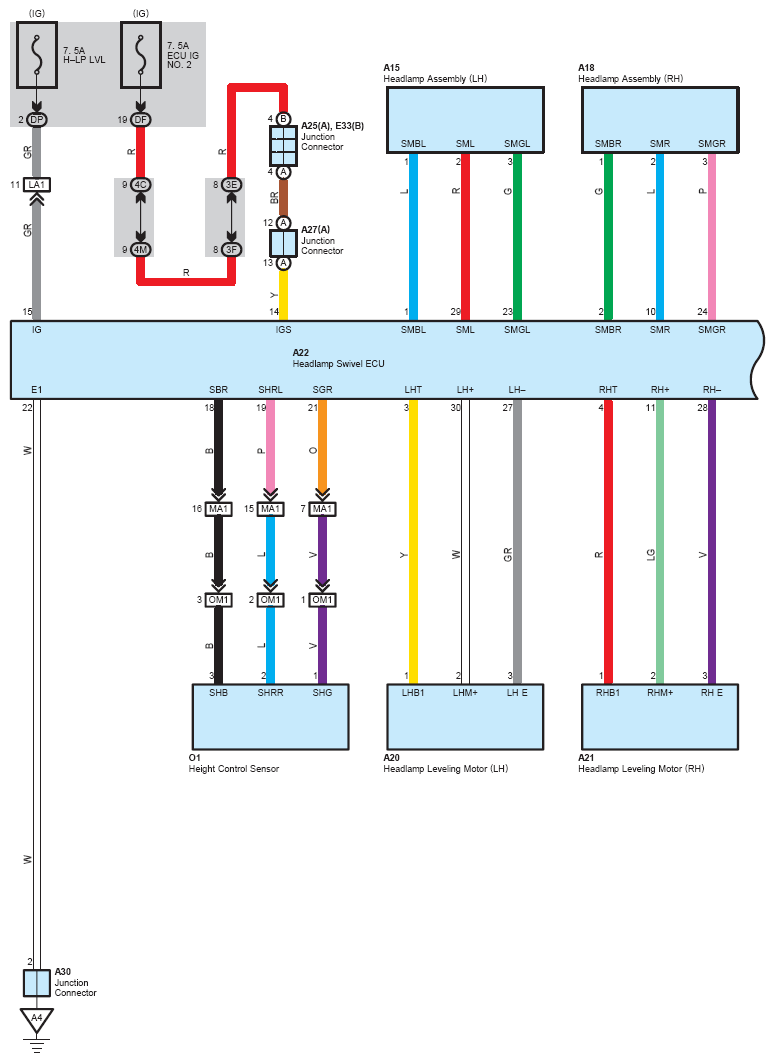

Fig 1: Headlight Beam Level Control (W/O Adaptive Front-Lighting System) - Circuit Diagram (1 Of 4)
G07625134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

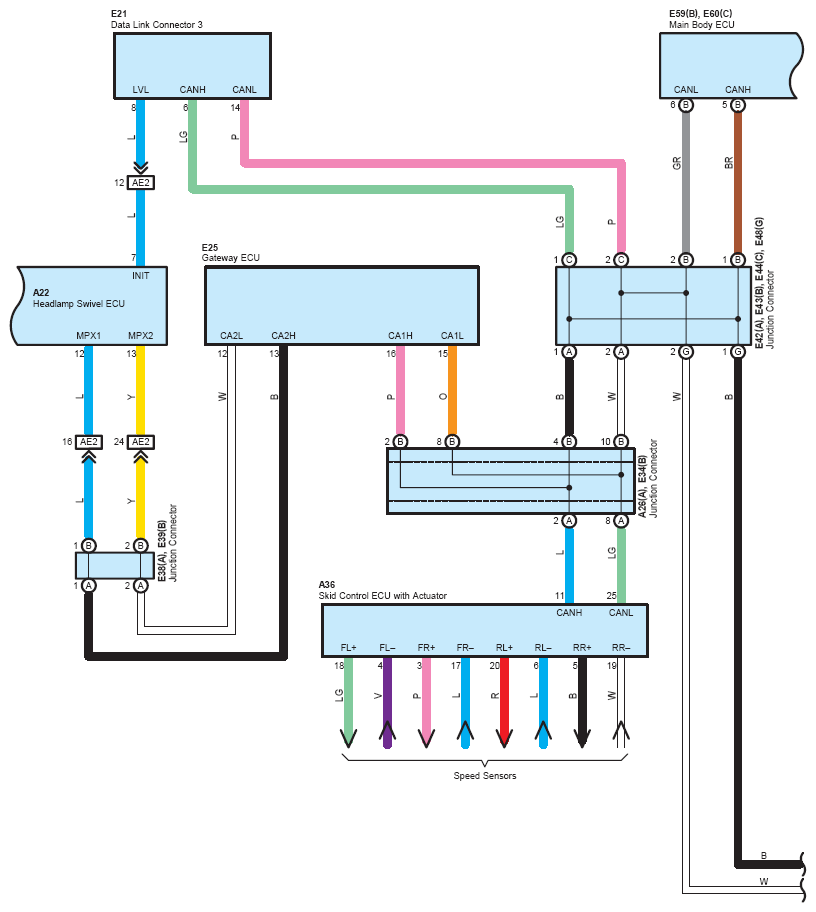

Fig 2: Headlight Beam Level Control (W/O Adaptive Front-Lighting System) - Circuit Diagram (2 Of 4)
G07625135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

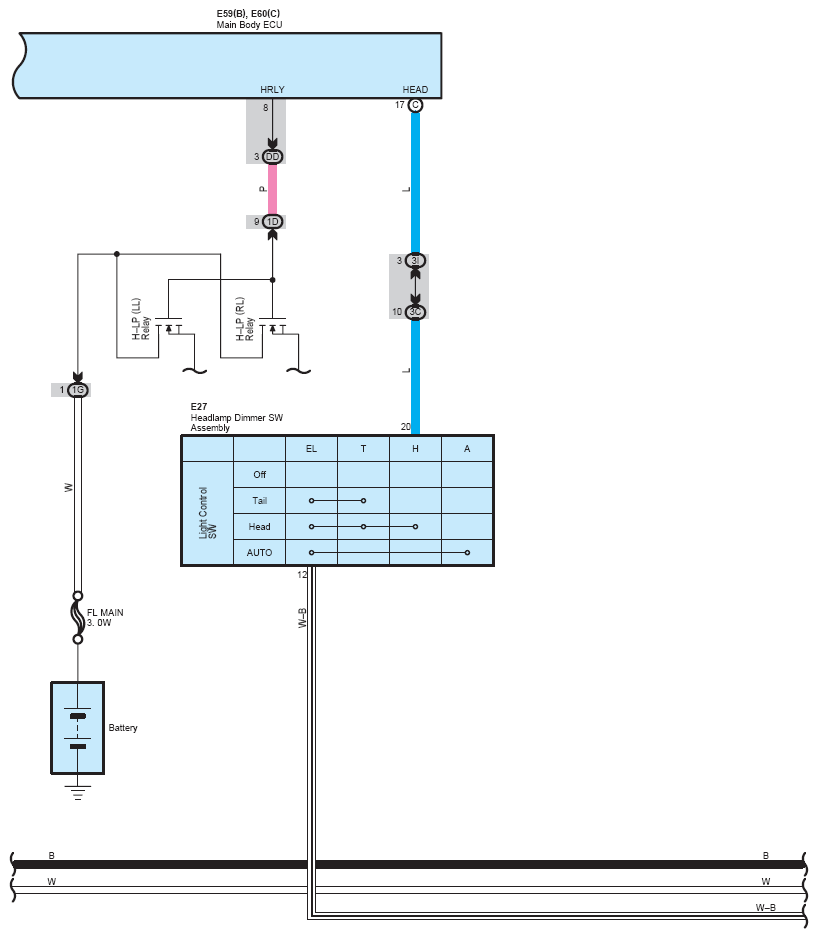

Fig 3: Headlight Beam Level Control (W/O Adaptive Front-Lighting System) - Circuit Diagram (3 Of 4)
G07625136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

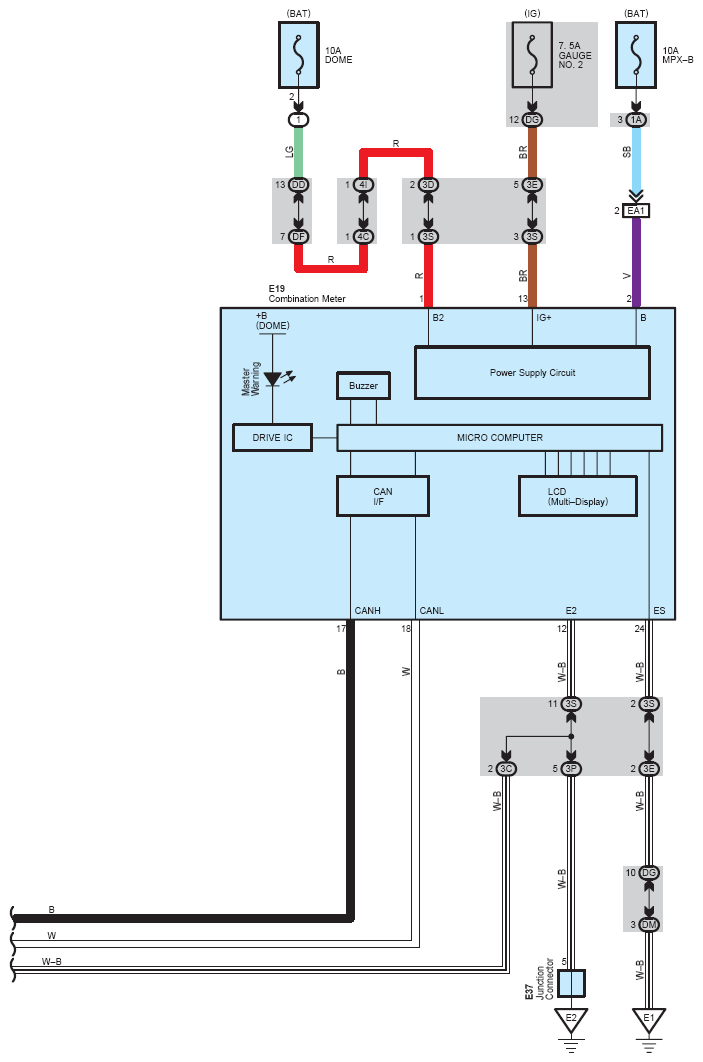

Fig 4: Headlight Beam Level Control (W/O Adaptive Front-Lighting System) - Circuit Diagram (4 Of 4)
G07625137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
