Light Auto Turn Off System: Notes

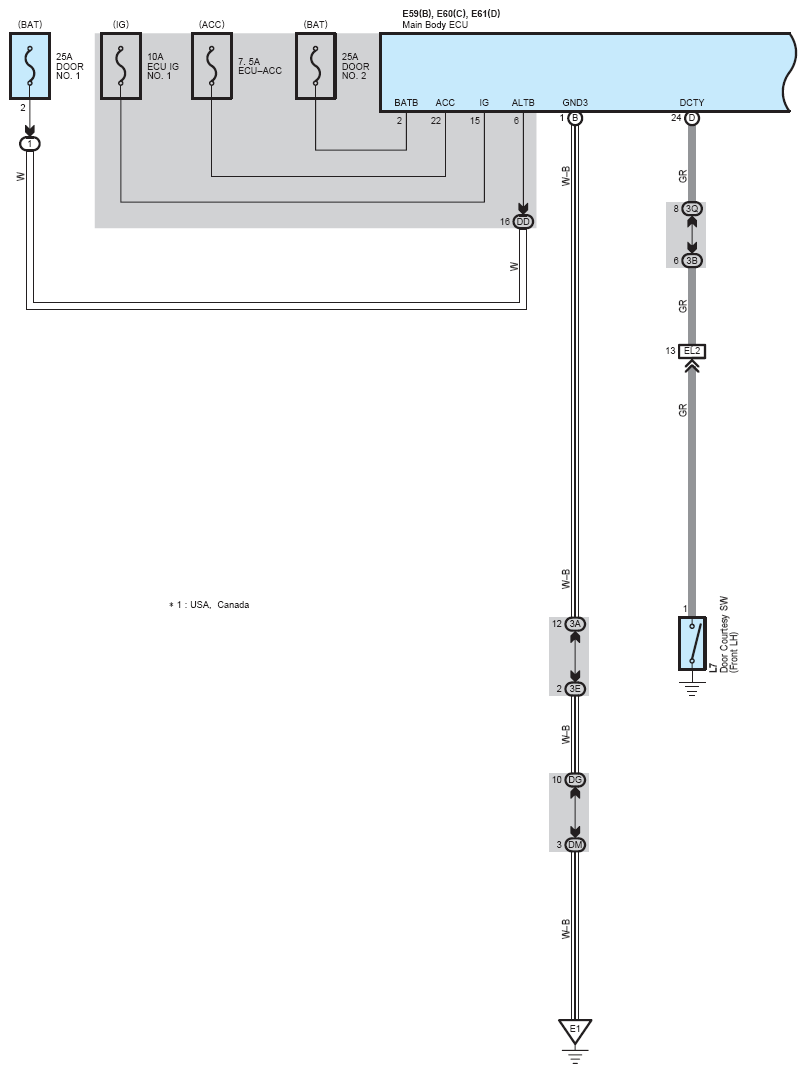

Fig 1: Light Auto Turn Off System - Circuit Diagram (1 Of 3)
G07625127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

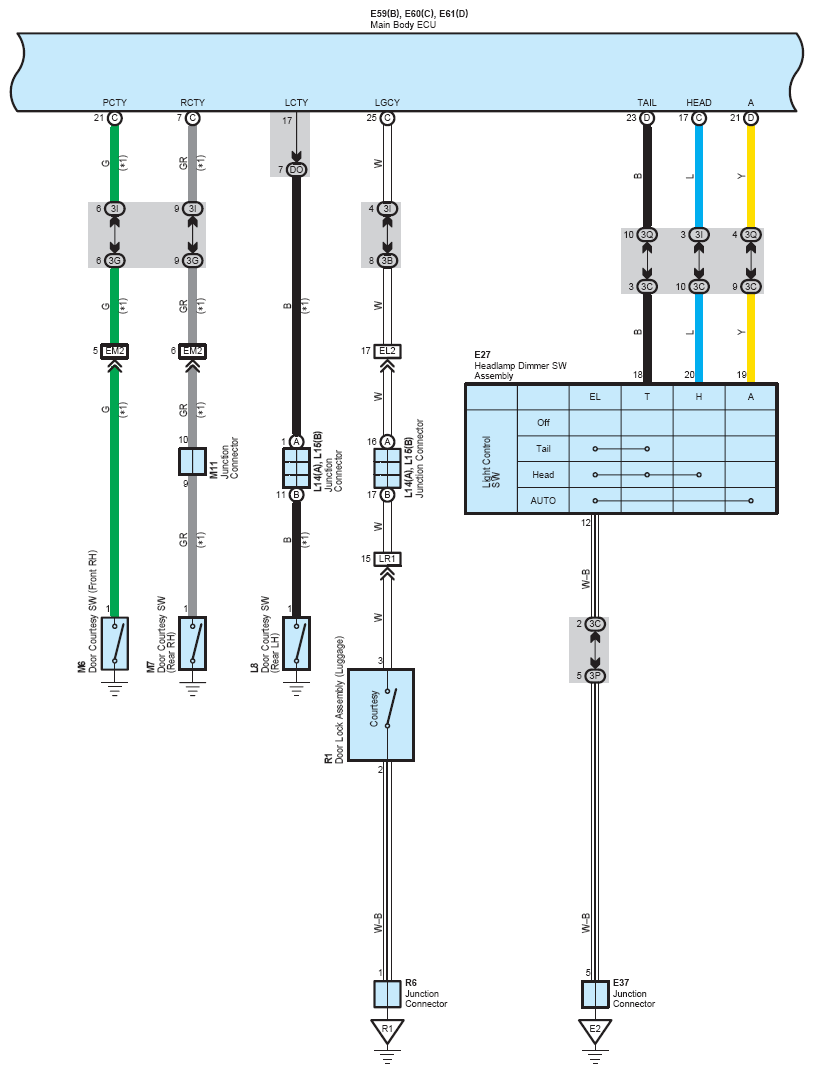

Fig 2: Light Auto Turn Off System - Circuit Diagram (2 Of 3)
G07625128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

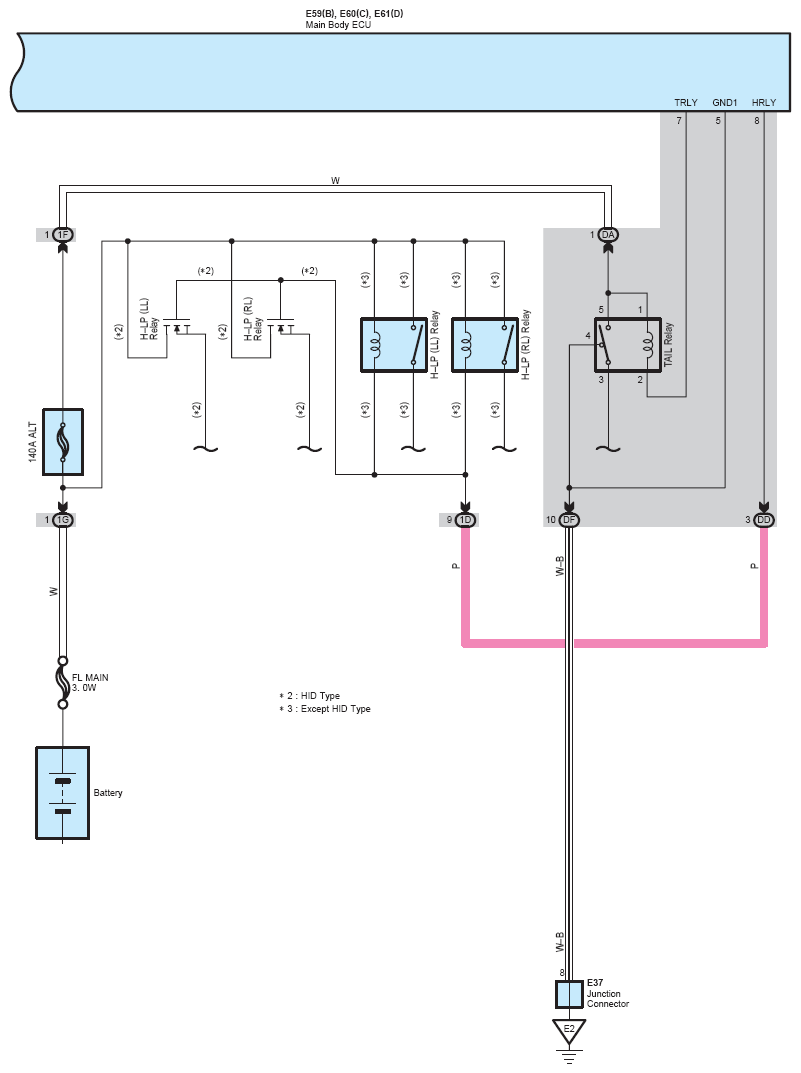

Fig 3: Light Auto Turn Off System - Circuit Diagram (3 Of 3)
G07625129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
