Sliding Roof: Notes

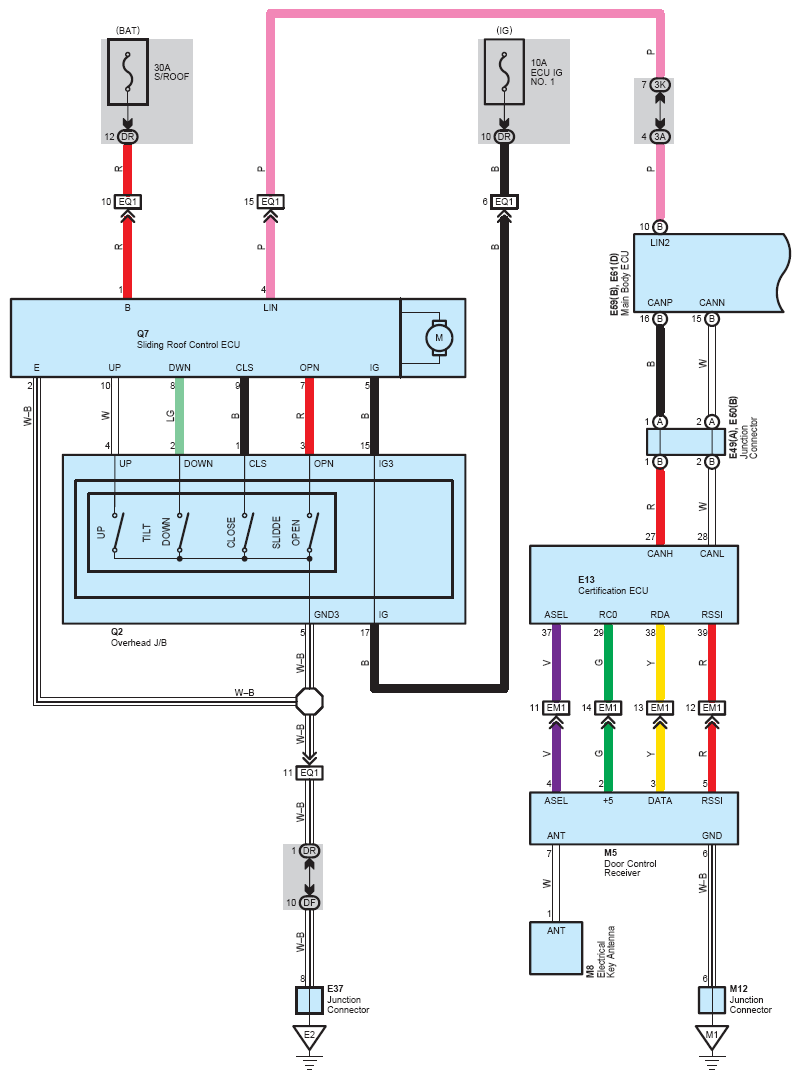

Fig 1: Sliding Roof - Circuit Diagram (1 Of 2)
G07625218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof - Circuit Diagram (2 Of 2)
G07625219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
