Theft Deterrent: Notes

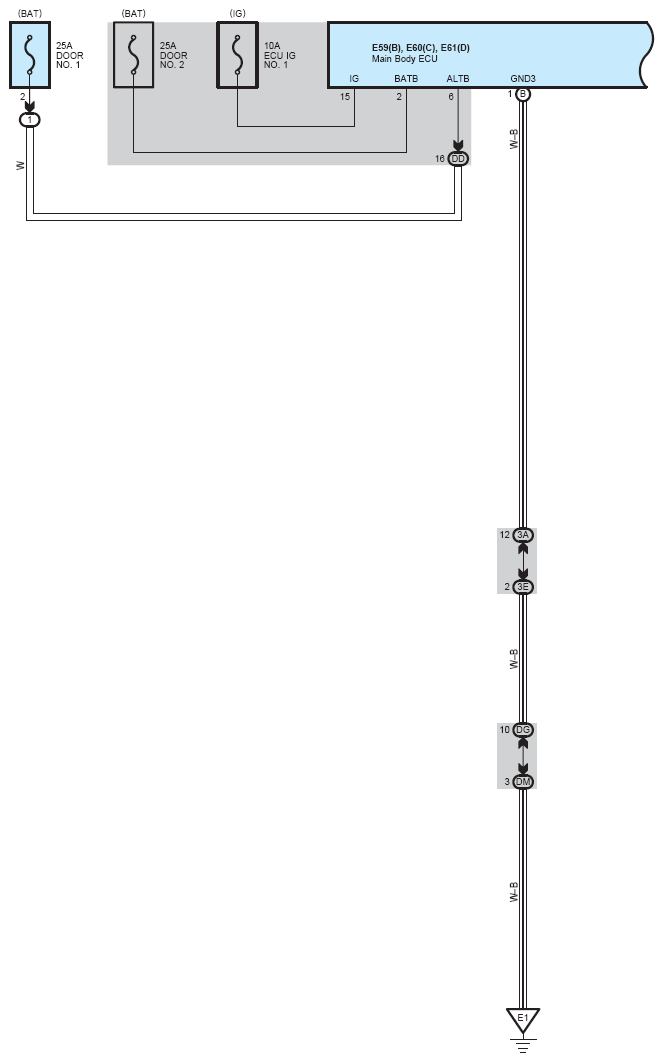

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 9)

G07625155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

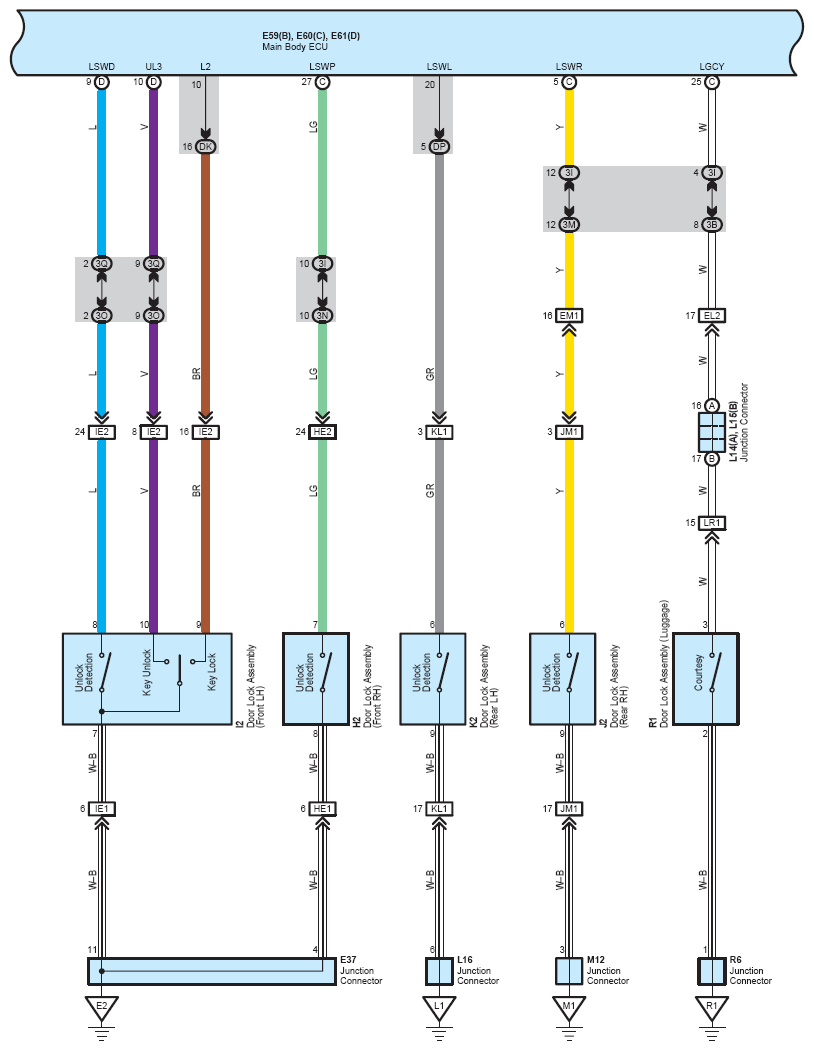

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 9)

G07625156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

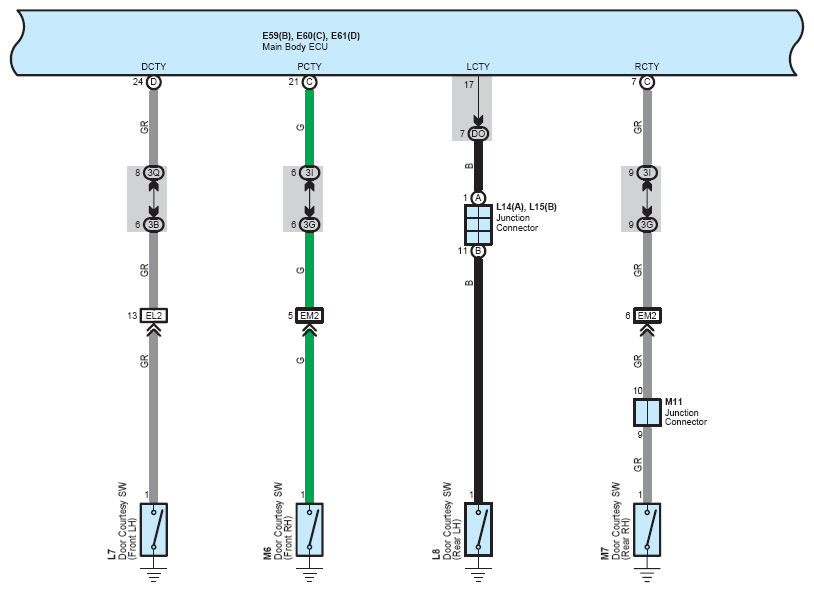

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 9)

G07625157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

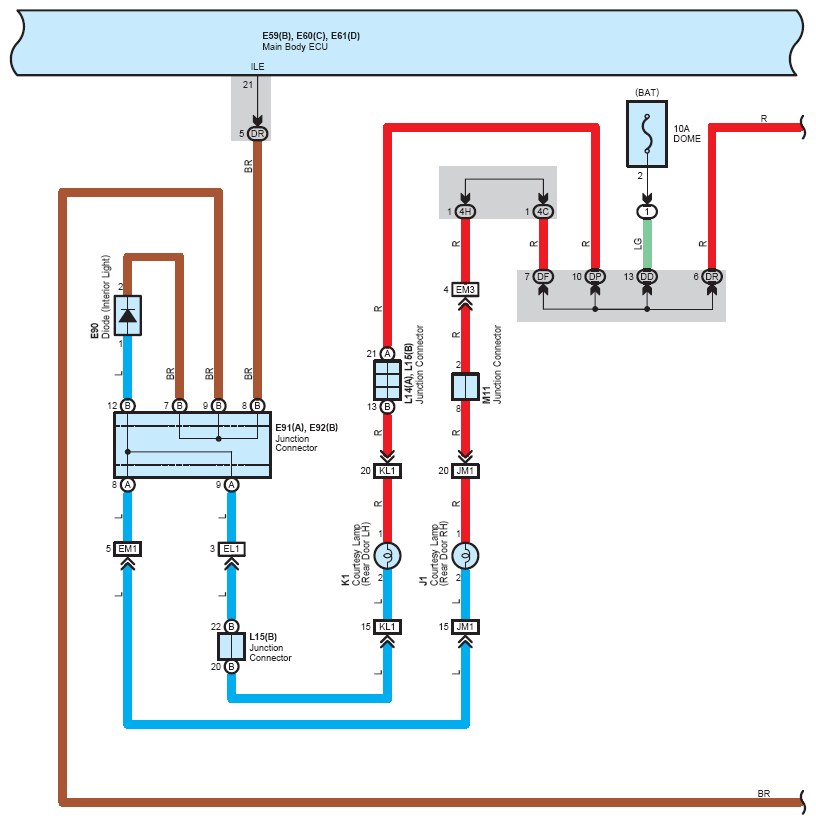

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 9)

G07625158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

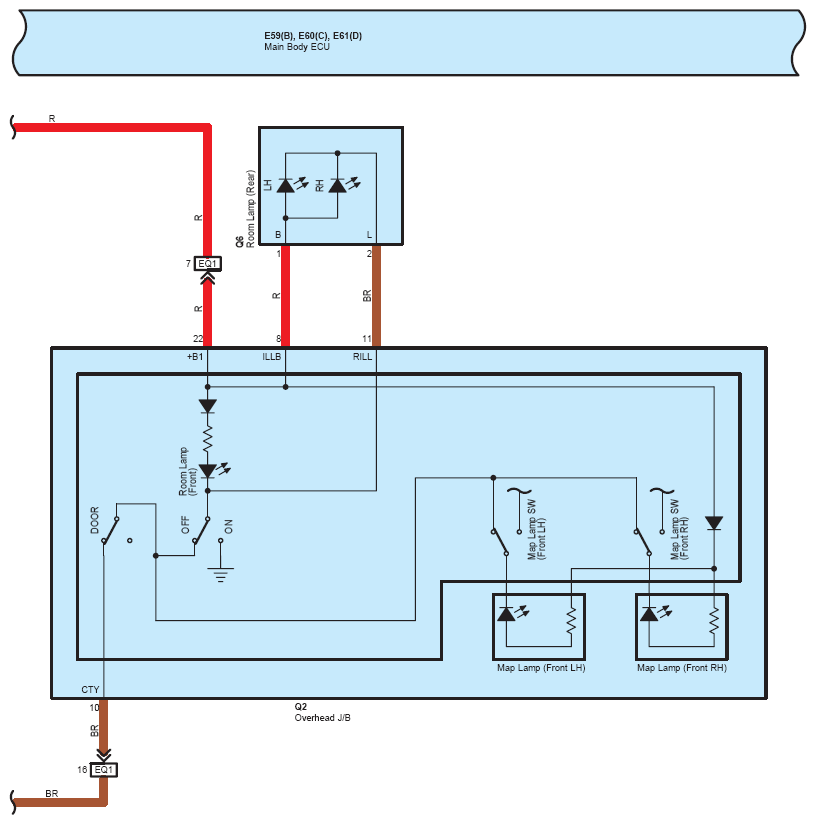

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 9)

G07625159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

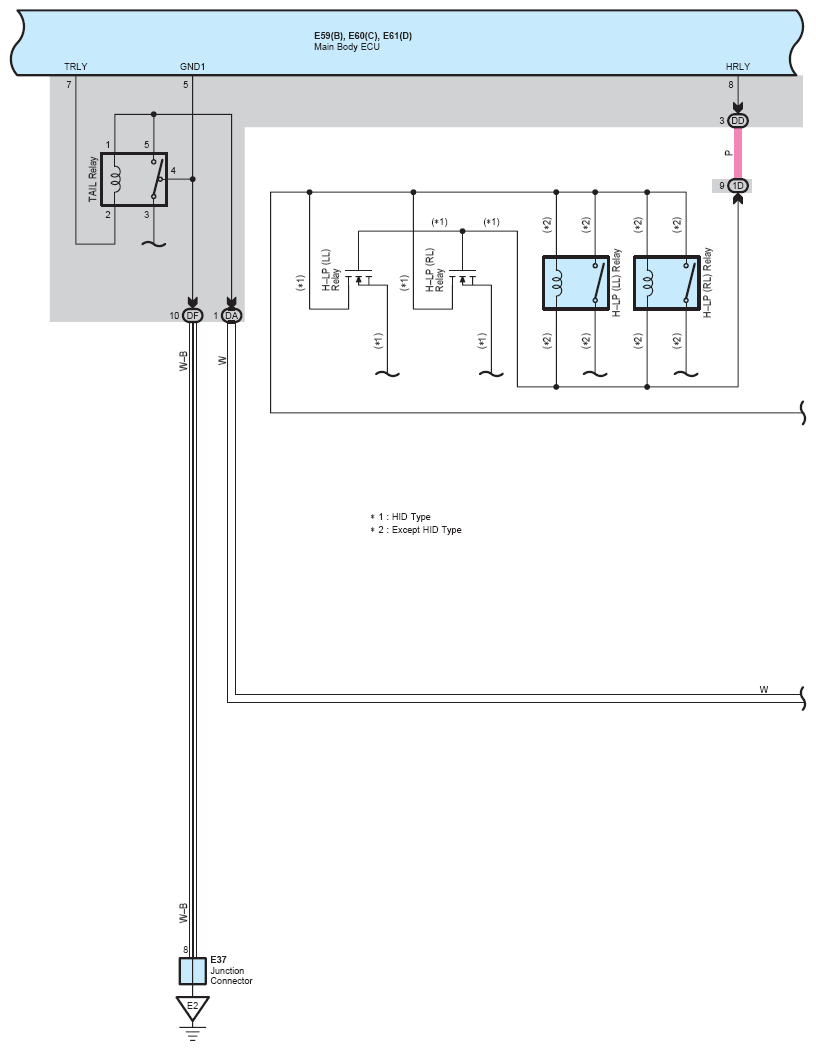

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 9)

G07625160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

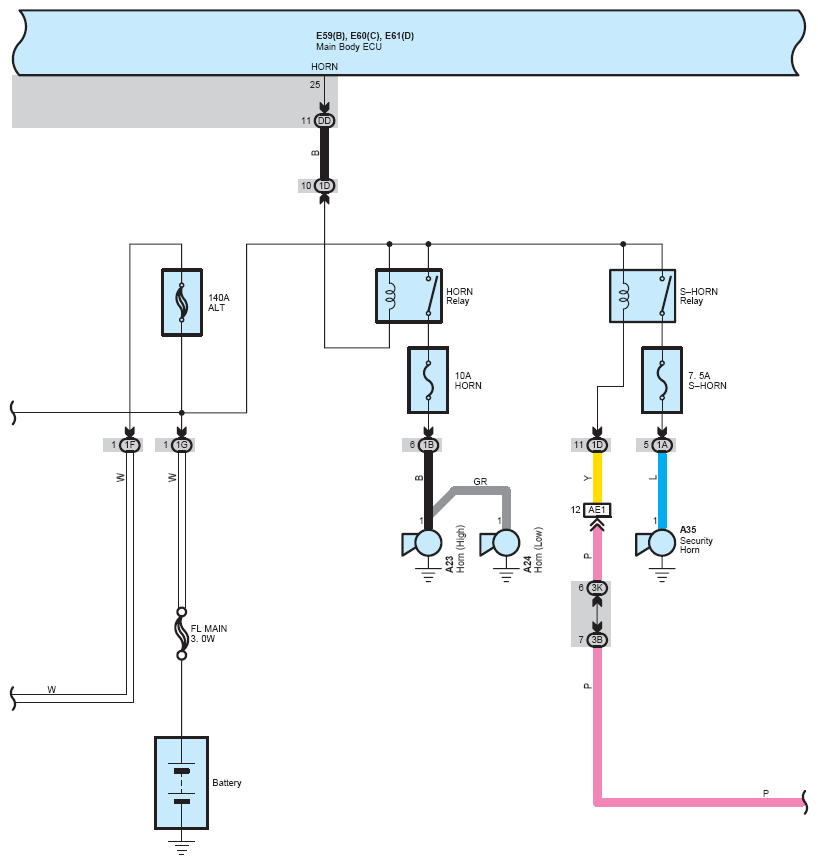

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 9)

G07625161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

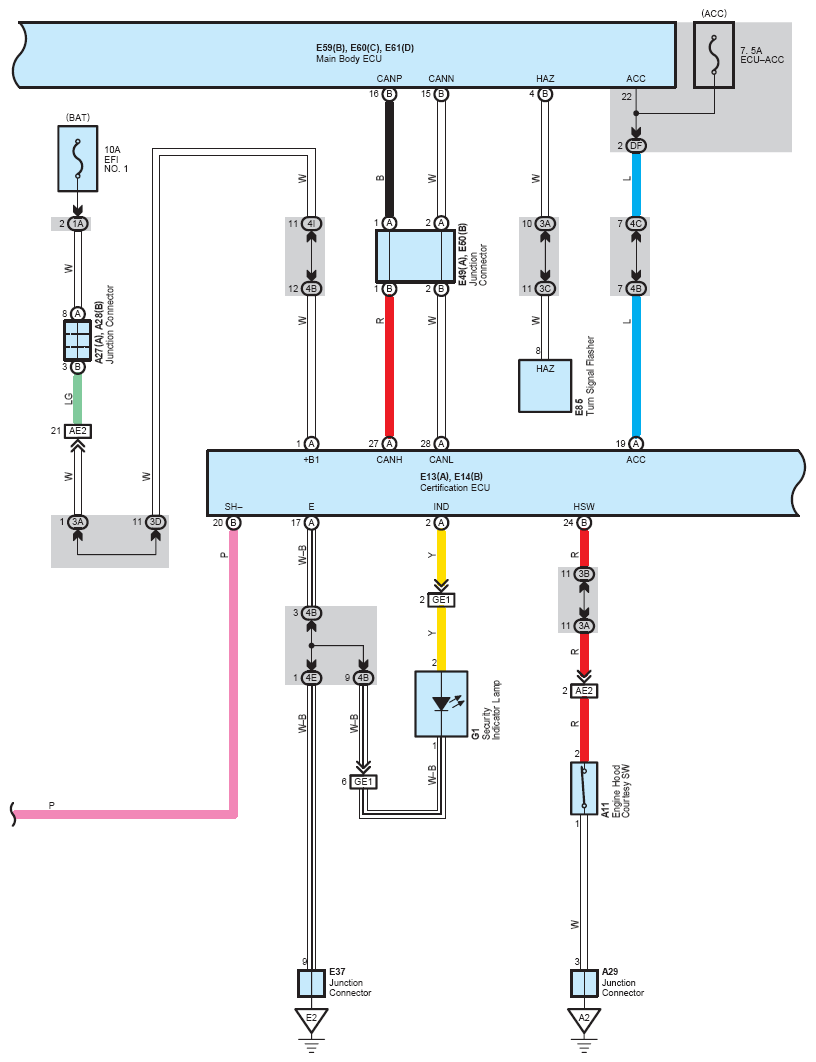

Fig 8: Theft Deterrent - Circuit Diagram (8 Of 9)

G07625162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

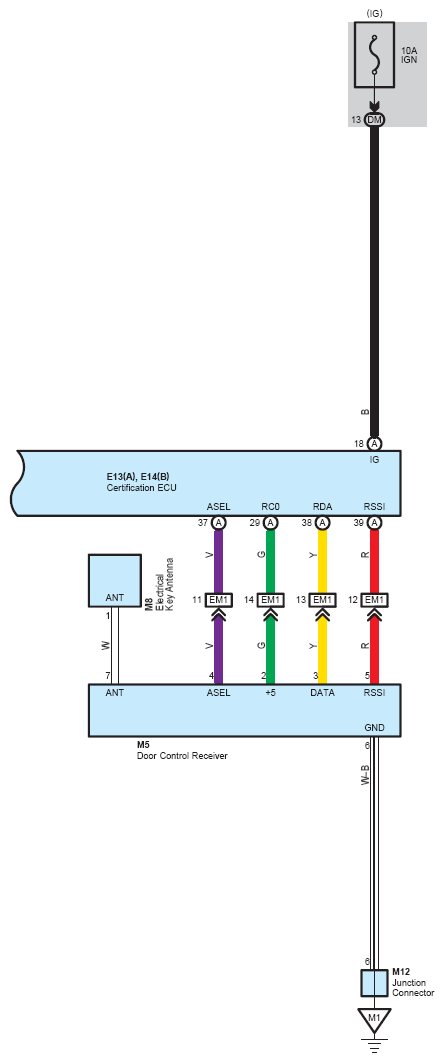

Fig 9: Theft Deterrent - Circuit Diagram (9 Of 9)

G07625163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
